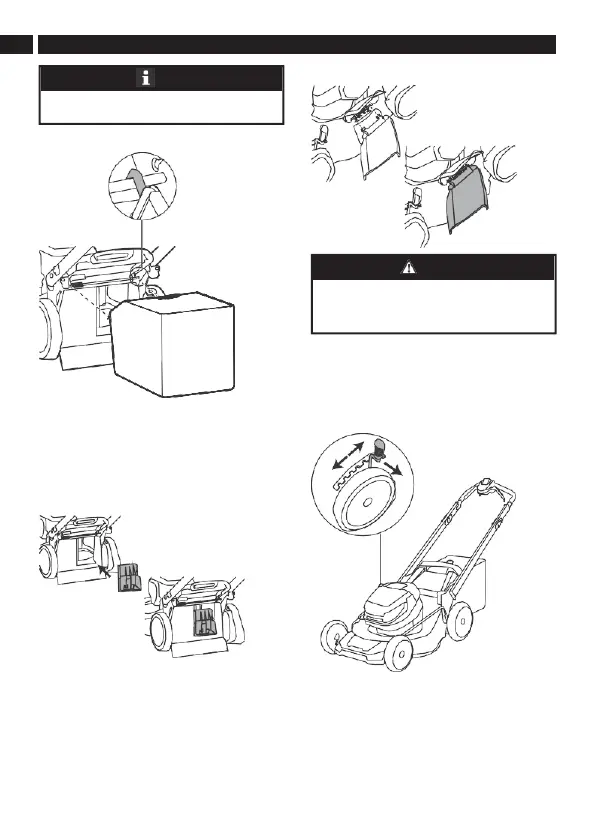

7.4 INSTALL THE GRASS CATCHER
1. Remove the mulch plug.
2. Remove the side discharge chute.
3. Open the rear discharge flap and hold it.
4. Hold the the grass catcher by its handle and
engage the hooks on the door rod.
5. Close the rear discharge flap.
7.5 INSTALL THE MULCH PLUG
1. Remove the grass catcher.
2. Open the rear discharge flap and hold it.
3. Hold the mulch plug by its handle and fit it in the
discharge chute.
4. Close the rear discharge flap.
7.6 INSTALL THE SIDE DISCHARGE CHUTE
1. Open the side discharge flap and hold it.
2. Line up the recesses of the side discharge chute
below the pivot.
3. Close the side discharge flap.
7.7 SET THE CUTTING HEIGHT
The machine can be set to different cutting height.
1. Pull the height adjustment lever rearward to
increase the cutting height.
2. Pull the height adjustment lever forward to
decrease the cutting height.
When you use the side discharge chute,
• Do not install the grass catcher.
• Keep the mulch plug installed.
Make sure that the two handle pins are in the same
position.
