GreenWorks MO80L06 - Exploded View

EN
English
16

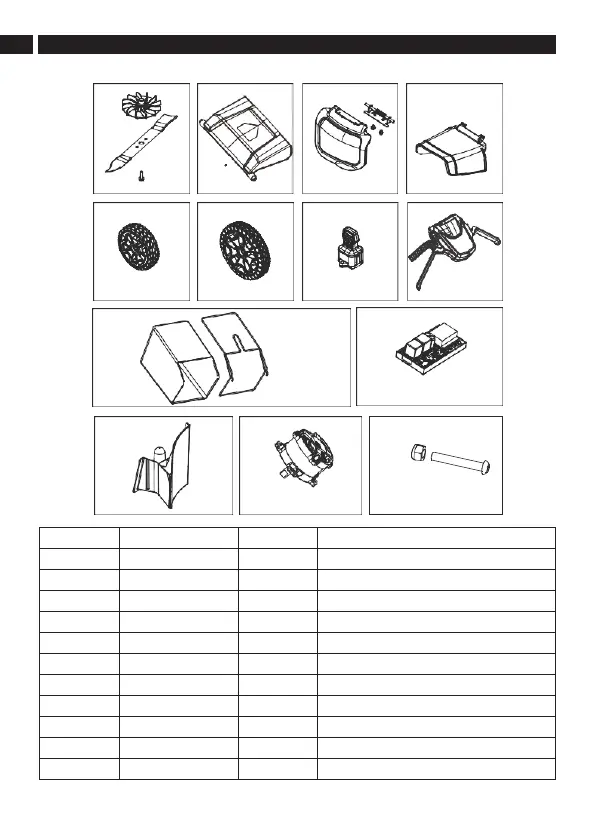

13 EXPLODED VIEW
No.
Part No.
Qty.
Description
1
R0202444-00
1
Blade assembly kit
2
RB341251179A
1
Rear discharge door
3
R0200227-00
1
Side discharge cover kit
4
RB341241179C
1
Side discharge chute
5
RB341281179A
2
8" front wheel assembly
6
R0200744-00
2
10" rear wheel assembly
7
R0201552-00
1
Safety key
8
R0202452-00
1
Upper control assembly
9
R0201921-00
1
Grass catcher assembly
10
R0202453-00
1
Power control board
11
R0200068-00
1
Mulch plug kit
