INSTALLATION CONTINUED
INSTALLATION MERLIN MS65MYQ/MS105MYQ/MS125MYQ
Cable entry
Run the wire back to the operator CONTROL PANEL. Run the cable
up along the door track and across to the rail using appropriate
fixings (not supplied). Ensure the cable does not interfere with the
door movement or hardware.
Run the cable through the rubber gland located on the top of the
operator, above the control panel.
Connection
The photoelectric sensor is supplied prewired to a quick connect
plug. Using a small flat blade screwdriver, loosen the screws on the
quick connect plug, and remove the cables from the plug.
The plug is not needed.

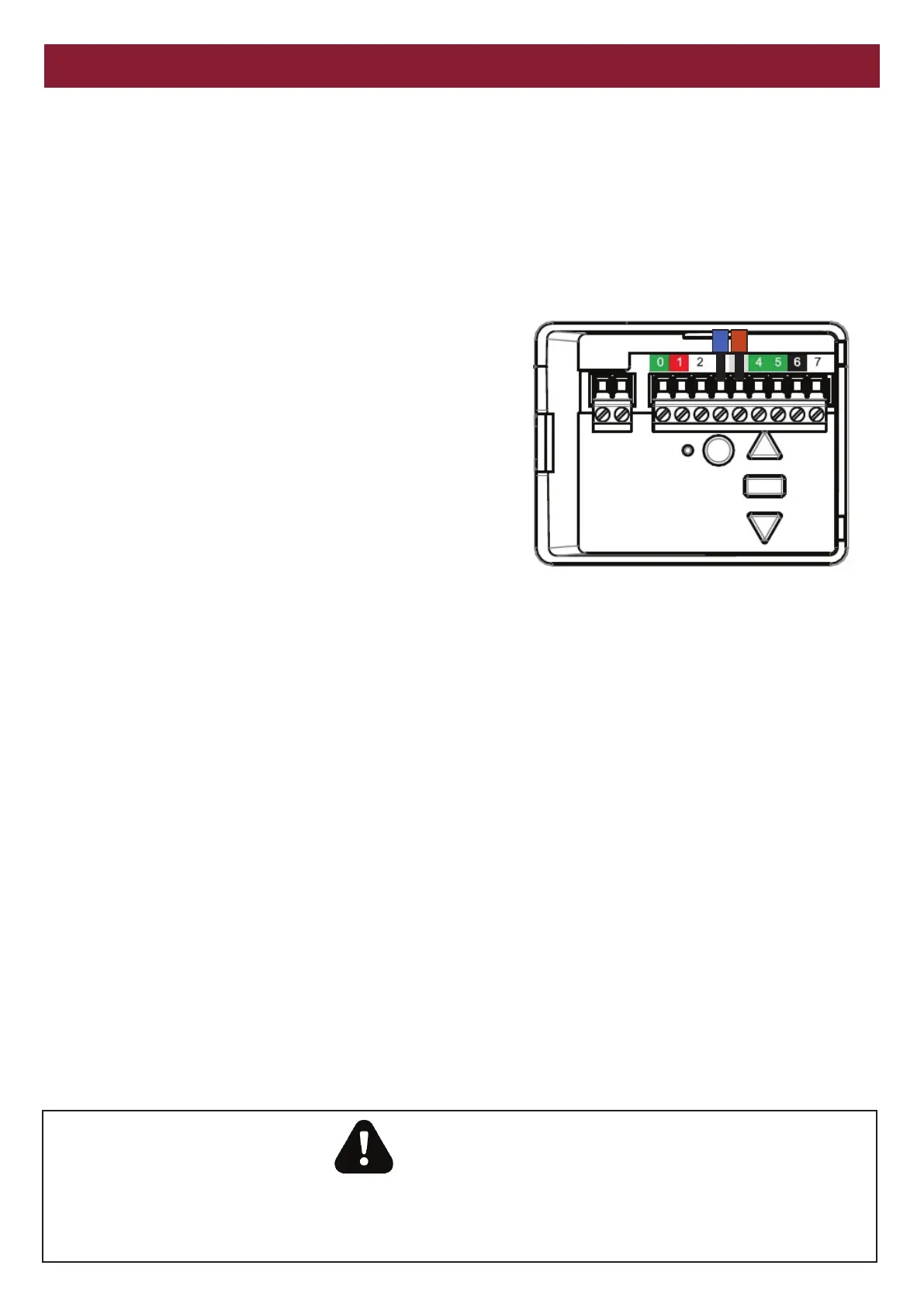

As this product is polarity sensitive, ensure the Brown wire is
terminated into terminal number 3, and the blue wire is terminated
into either of the terminals labelled number 2.
TO REMOVE AND ERASE MONITORED ENTRAPMENT
PROTECTION DEVICES
Remove the BBU connector and power down the operator. Power
the operator up for three seconds.
Remove power for three seconds.
Repeat three times, leaving power on the third time.
Brown Blue
WARNING
Only one set of GPS15’s can be installed.
If two sets of safety beams are required, then install GPS772’s or 774ANZ’s
