Grill Chef 12120 - Assembly

23
M6X15
4PCS
16.
17.
18.
22

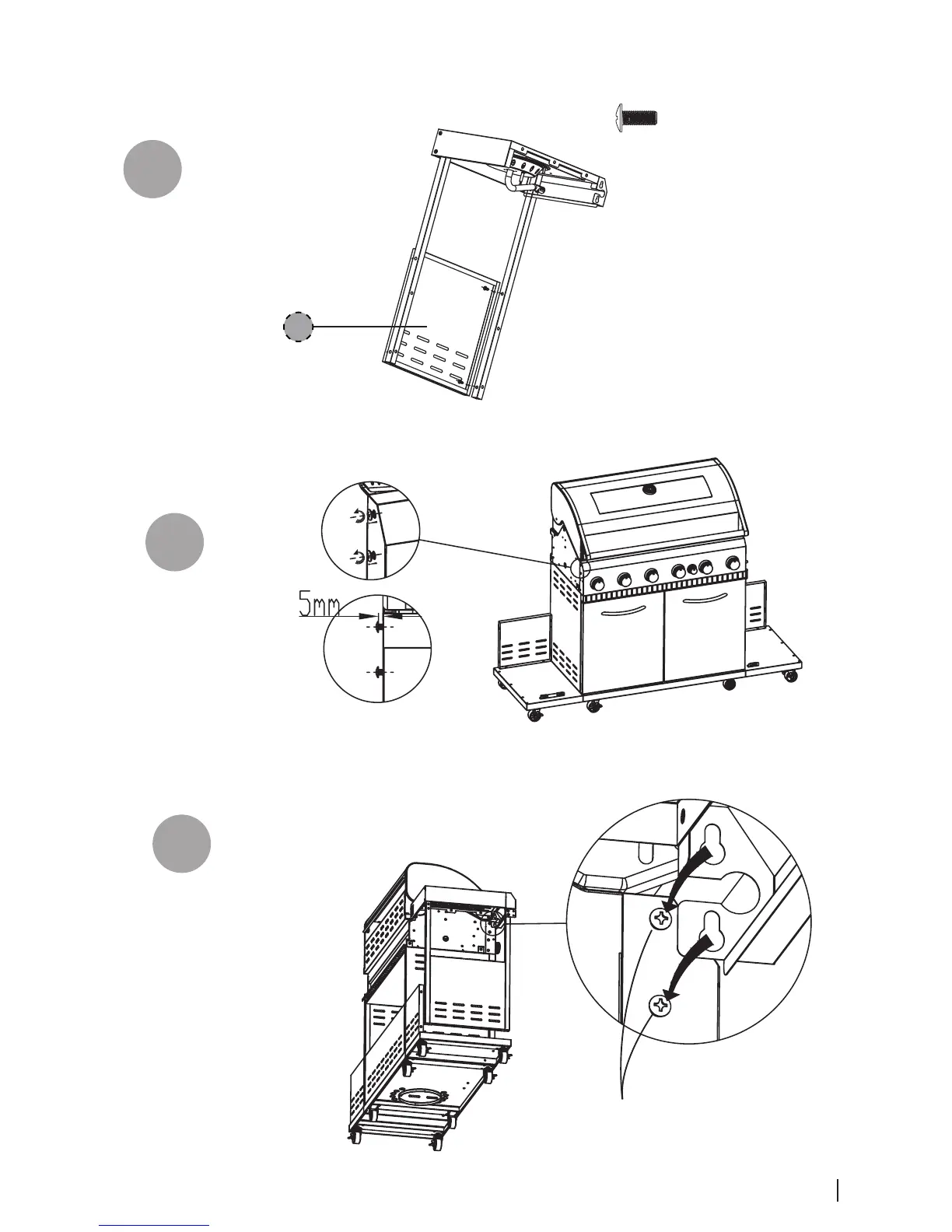

Loosen the 2 pcs of M6 X 15 which have been
inserted into the Body Assembly to allow the
Side Table to attach to the side.
Slide the Side table over the screw heads
into the enlarged holes down to align with the
Body Assembly.
