Grill Chef 12120 - Operational Elements

5
A
B
2 pt Phillips Screwdriver
Tools Required
M6 x 15 M5 x 10 M4 x 12 Ø6 x 45
Wrench
M6
Ø15 x 11
AAA Battery
x 68 x 6 x 1 x 4
x 1
x 4
x 8
x 1
Hardware Contents
+ –

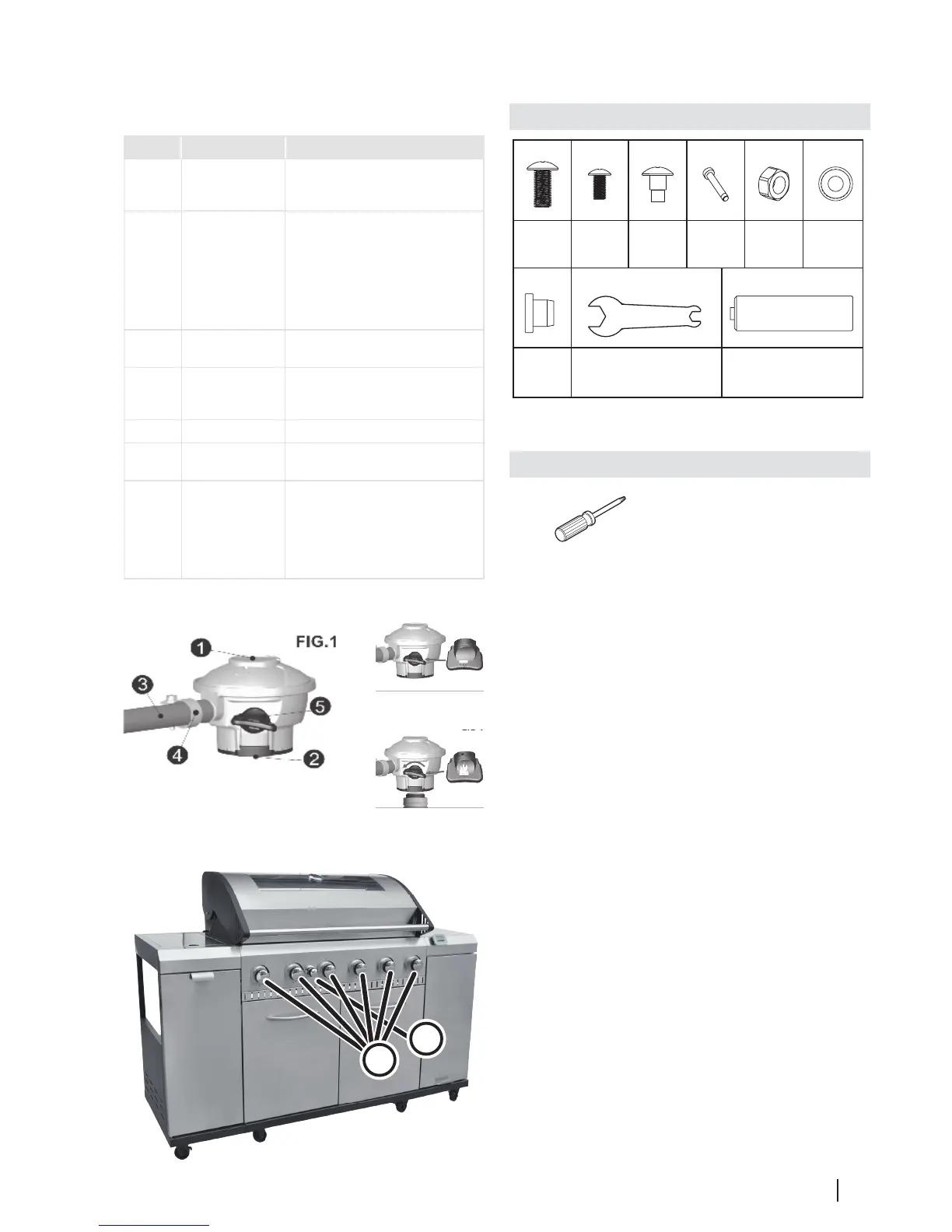

Operational elements
Item * Designation Function
A Integra-
ted Piezo
ignition
Ignite the gas that flows
into the burner when the
flame regulator is open.
B Flame regu-
lator for the
grill unit
Feeds gas into the burner
on the grill unit (press,
set to "large flame"
and keep depressed).
After ignition, adjust
the heat input for each
burner side (turn).
1 Pressure
reducer
Reduce gas pressure.
2 Gas cylinder
for bottle
valve
Fuel container
3 Rubber hose Directs gas to burner
4 Proper
hose clip
Fuel container
5 Regulator
handle
Cut-off safety device
with 2 settings:
„-“ setting: Gas off /
shut off gas cylinder
„flame“: Gas is on.
Ø6
x 6
Gas o:
Gas on:
It is recommended that you only use propane gas
with your LANDMANN barbecue which is fitted with
a propane gas regulator!
