Grill Chef 12736 - Delivery Specifications; Exploded View

4
GRILLCHEF

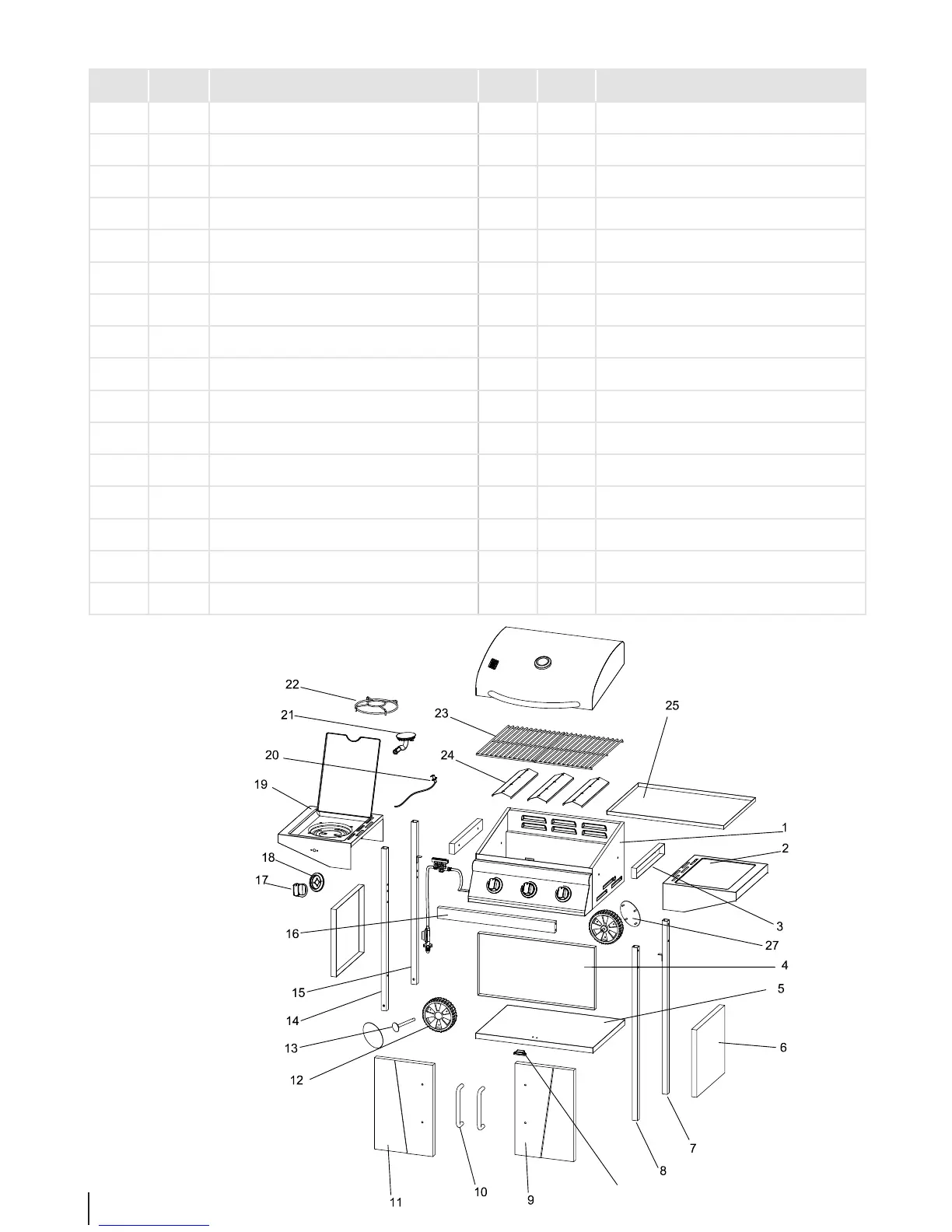

Exploded View
Delivery specications
Pos*. Qty. Description Pos.* Qty. Description
1 1 Grill unit (pre-assembled) 16 1 Door bracket
2 1 Side shelf 17 1 Knob
3 2 Car bracket 18 1 Knob base
4 1 Trolley back-side panel 19 1 Side burner shelf
5 1 Cart bottom panel 20 1 Igniter wire
5a 1 Magnet 21 1 Side burner
6 2 Trolley side panel 22 1 Side burner rack
7 1 Right back leg 23 2 Cooking grid
8 1 Right front leg 24 3 Flame tamer
9 1 Right door 25 1 Grease tray
10 2 Door handle 27 2 Wheel cap
11 1 Left Door A 44 Bolt M6x10
12 2 Wheel C 6 Bolt M4x10
13 2 Wheel axle D 2 Bolt M3x10
14 1 Left front leg E 2 Nut M3
15 1 Left back leg B 2 Clip
