Grizzly G0613/G0614 User Manual

G0613/14 Swivel Mast Metal Cutting Bandsaw
-41-

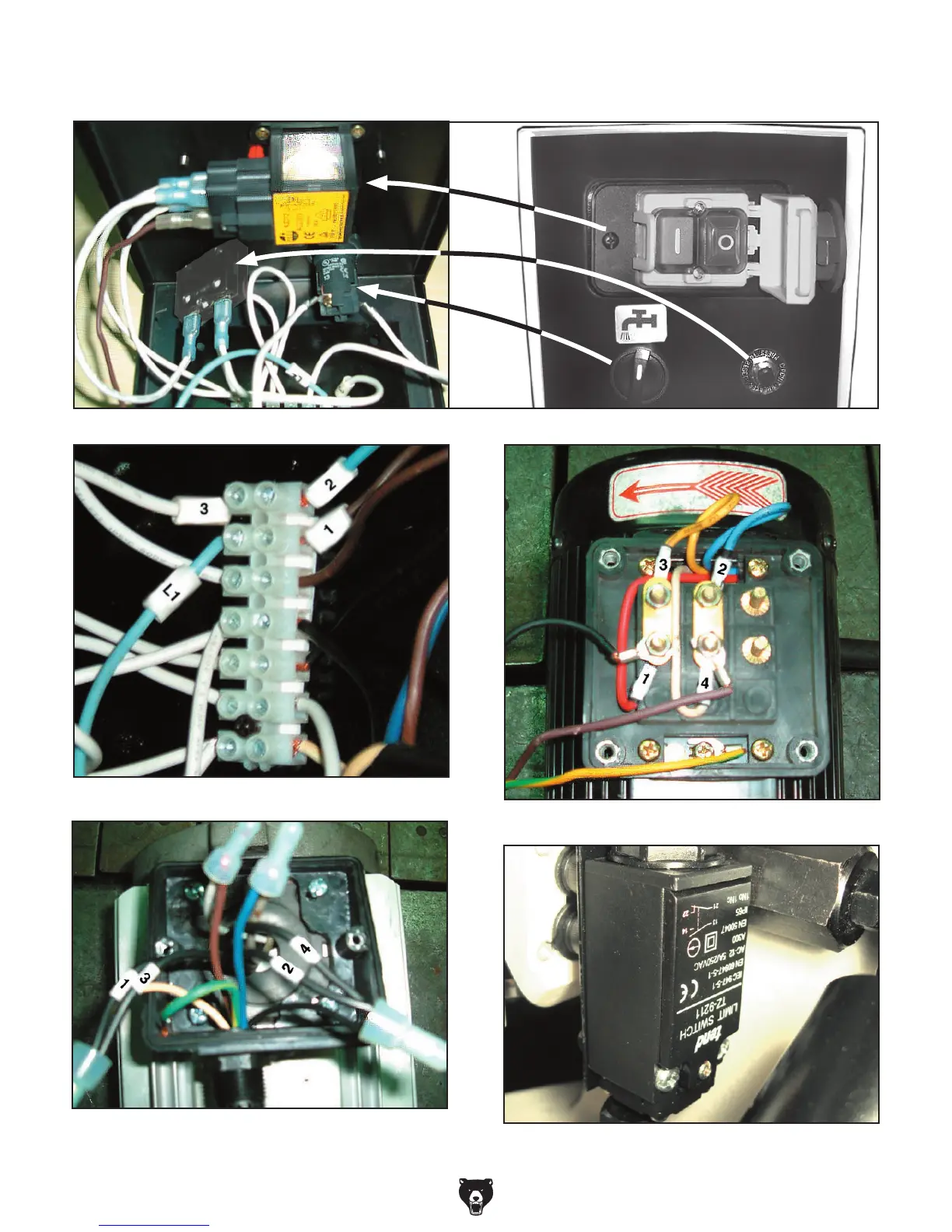

Electrical Components (G0613)
Figure 1. Pump motor wiring.
Figure 59. G0613 saw motor junction box.
Figure 58. G0613 main electrical box junction.
Figure 60. G0613 pump motor junction box.
Figure 61. G0613 blade stop limit switch.
Figure 57. G0613 control panel wiring.
