-18-
Model G0708 (Mfd. Since 1/15)
19. Using the fasteners already in the cabinet
and doors, install the doors, then receivers,
and adjust the receivers so the doors slightly
compress the foam seal when closed (Figure
14).

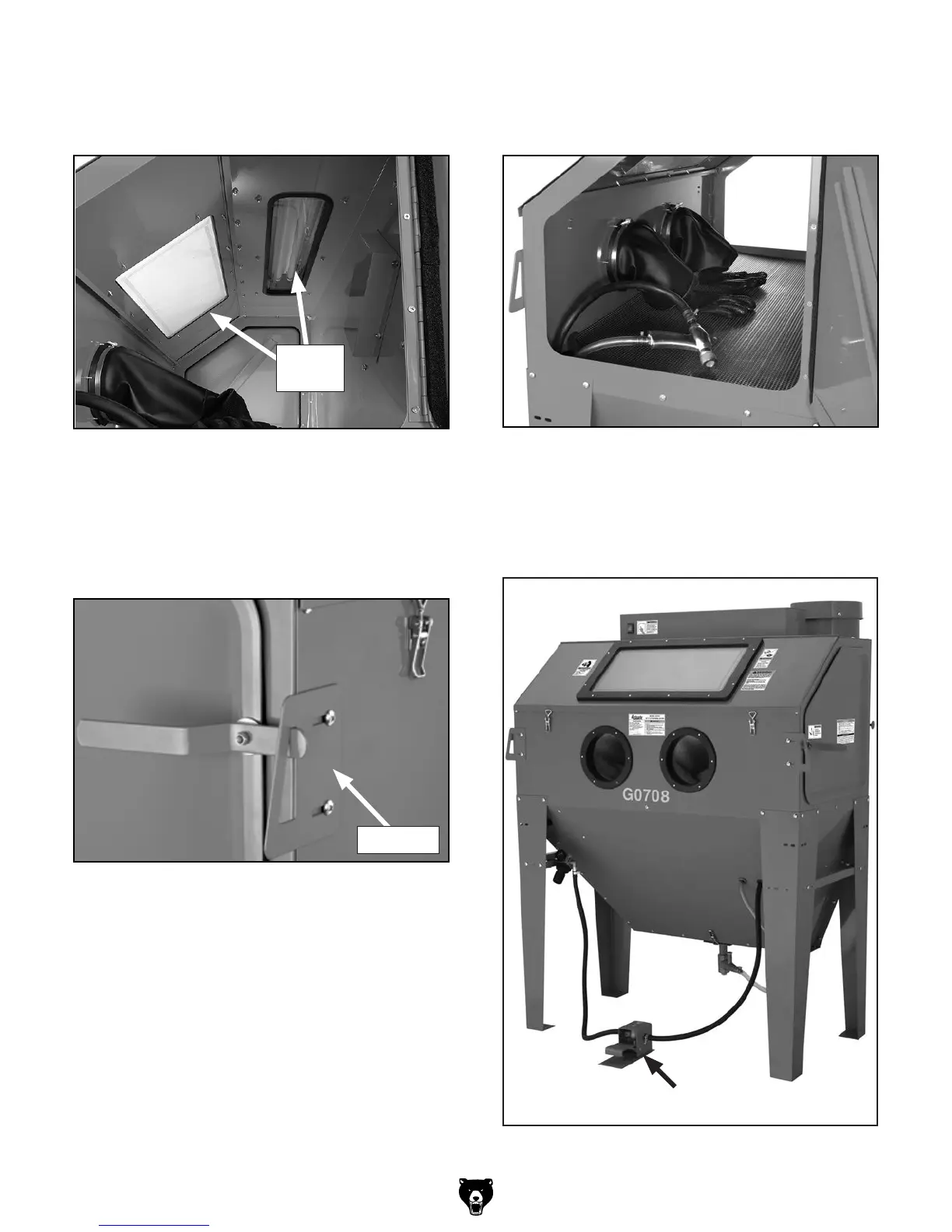

Figure 14. Door latched closed.
20.
Lift the work table up, and route the blasting
gun and hoses to the right-front side of the
work table (Figure 15).
Figure 15. Work table and blast gun positioning.
Figure 13. Viewing window and lamp window.
18.
Verify that a plastic dust sheet is affixed to
the inside of the cabinet viewing window and
the lamp window (Figure 13).
Figure 16. Foot pedal positioning.
21. Position the foot pedal (Figure 16) between
the legs where it will be convenient to use.
The pedal may also be fastened to the floor if
the unit will not be moved.
Dust
Sheets
Receiver
