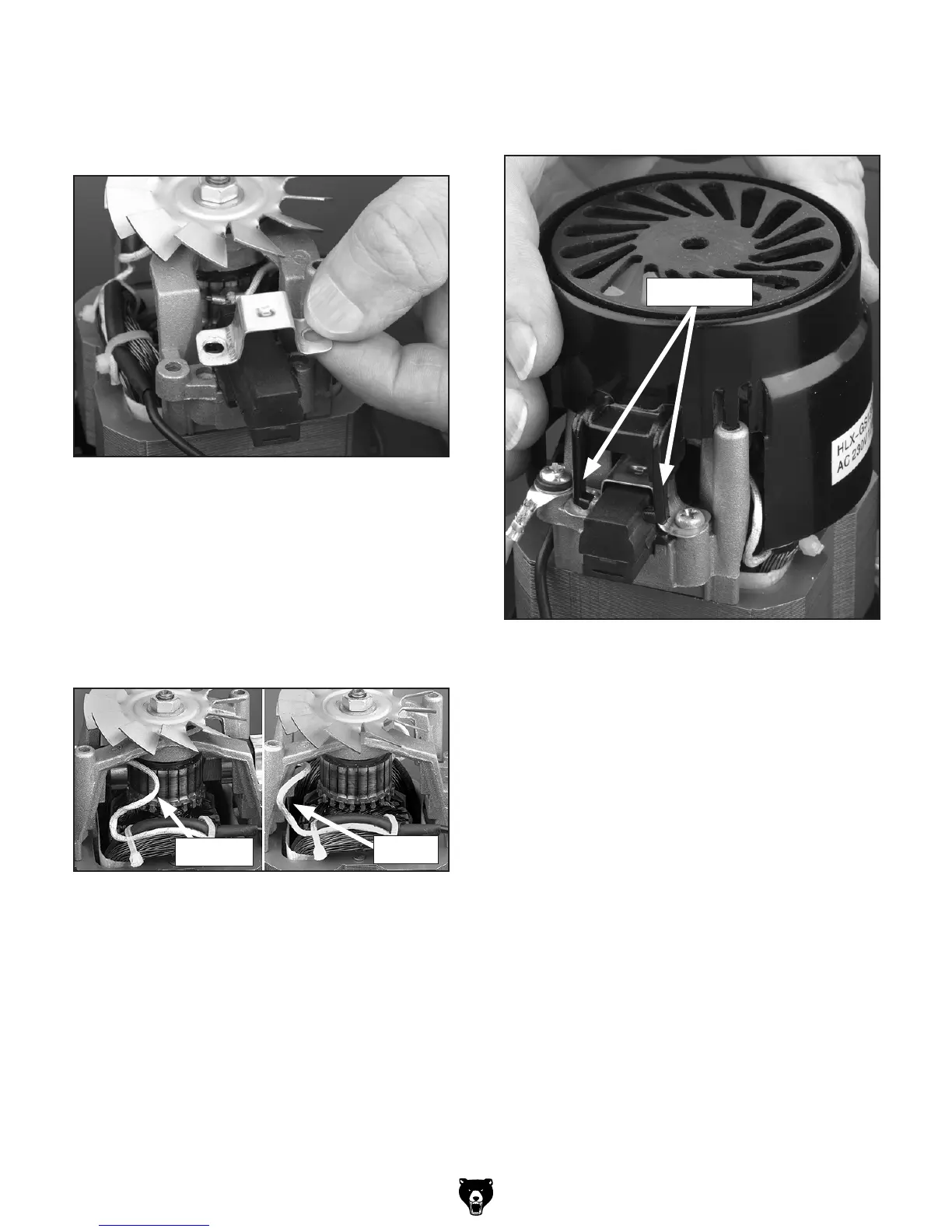

Figure 39. Brush retainer installation.
12.
Install and tighten the brush housing retaining
screws.
13.
When the brush housings are installed, make
sure to route the brush power wires well away
from the commutator, as shown in Figure
40, or the commutator will wear into the wire,
causing an electrical short.
Figure 41. Fan cover installation.
14.
Place the fan cover back onto the motor so
the lock tangs lock onto the brush housings,
as shown in Figure 41.
15.
Route the motor cover and the dust collector
assembly into the canister, and latch the dust
collector in place.
16.
Test the dust collector operation.
11. Place the brush housing into the brush seat
on the motor, and place the retainer over the
brush housing so the lock lug drops into the
slot in the brush housing (Figure 39).
Figure 40. Safe power wire routing.
Correct
Incorrect
Lock Tangs
