Grizzly G0794 - Electrical Components & Diagram

Model G0794 (Mfd. Since 09/14)
READ ELECTRICAL SAFETY
ON PAGE 6!
-7-
Common
Ground
mm/in
zero
off/on
Digital Height Gauge
Laser
Ground
Motor 110V
ON/OFF
Switch
Motor
Junction
Box
+
LR44
Battery
Neutral
Hot
Ground
110 VAC
5-15 Plug
Laser
ON/OFF
Switch
KDC01-101
2/8A 250VDC
1
1A
S. Capacitor
125VAC
200uF
IN: 120VAC
OUT: 3VDC
TRANSFORMER
GAO YOU
Start
Capacitor
Figure 7. Start capacitor.

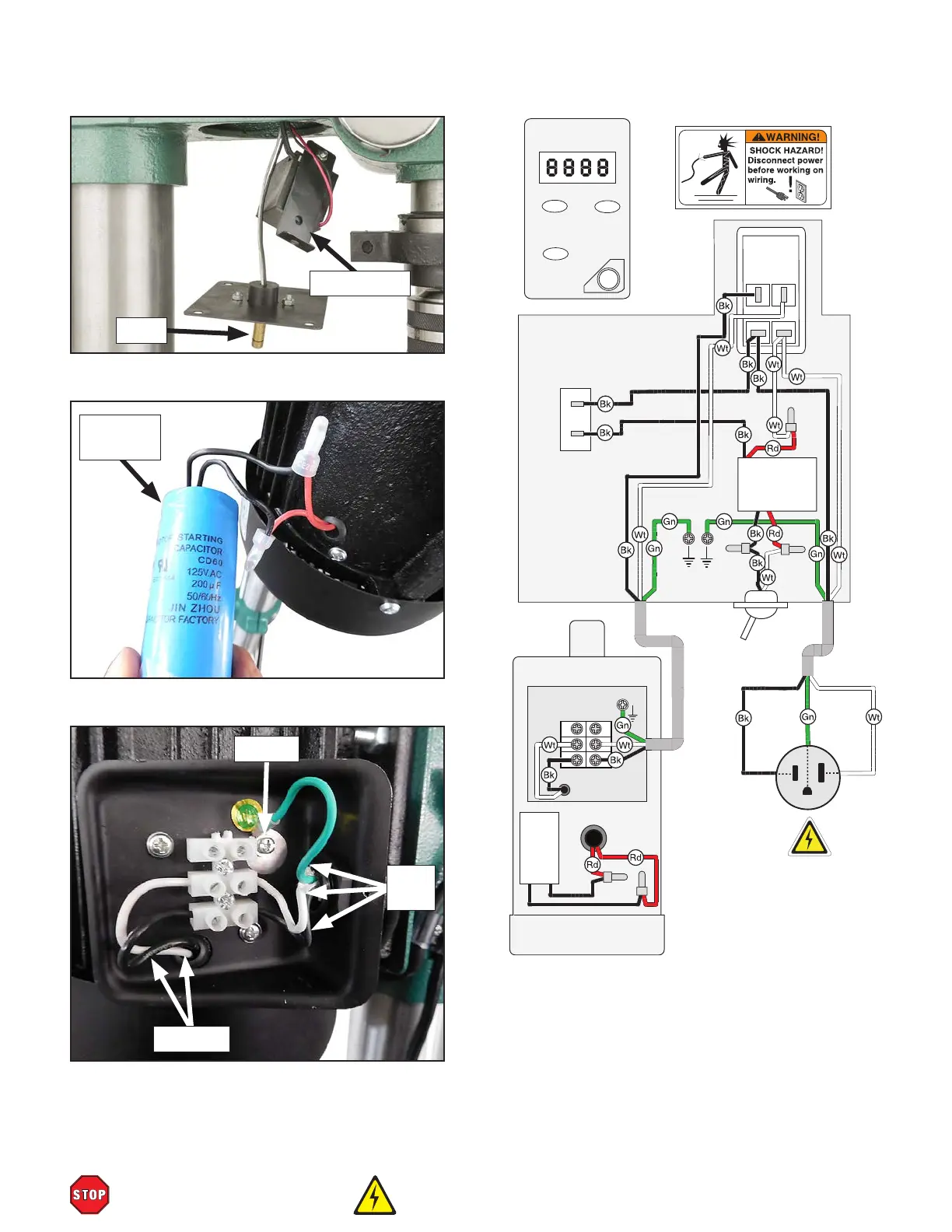

G0794 Wiring
Laser
Figure 6. Laser and transformer.
Transformer
Figure 8. Motor junction box and terminal block.
Ground
To Motor
From
Plug
