Model G0855/G0856 (Mfd. Since 02/19)
-5-
I. Outfeed Table Lock: Tighten to secure
outfeed table position; loosen for table
adjustment.
J. Cutterhead Guard: Covers cutterhead until
workpiece pushes guard out of the way
during operation. When workpiece leaves
cutterhead, guard springs back to its starting
position.
K. Infeed Table Lock: Tighten to secure infeed
table position; loosen for table adjustment.
L. Depth-of-Cut Scale: Indicates depth of cut
(per pass).

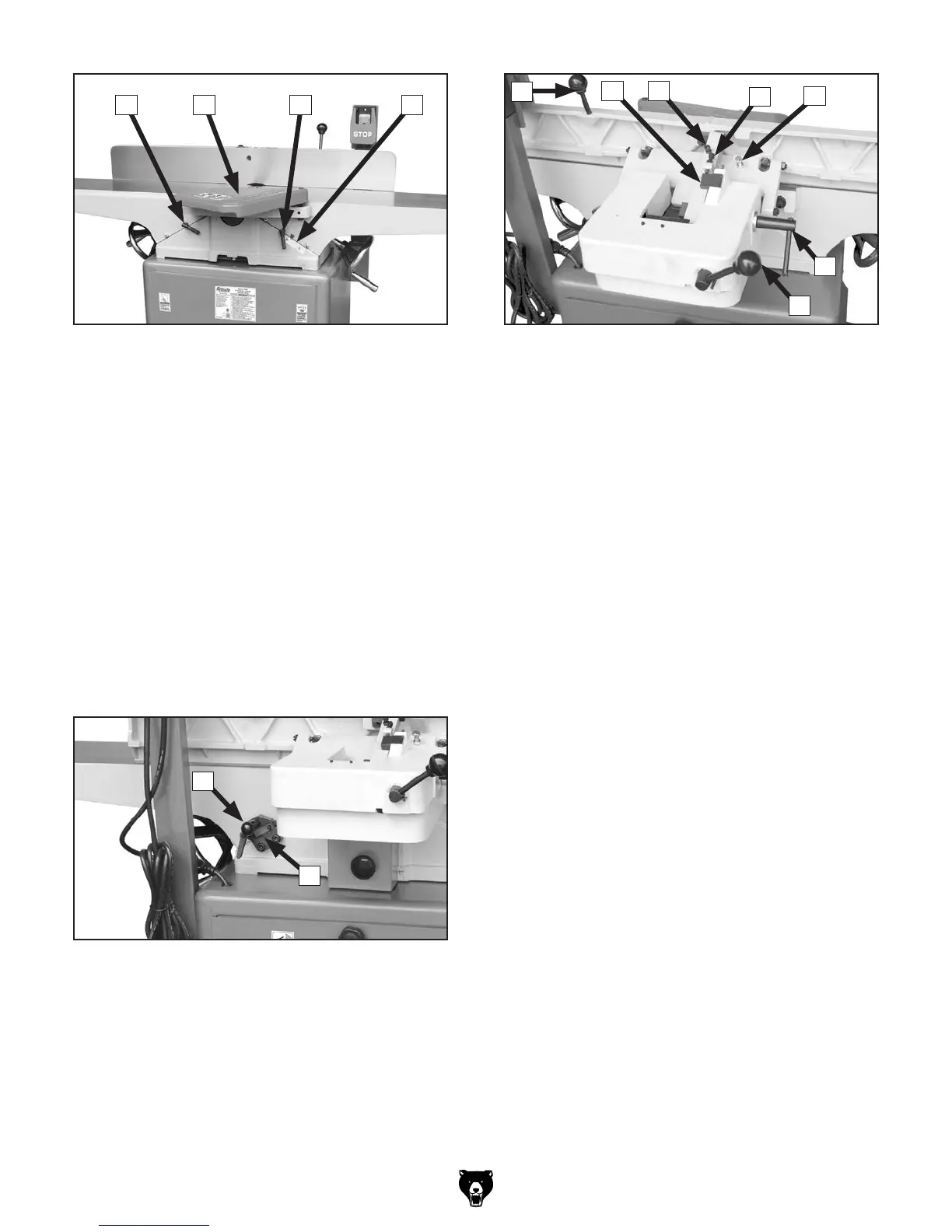

Figure 3. Table locks, cutterhead guard, and
depth-of-cut scale.
I J K L
O. Fence Tilt Handle: Use to tilt fence through-
out its range of motion from 45° inward to
45° outward (135°). (Fence tilt lock must be
loosened first.)
P. 90° Stop Block: Swivels to engage with 90°
stop bolt. When engaged, stops fence at 90°.
When disengaged, allows bevel cuts greater
than 90°.
Q. 45° Inward Fence Stop: Stops fence at 45°
inward.
R. 90° Stop Fence Stop: Stops fence at 90°.
S. 45° Outward Fence Stop: Stops fence at
45° outward (135°).
T. Fence Tilt Lock: Tighten to secure fence at
any position in available tilt range.
IMPORTANT: Always tighten tilt lock before
starting machine—even when fence is rest-
ing against stops.
U. Fence Lock Lever: Tighten to secure fence
position along width of tables; loosen for
fence adjustment.
Figure 5. Fence controls.
P
Q
R
S
T
U
O
Figure 4. Infeed table stops.
N
M
M.
1
⁄8" Infeed Table Stop Release Knob: Pull
and hold knob out to lower infeed table more
than
1
⁄8". Infeed table stop automatically sets
depth of cut at
1
⁄8".
N. Infeed Depth Stop: Use to adjust infeed
table between finish/final cuts and shaping/
heavy cuts. Also limits movement range of
infeed table.
