-46-
Model G0922 (Mfd. Since 07/20)
READ ELECTRICAL SAFETY
ON PAGE 44!
WB
17HSR4015-19B
E-Axis
Motor
WB
17HSR4015-19B
Y-Axis
Motor
WB
17HSR4015-19B
X-Axis
Motor
OMRON
SS-5GL
Y motor
X +
Fan2
Fan1
Heater1
Head1
- Z1
X motor
E motor
OMRON
SS-5GL
OMRON
SS-5GL
Y -
DC BRUSHLESS FAN
MODEL: DF40B24H
DC 24V 0.08A
FAN DC24 0.15A
C&C CHA4024SX-20B
FAN DC24 0.15A
C&C CHA4024SX-20B
Heater
Block
Z-Axis
Limit Switch
Y-Axis
Limit
Switch
X-Axis
Limit
Switch
Print
Head
Interior Rear
Enclosure Panel

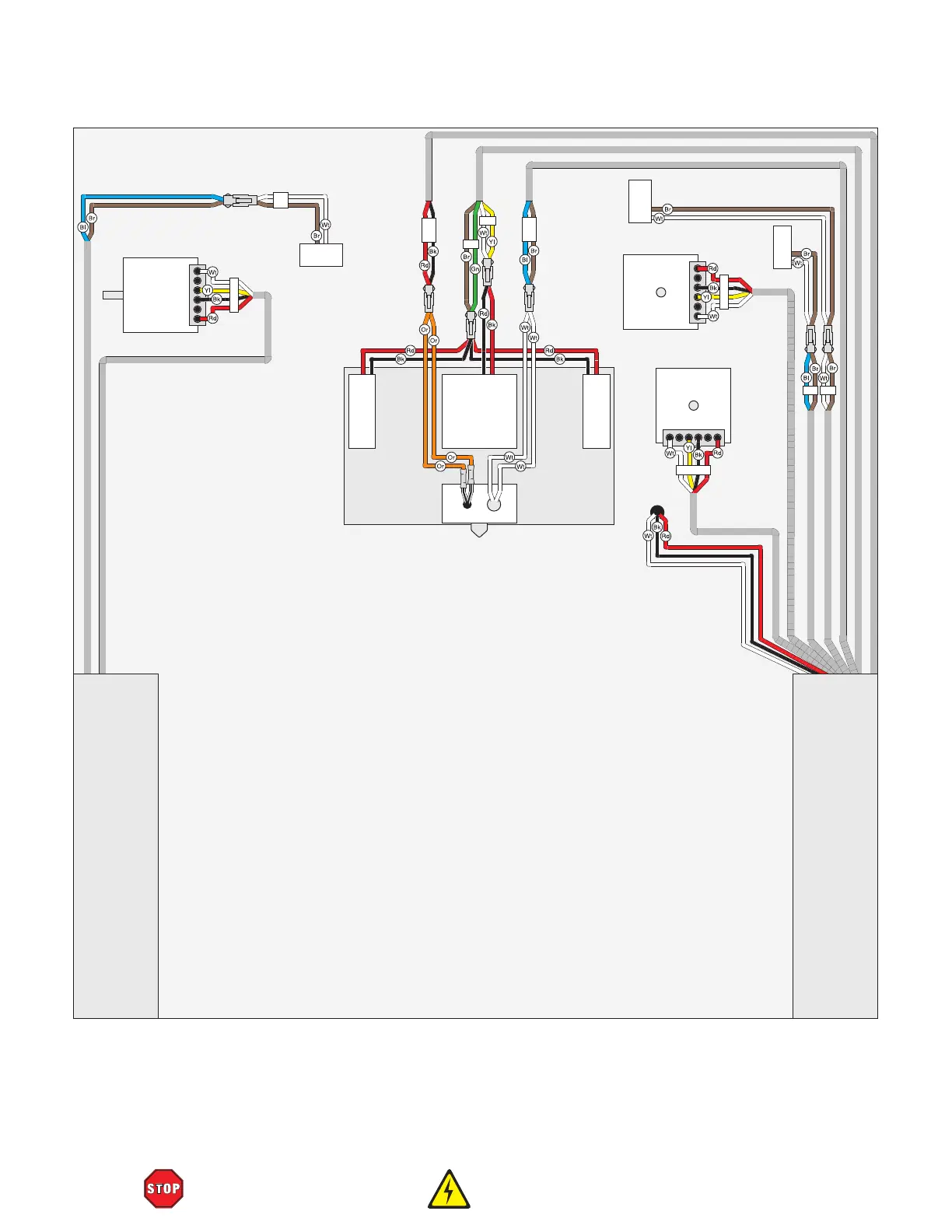

Print Enclosure Wiring Diagram
