G1017 12'' Portable Planer -11-
SECTION 5: CONTROLS
On-Off Switch
The on-off switch is located on the front of the
planer. See Figure 4. The switch has a key which,
when removed, allows the switch to be locked in
the “off” position. To access the locking feature,
push the switch to the “off” position and pull the
switch key out.

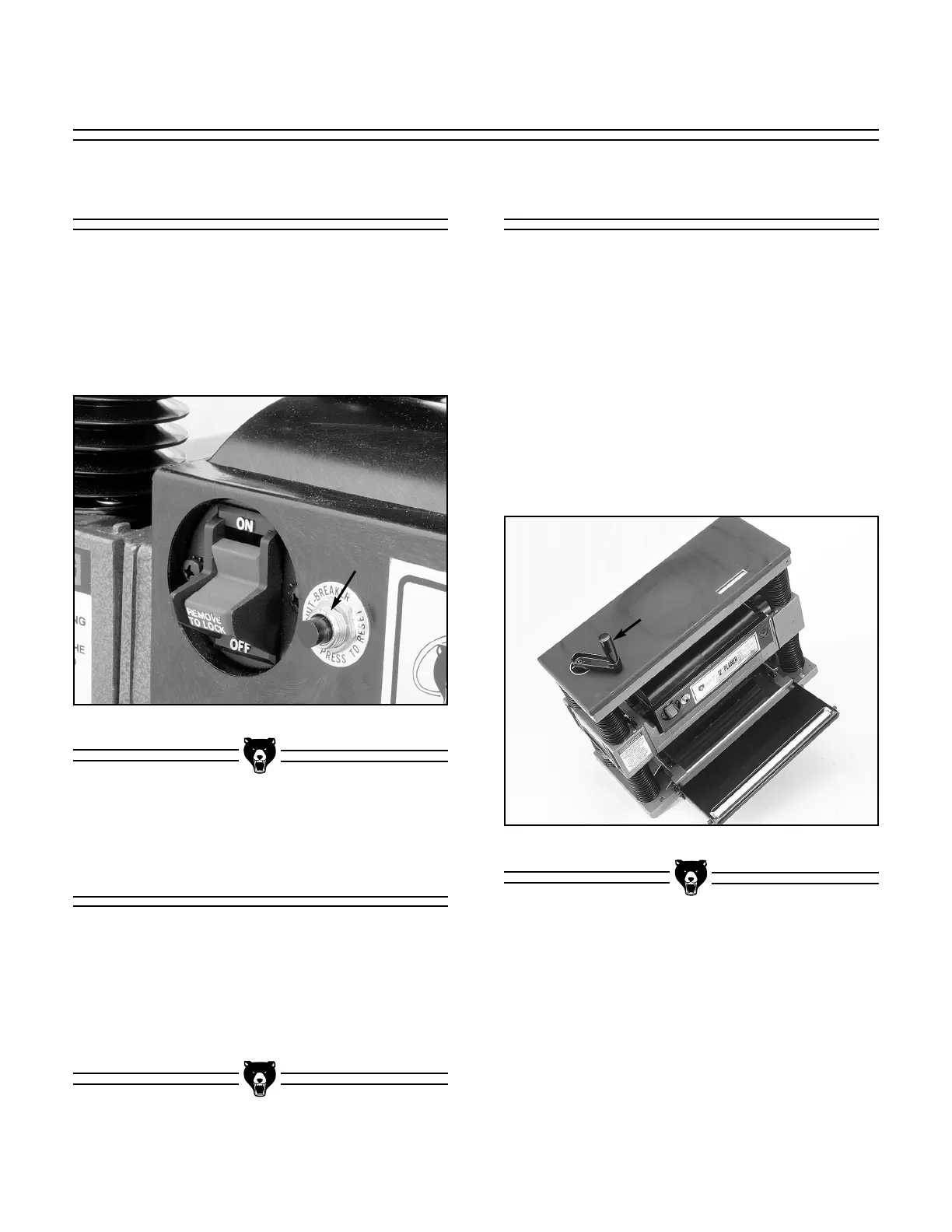

Figure 4. Location of switch and reset button.
Reset Button
The G1017 Planer comes equipped with a ther-
mal overload protection switch inside the motor.
To reset the switch, turn off the on-off switch, wait
a few seconds and then depress the reset button.
See Figure 4. If the reset button does not stay
depressed, wait longer before resetting.
Reset Button
Depth Of Cut
The planing depth is controlled by the crank han-
dle on top of the planer. To extend the handle up
for operation, pull out on the handle while folding
it up. Turning the handle clockwise raises the cut-
terhead and counter-clockwise lowers the cutter-
head. See Figure 5. Depth of cut is read directly
from the inch/millimeter scale located on the top,
right side of the planer. The minimum reading is
1
⁄16'' (1 mm). One complete turn of the handle rais-
es or lowers the cutterhead approximately
1
⁄16''
(1mm). The range of material thickness that can
be planed is
1
⁄4'' - 5'' (5mm - 127mm).
Figure 5. Depth of cut adjustment handle.
