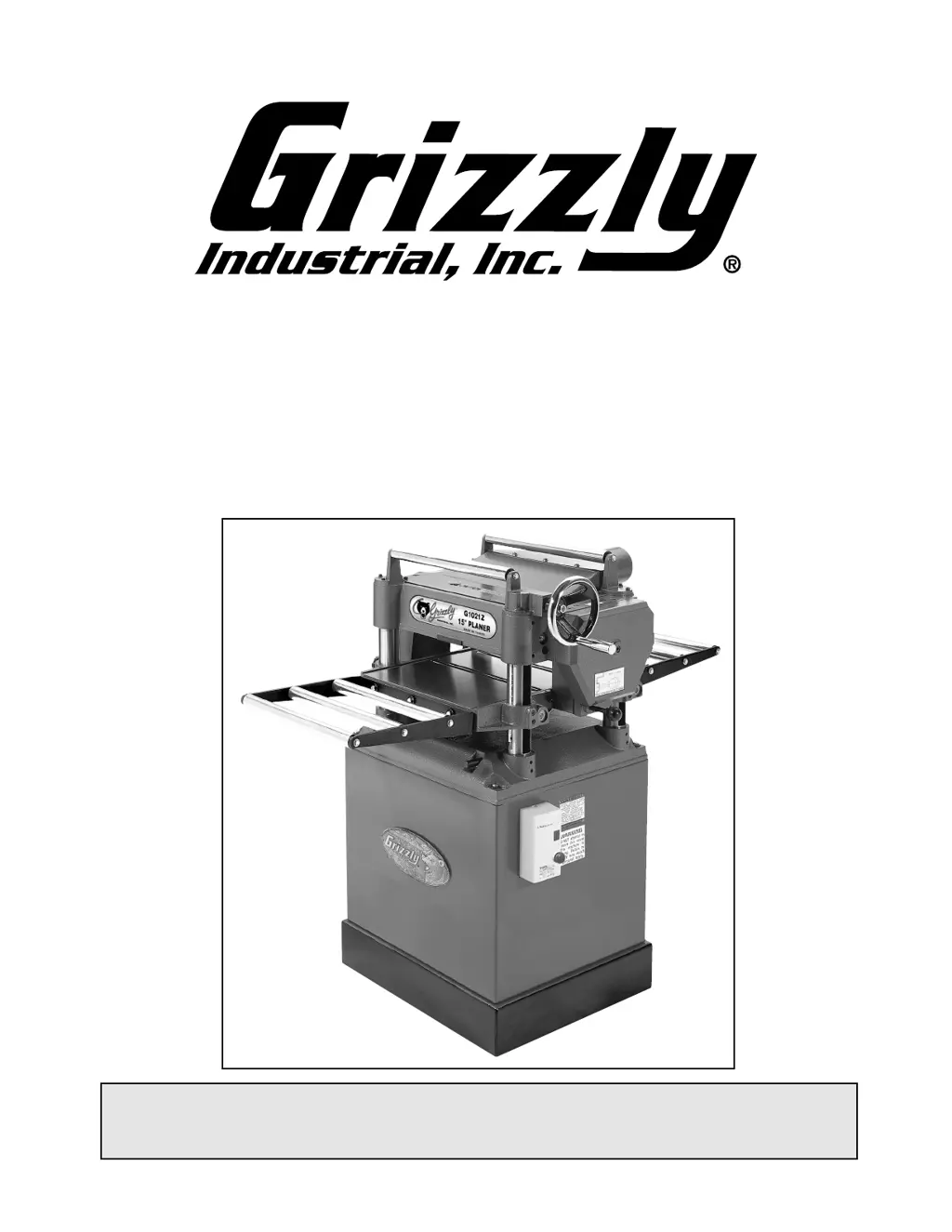

15" PLANER
MODEL G1021Z
INSTRUCTION MANUAL
COPYRIGHT ©2000 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
JANUARY, 2000 PRINTED IN U.S.A.

Table of Contents

Other manuals for Grizzly G1021Z

Preview: Parts List
Parts List8 pages

Questions and Answers

  • O
    omannAug 18, 2025
    What to do if my Grizzly Planer motor stalls and blows fuses?
    • B
      Brittany CampbellAug 19, 2025
      If your Grizzly Planer motor stalls, resulting in blown fuses or a tripped circuit, the possible causes are: a short circuit in the motor or loose connections, low voltage, incorrect fuses or circuit breakers in the power line, or the motor is overloaded. To resolve this: Inspect the connections on the motor for loose or shorted terminals or worn insulation. Correct any low voltage conditions. Install the correct fuses or circuit breakers. Reduce the load on the motor.
  • J
    Jennifer GuerreroAug 21, 2025
    Why does my Grizzly G1021Z motor overheat?
    • J
      Jonathan RayAug 21, 2025
      Your Grizzly Planer motor may overheat due to being overloaded or restricted air circulation. Reduce the load on the motor. Clean the motor to allow normal air circulation.
  • S
    Steven SmithAug 23, 2025
    What to do if my Grizzly Planer machine is loud when cutting, overheats, or bogs down?
    • R
      Richard MurphyAug 23, 2025
      If your Grizzly Planer is loud when cutting and overheats or bogs down, it could be due to an excessive depth of cut or dull knives. Decrease the depth of cut and sharpen the knives.
  • J
    James StaffordAug 26, 2025
    Why is my Grizzly G1021Z machine slowing down?
    • B
      Brandon WardAug 26, 2025
      If your Grizzly Planer slows down during operation, it could be because the feed rate is too high, or the depth of cut is too great. Try feeding the workpiece slower or reducing the depth of cut.
  • B
    Brandon ParkerAug 27, 2025
    What to do if my Grizzly G1021Z Planer motor will not start?
    • J
      Jordan CruzAug 28, 2025
      If the Grizzly Planer motor will not start, the possible causes are low voltage or an open circuit in the motor or loose connections. Check the power line for proper voltage and inspect all lead connections on the motor for loose or open connections.
  • D
    Diane LesterAug 30, 2025
    What to do if my Grizzly G1021Z motor won't start and the fuses blow?
    • S
      sbakerAug 30, 2025
      If the Grizzly Planer motor will not start and the fuses or circuit breakers blow, the possible causes are: a short circuit in the line cord or plug, a short circuit in the motor or loose connections, or incorrect fuses or circuit breakers in the power line. Inspect the cord or plug for damaged insulation and shorted wires. Inspect all connections on the motor for loose or shorted terminals or worn insulation. Install correct fuses or circuit breakers.
  • C
    Catherine DavisSep 1, 2025
    Why is my Grizzly Planer making a loud, repetitious noise?
    • K
      kevinmooreSep 2, 2025
      If there's a loud, repetitious noise coming from your Grizzly Planer, it could be due to missing or loose pulley setscrews or keys, the motor fan hitting the cover, or a defective V-belt. Inspect the keys and setscrews, and replace or tighten if necessary. Tighten the fan or shim the cover. Replace the V-belt. See Maintenance.
  • V
    Virginia OrtizSep 3, 2025
    What to do if there is chip buildup on the outfeed roller of my Grizzly G1021Z Planer?
    • S
      Shaun RiosSep 3, 2025
      If you notice chip buildup on the outfeed roller of your Grizzly Planer, it's likely that chips are working their way back under the chip deflector. To fix this, lay duct tape over the mounting bolts along the outside edge to seal any possible gaps.
  • E
    Elaine OliverSep 6, 2025
    Why does my Grizzly Planer howl on startup?
    • T
      Timothy PriceSep 6, 2025
      If your Grizzly Planer howls on startup, it's likely that the chip deflector is too close to the cutterhead. Move the chip deflector back 1/8" to 1/4" from the cutterhead.
  • M
    Michael WilsonSep 8, 2025
    Why are infeed roller marks left on the workpiece by my Grizzly G1021Z Planer?
    • J
      Justin NguyenSep 8, 2025
      If infeed roller marks are left on the workpiece when using your Grizzly Planer, the depth of cut may be too shallow. Increase the depth of cut.

Summary

SAFETY

Safety Instructions For Power Tools

Essential safety guidelines for operating power tools safely.

Additional Safety Instructions For Planers

Specific safety precautions for using planer machines.

CIRCUIT REQUIREMENTS

220 V Operation

Details for connecting and operating the planer at 220V.

Grounding

Importance and procedure for grounding the equipment.

Fusing

Recommended fuse ratings for circuit protection.

Extension Cords

Guidelines for selecting and using extension cords.

GENERAL INFORMATION

Commentary

An overview and introduction to the Grizzly Model G1021Z planer.

Unpacking

Instructions and precautions for safely unpacking the machine.

Parts Inventory

List of included components and tool kit items.

Clean Up

Procedures for cleaning unpainted surfaces and handling solvents.

Site Considerations

Factors for setting up the planer in a workshop environment.

ASSEMBLY

Overview

Introduction to the minimal assembly required for the planer.

Handwheel

Instructions for mounting the handwheel for table adjustment.

Speed Change Knob

How to install the speed change knob.

Extension Rollers

Steps for mounting and leveling the infeed and outfeed extension rollers.

Dust Port

Instructions for attaching the dust collection port.

Knife Setting Jig

How to assemble the jig for setting planer knives.

ADJUSTMENTS

Overview

Introduction to the planer's adjustment controls and locations.

Gauge Block

Instructions for constructing a gauge block for adjustments.

Table Adjustment

How to check and adjust table parallelism to the cutterhead.

Knife Inspection

Procedure for inspecting the condition and setting of planer knives.

Knife Sharpening

Information on the importance and process of knife sharpening.

Knife Setting

Detailed steps for setting knives using jack screws or springs.

Chip Breaker

How to adjust the chip breaker for optimal performance.

Feed Roller Height

Steps to adjust the height of the infeed and outfeed rollers.

Feed Roller Pressure

How to adjust the pressure applied by the feed rollers.

Bed Rollers

Adjusting bed roller height to minimize snipe.

Chip Deflector

Procedure for adjusting the chip deflector's position.

Anti-Kickback

Inspection of the anti-kickback finger safety feature.

Belts

Inspecting and adjusting belt and pulley alignment.

Gearbox

Inspecting the gearbox and drive chains for proper function.

Thickness Scale

How to adjust the thickness scale for accurate measurements.

OPERATIONS

Overview

General guidelines and precautions for operating the planer.

Table Locks

How to use the table lock knobs to secure table height.

Power Feed

Understanding and controlling the two feed rates.

Handwheel

Using the handwheel to adjust workpiece thickness.

Depth Limiter

Function and use of the depth limiter for cut control.

Test Run

Procedure for performing an initial test run of the machine.

Wood Species

How different wood species affect planing ability.

Wood Characteristics

Common planing defects and their causes/solutions.

MAINTENANCE

General

Routine checks for wear and tear on the planer.

Knives

Referencing knife inspection and setting procedures.

Table

Protecting the table surface from rust and pitting.

Lubrication

Schedule and procedures for lubricating machine components.

WARRANTY AND RETURNS
