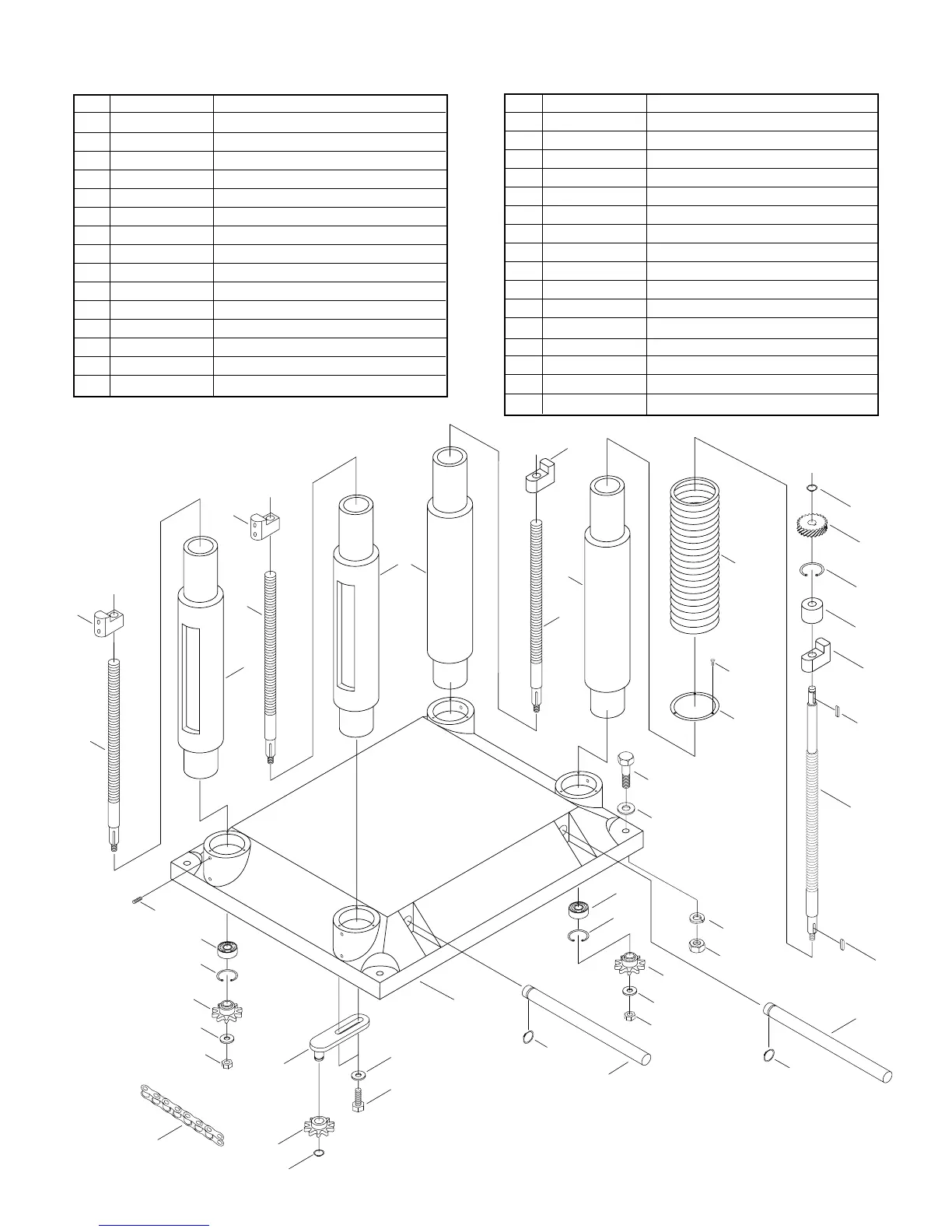

Grizzly G1033 Parts List

12
11
9
8
7
10
6
29
30
28
4
3
7
5
3
7
5
7
5
13
14
16
17
18
26
27
26
27
16
17
18
14
13
19
20
21
23
24
2
1
25
15
31
32
33
34
01 P1033301 BASE
02 PSS13M SETSCREW M10-1.5 X 12
03 P1033303 COLUMN
04 P1033304 COLUMN
05 P1033305 LEADSCREW
06 P1033306 LEADSCREW
07 P1033307 LEADSCREW NUT
08 P1033308 BUSHING
09 PR22M INT RETAINING RING 38MM
10 PK10M KEY 5 X5 X 12
11 P1033311 GEAR
12 PR03M SNAP RING 12MM
13 P6202 BALL BEARING 6202
14 PR21M SNAP RING 35MM
15 PK08M KEY 5 X 5 X 16
16 P1033316 SPROCKET
REF PART # DESCRIPTION
17 P1033317 WASHER
18 PN08M HEX NUT M10-1.25
19 PW01M FLAT WASHER 8MM
20 PB07M HEX BOLT M8-1.25 X 25
21 P1033321 BRACKET W/ SHAFT
23 P1033323 SPROCKET
24 PR05M SNAP RING 15MM
25 P1033325 CHAIN
26 P1033326 CRANE POST
27 PR08M EXT RETAINING RING 19MM
28 P1033328 PIPE BAND
29 P1033329 SCREW
30 P1033330 EXPANSION BAND
31 PB33M HEX BOLT M12-1.75 X 50
32 PW06M FLAT WASHER 12MM
33 PLW05M LOCK WASHER 12MM
34 PN09M HEX NUT M12-1.75
REF PART # DESCRIPTION

Grizzly G1033 Specifications

General

Brand	Grizzly
Model	G1033
Category	Planer
Language	English
