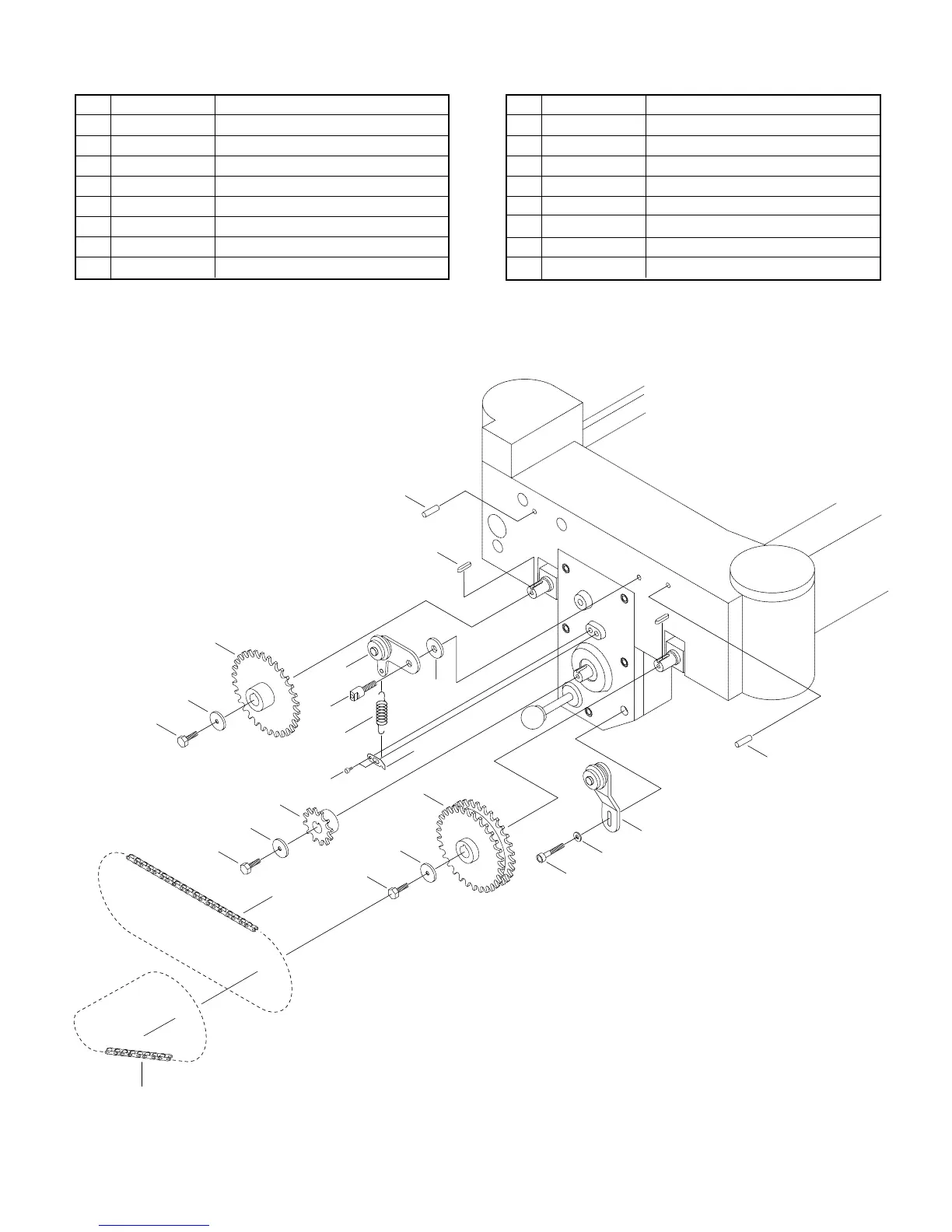

Grizzly G1033 Parts List

-H- G1033 20" Planer
REF PART # DESCRIPTION REF PART # DESCRIPTION
10 P1033103 HANGER
11 P1033104 SPRING
12 P1033105 SPACER
13 P1033106 OUTER CHAIN TENSIONER
14 P1021137 SPROCKET
15 P1033527 CHAIN 25 LINKS
16 PSB48M CAP SCREW M6-1.0 X 35
17 PW03M FLAT WASHER 6MM
18 PK21M KEY 5 X 5 X 23
01 P1021164 SPROCKET
02 P1033028 WASHER
1
/4" X
7
/8"
03 PSB18M CAP SCREW M4-0.7 X 8
04 P1021149 SPROCKET
05 PRP07M ROLL PIN 6X20
06 P1033091 CHAIN 33 LINKS
07 PSB04M CAP SCREW M6-1.0 X 10
08 P1033099 CHAIN TENSIONER
09 P1033102 SHAFT
12
8
9
11
10
7
14
2
3
3
3
2
2
16
17
13
5
5
18
1
4
6
15
