G4002/3 Gear Head Lathes -23-
Compound Gib - The gib on the compound is
adjusted by the same method as the gibs on the
cross-slide, except the screw closest to the oper-
ator (when the compound slide is aligned with the
cross slide) must be loosened and the screw fur-
thest from the operator tightened to make the gib
tighter. See Figure 26.
Figure 26. Tightening this screw tightens gib.
NOTICE
When adjusting gibs, keep in mind that the
goal of gib adjustment is to remove unneces-
sary sloppiness from the slide’s movement
without causing them to bind. Loose gibs may
cause poor finishes on the workpiece. Over
tightening may cause premature wear.
SECTION 6: ADJUSTMENTS

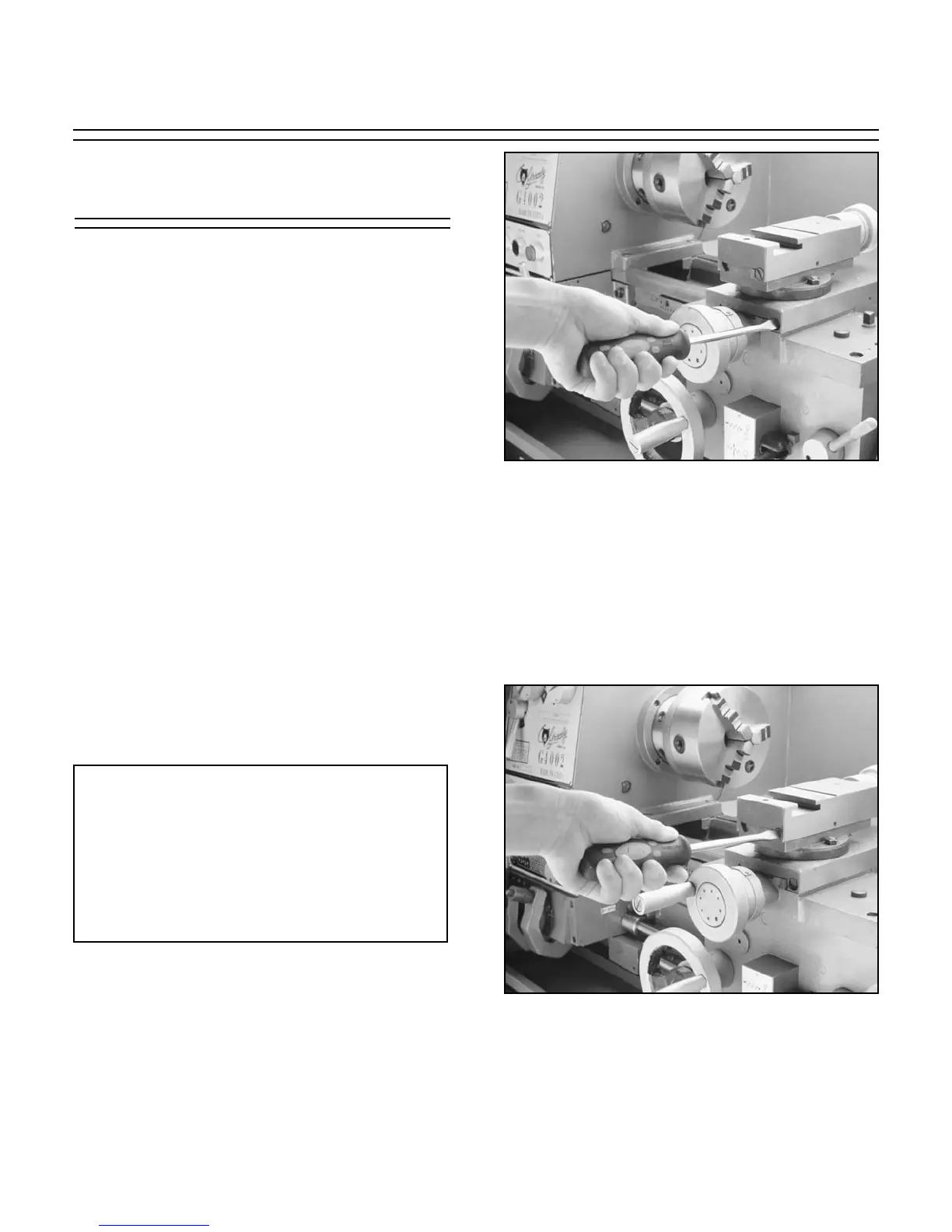

Figure 25.Adjusting the cross-slide gib.
There are three main gib adjustments for the
Model G4002/3. They are: the cross-slide gib, the
compound slide gib and the saddle gib.
Cross-slide Gib - The gib on the cross-slide is
adjusted by the two screws located at each end.
See Figure 25. To adjust, loosen the setscrew
located along the edge of the cross-slide.
This setscrew is provided for locking the slide for
certain operations. After making the adjustments
detailed below, tighten the setscrew until it just
touches the gib.
The gib is wedge shaped and by loosening the
screw closest to the operator and then tightening
the opposite screw, the slide will become looser.
Conversely, loosening the screw furthest away
from the operator and tightening the closer screw
will tighten the gib. Do not over tighten. Adjust the
gib so that it creates a slight drag when the slide
is in motion. Test the ease of motion with the gib
slightly loose. Begin tightening the gib and test
after making small adjustments. When a slight
drag is detected the gib is properly adjusted.
Gibs
