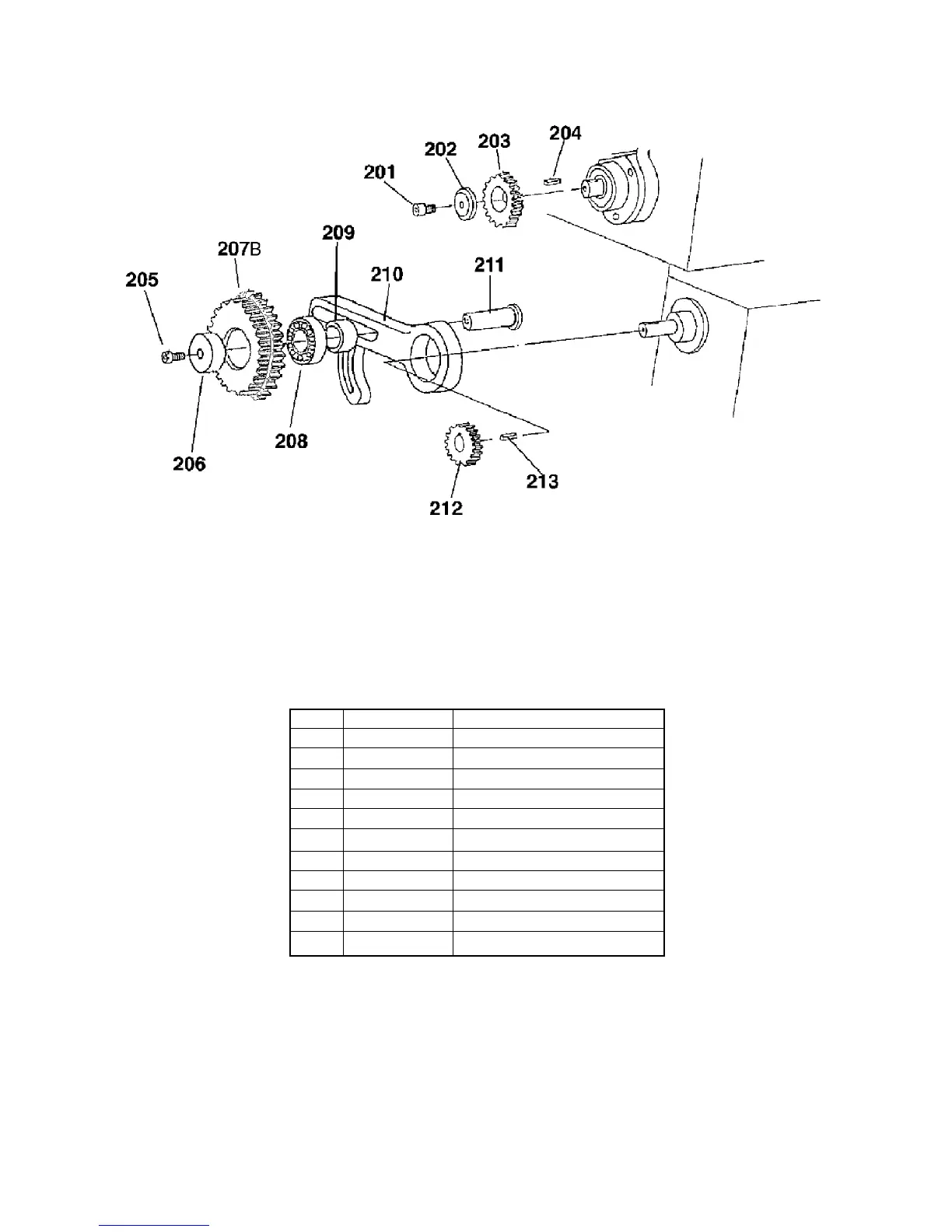

-37-G4002/3 Gear Head Lathes
REF PART # DESCRIPTION
201 PSB26M CAP SCREW M6-1 X 12
202 P4002202 WASHER
203 P4002203 GEAR
204 PK12M KEY 5 X 5 X 30
205 PSB26M CAP SCREW M6-1 X 12
206 P4002206 WASHER
207B P4002207B STEP GEAR 86-91T
208 P6202 BALL BEARING 6202
210 P4002210 QUADRANT
211 P4002211 SHAFT
212 P4002212 GEAR
213 PK12M KEY 5 X 5 X 30
