Groen BPM-15GA User Manual

12 OM-BPM-15/30/40G(C,A,C2T™) & BPP-30/40G(C,A,C2T™) Domestic
Parts List

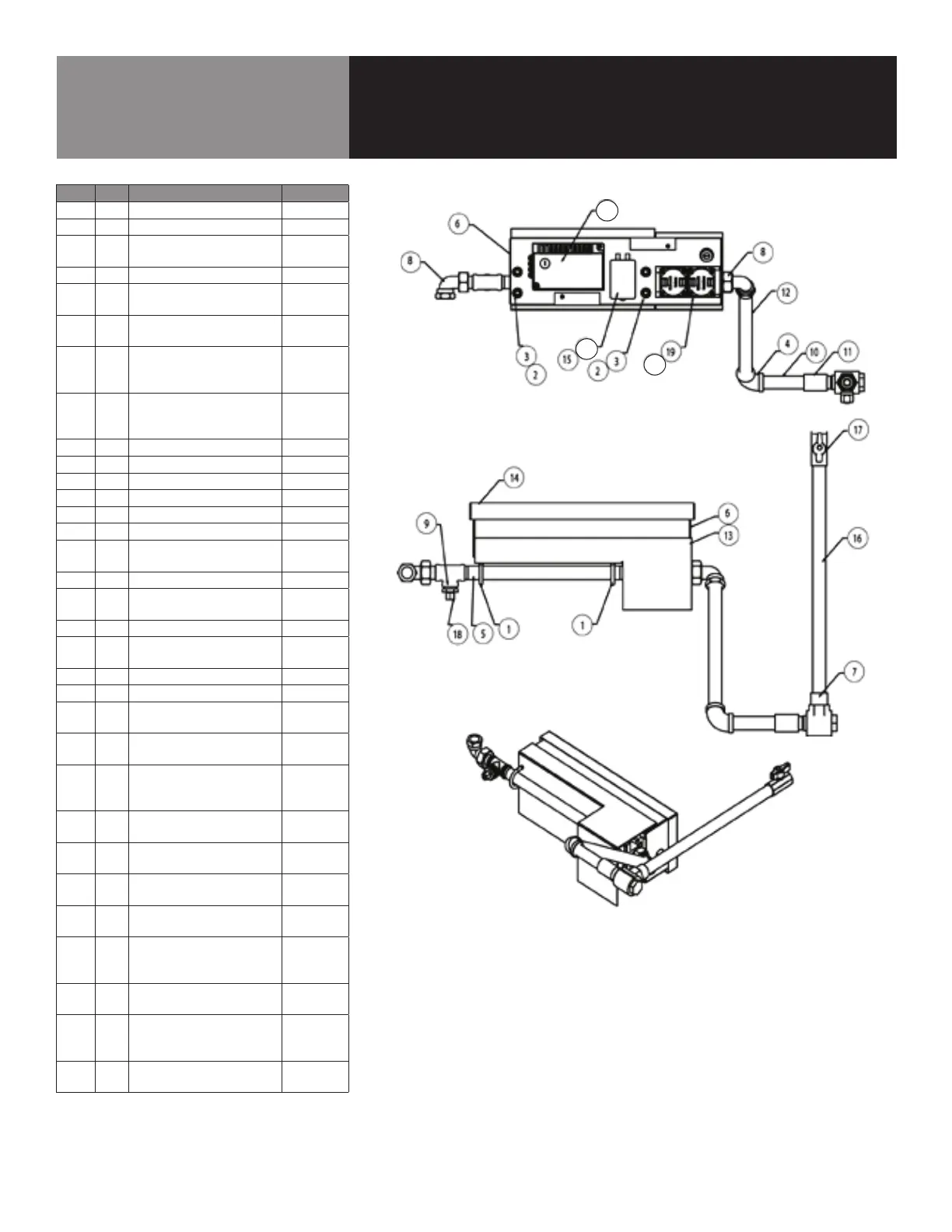

GAS PIPING ASSEMBLIES
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
Key Qty Description Part #
1 2 U BOLT 1/2” PIPE N70636
2 12 WASHER PLAIN 1/4 005472
3 12
NUT HEXAGON KEPS 1/4-20
WITH
NT1101
4 1 ELBOW 90 DEG 1/2 NPT 008747
5 1
NIPPLE 1/2 NPT X
10-1/2” (15 GAL)
003229
5 1
NIPPLE 1/2 NPT X 11” (30/40
GAL)
005673
6 1
IGNITION MODULE PLATE
ASSY
ELECTRONIC IGNITION
144777
6 1
IGNITION MODULE PLATE
ASSY
STANDING PILOT
146510
7 1 SWIVEL JOINT 1/2 NPT (GAS) 076680
8 2 UNION ELBOW 141354
9 1 TEE 1/2 NPT 008772
10 1 NIPPLE 1/2 NPT X 4 005554
11 1 COUPLING FULL 1/2 NPT 005722
12 1 NIPPLE 1/2 NPT X 10 005558
13 1
REAR RADIATION
HEAT SHIELD
146145
14 1
IGNITION MODULE COVER 146146
15 2
SCREW ROUND HEAD
MACHINE
018384
16 1 NIPPLE 1/2 NPT X 15” 048570
17 1
VALVE GAS MANUAL SHUT-
OFF 1/2
098458
18 1 CONNECTOR MALE 1/2 049429
19 1
FITTING COMPRESSION 90 004584
20 1
GROMMET 7/8” (NOT
SHOWN)
007400
21 1
SPARK IGNITION MODULE-
ELECTRONIC IGNITION ONLY
085153
22 1
GAS CONTROL VALVE-ELEC-
TRONIC IGNITION-NATURAL
GAS
098443
22 1
GAS CONTROL VALVE-ELEC-
TRONIC IGNITION-PROPANE
098444
22 1
GAS CONTROL VALVE-STAND-
ING PILOT-NATURAL GAS
002648
22 1
GAS CONTROL VALVE-STAND-
ING PILOT-PROPANE
002649
23 1
HIGH LIMIT
THERMOSTAT (GAS)
013481
x 1
ELBOW FEMALE 90 DEG ,
1/8 NPT TO 1/4 TUBE (NOT
SHOWN)
050500
x 1
TUBE, IGNITION SUPPLY TUBE,
1/4 (NOT SHOWN)
146119
x 1
1 PILOT SUPPLY TUBE, 1/4”
(STANDING PILOT) (NOT
SHOWN)
149054
x 1
PILOT SUPPLY TUBE, 1/4 (NOT
SHOWN)
146118
21
23
22
