14 OM-BPM-15/30/40E(C,A,C2T™) & BPP-30/40E(C,A,C2T™)
Parts List

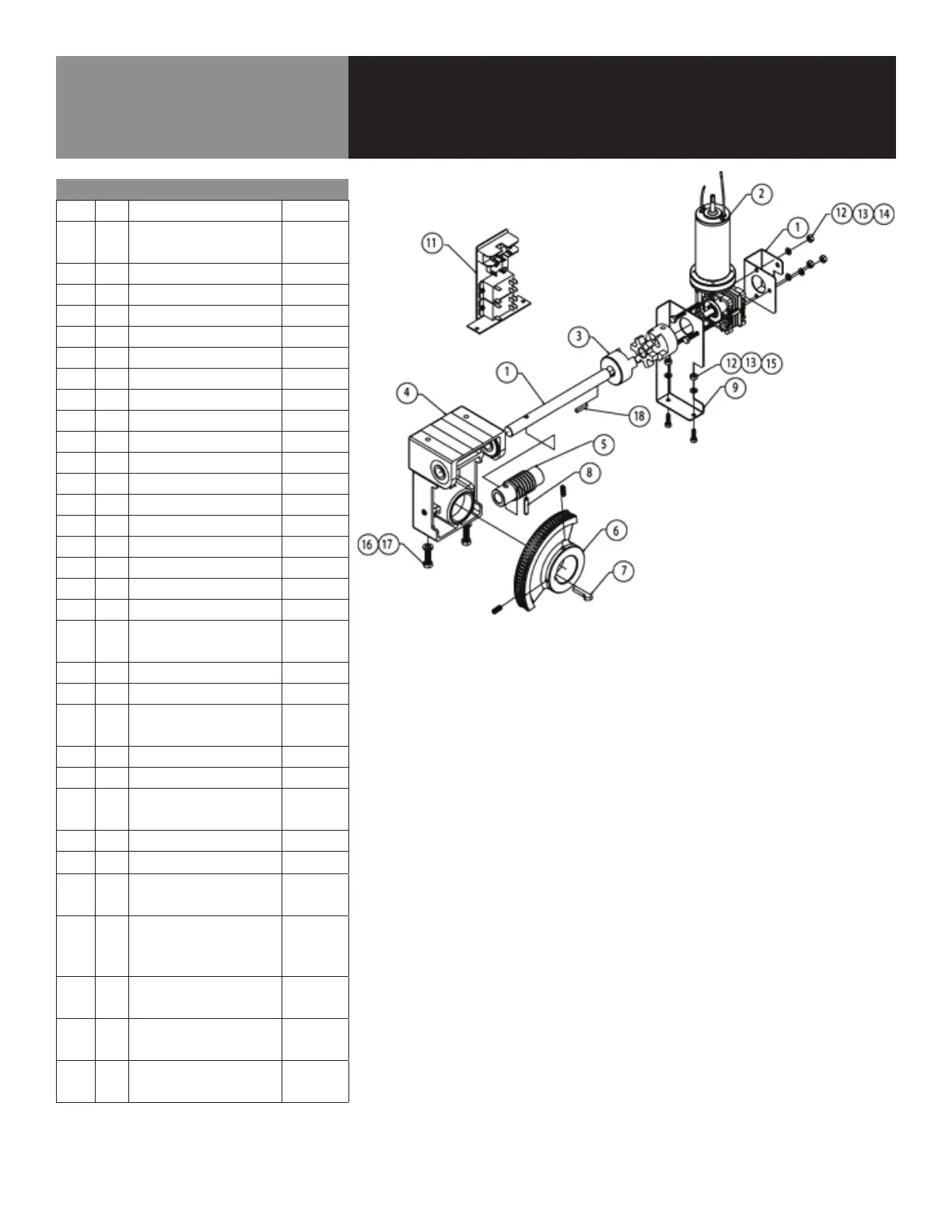

POWER TILT ASSEMBLY
CALL FACTORY FOR REPLACEMENT PARTS:
888-994-7636
Key Qty Description Part #
1 1 ELECTRIC TILT SHAFT 144791
2 1
POWER LIFT MOTOR [204/240
VOC]
144794
3 1 SHAFT COUPLING 144615
4 1 GEAR CARRIER ASSY 137880
4a 1 CARRIER GEAR 002624
4b 2 BEARING ROLLER 002790
4c 2 BEARING SLEEVE 137239
4d 1 PLUG PIPE 010286
4e 1 FITTING GREASE 90 012195
5 1 GEAR, WORM 128001
6 1 GEAR SECTOR 009829
6a 2 SCREW SET SOCKET 012060
7 1 KEY GIB 012031
8 1 PIN ROLL 012614
9 1 MOTOR BRACKET 146114
10 1 REAR MOTOR BRACKET 146117
11a 1 FUSE HOLDER [MOTOR] 077840
11b 1 FUSE 144856
11c 1 RECTIFIER 145660
11d 2
RELAY [24VAC, DPST, N0]-2
REQ’D
119814
12 5 NUT HEX HEAD 1/4”-20 005601
13 5 WASHER LOCK 1/4” 005655
14 3
SCREW HEX HEAD CAP 1/4”-
20 X 2-1/2” LONG
052584
15 2 SCREW HEX HEAD CAP 005609
16 2 WASHER LOCK 3/8” 005618
17 2
SCREW HEX HEAD CAP 3/8”-
16 X 1” LONG
005612
18 1
ELECTRIC TILT SHAFT KEY
013386
x 1 HOLE PLUG-1” 146369
x 1 MANUAL OVERRIDE CRANK 145659
x 1
POWER TILT SWITCH,
RECESSED ROCKER NO
INDICATOR
144857
x 2
TILT LIMIT SWITCH (POWER
TILT UP/DN )
002982
x 1 WIRE HARNESS,LOW VOLTAGE 146197
x 1
WIRE HARNESS-HIGH VOLT-
AGE
148769
