Procedure

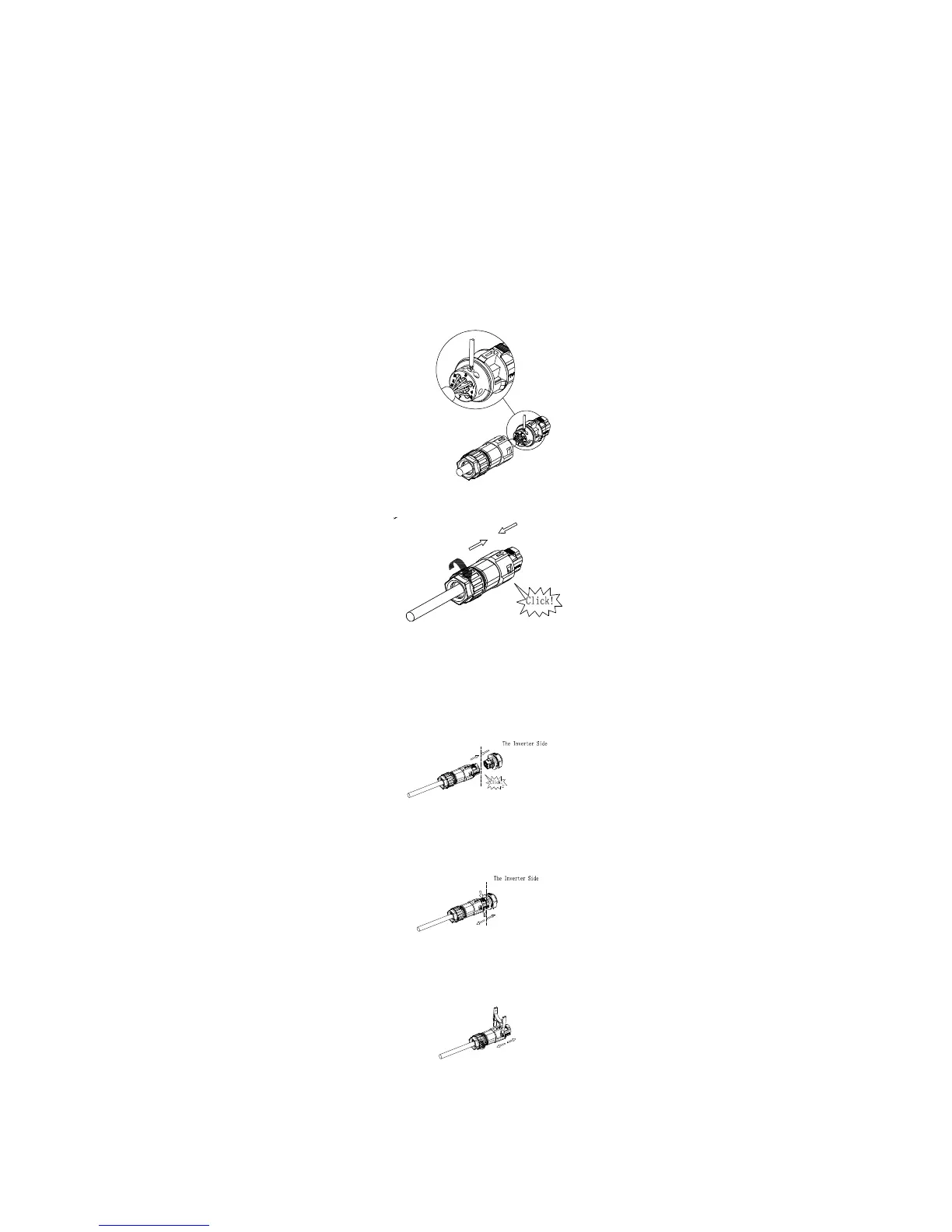

Step 1 Insert the stripped and bared cable through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to number indicates on it and tighten
the screws firmly. Please try to pull out the wire to make sure the it’s well connected.
Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the terminal.
Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the
inverter.
Uninstall signal connector
Step 1 Press the fasteners and pull it out from the inverter.
Step 2 Insert the H type tool and pull it out from the socket.
