Growatt MIN TL-X User Manual

2"
"
Method 1: Configure through the ShinePhone app.
3. When the dongle is reset, the LED indicator should be flashing red. If it is not flashing
red, please short push the reset button.

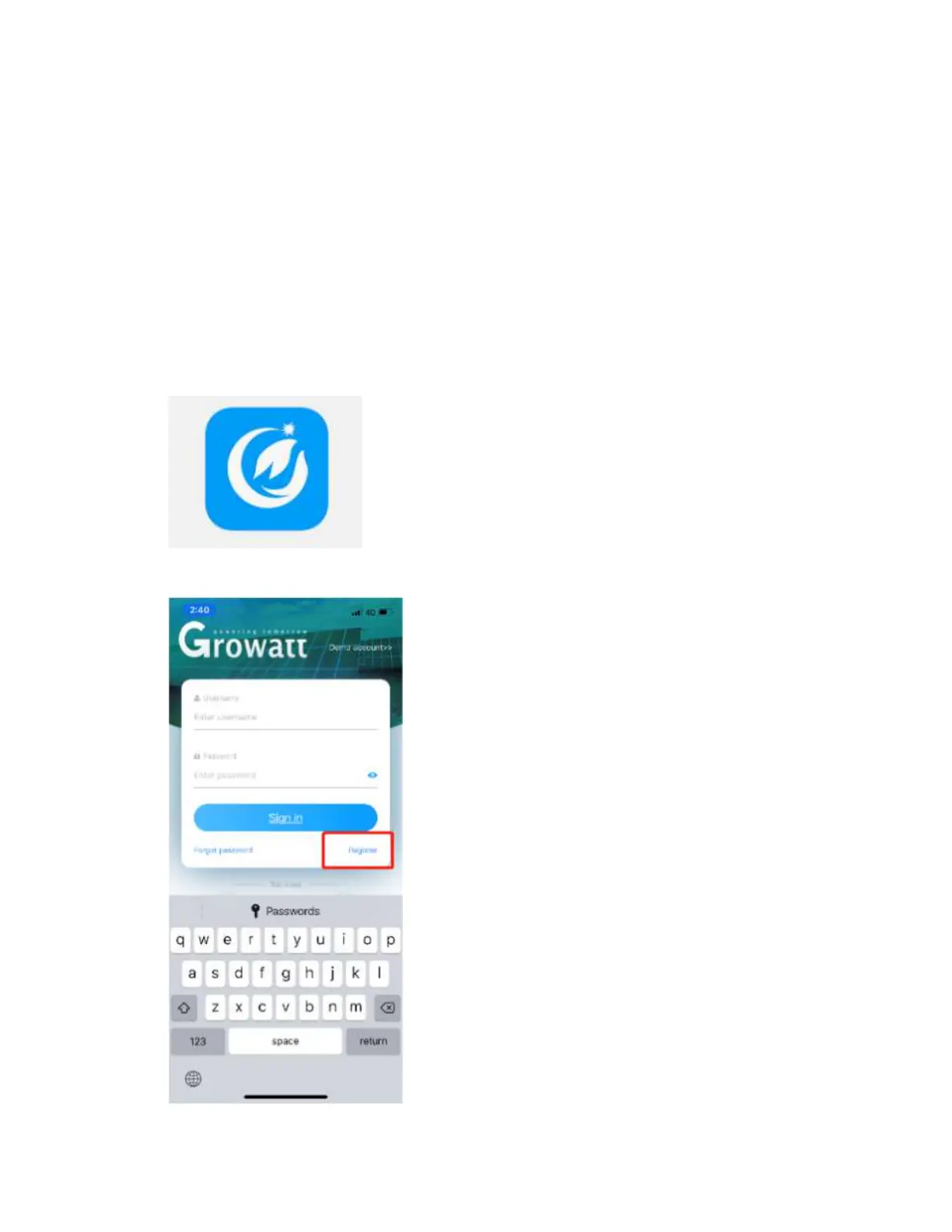

4. Download the ShinePhone app. If you are an iPhone user, you can download it from the
App Store. If you are an Android user, you can download it from the Google Play Store.
5. Open the ShienPhone app and click register on the login page.

Growatt MIN TL-X Specifications

General

Number of MPPTs	2
THDi	< 3%
Max. Efficiency	98.4%
DC Switch	Yes
Display	LCD
Protection Degree	IP65
Topology	Transformerless
Rated AC Voltage	230V
AC Voltage Range	180 V - 280 V
Power Factor	0.8 leading - 0.8 lagging
AC Grid Frequency	50 Hz / 60 Hz
Operating Temperature Range	-25°C to 60°C
Relative Humidity	0 - 100%
Communication	WiFi / GPRS
Protection	DC Reverse Polarity Protection, AC Short Circuit Protection, Overcurrent Protection, Overvoltage Protection
