Growatt MOD 11KTL3-X User Manual

14
13

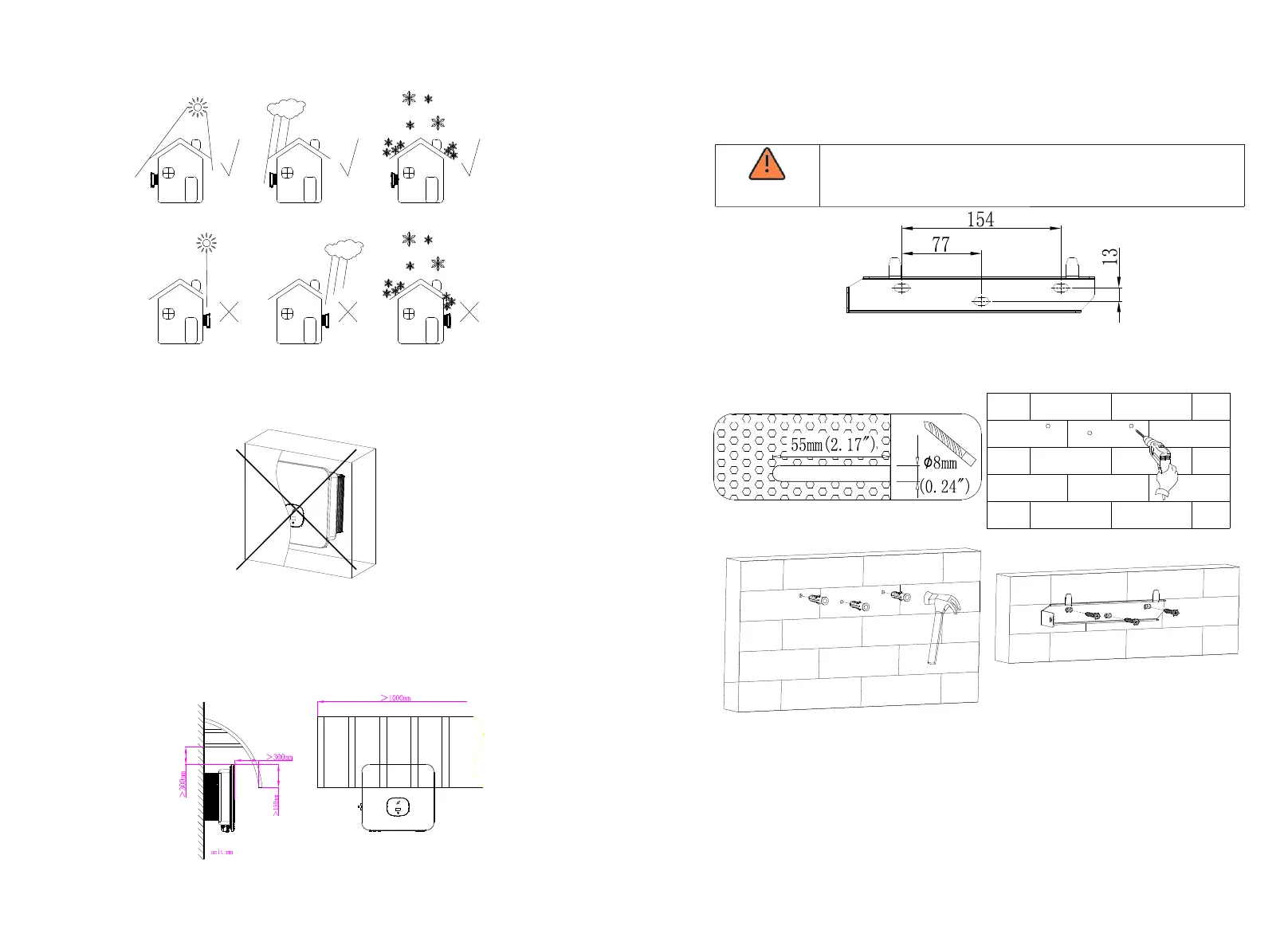

Fig 5.4 Installation Environment
Ø Make sure that the inverter is installed in a suitable place and is not allowed to be
installed in a closed box;
Fig 5.5 Closed box
Ø In order to reduce the inverter load and extend the life of the inverter due to direct
sunlight, we recommend installing a awning. The distance between the awning and the
inverter is as follows:
5.2 Install the wall mount
5.2.1 Install the wall mount
To prevent electric shock or other damage, be sure to check the wall
for power or other piping before opening the hole in the wall.
Danger
Secure the wall mount as shown, do not let the screws flush with the wall, instead expose
2 to 4 mm.
5.3 Installing the inverter
Note: Before installing the inverter, you must first make sure that the wall mount is firmly
fixed to the wall.
steps:
1.Hang the inverter on the wall mount and keep the inverter balanced when hanging.
2.To ensure that the inverter can be securely attached to the wall, secure the side of the
inverter with the M5 safety screw on the left.
Fig 5.6 Sunshade
Fig 5.7 Specifications of wall mount
Fig 5.8 Schematic diagram of wall mount installation

Growatt MOD 11KTL3-X Specifications

General

Product type	-
Maximum power	11000 W
Output current	18.3 A
Output frequency	50/60 Hz
MPP voltage range	140 - 1000 V
Number of strings per MPPT	1
Output power capacity (max)	11 kVA
Input operation voltage (max)	1100 V
Input operation voltage (min)	160 V
Maximum input current per MPPT	13 A
Output operation voltage (max)	440 V
Output operation voltage (min)	340 V
Total Harmonic Distortion (THD)	3 %
Number of maximum power point tracking (MPPT)	2
Operating temperature (T-T)	-25 - 60 °C
Built-in display	Yes
Display technology	OLED
Product color	White
Overvoltage category	CAT II
Power protection features	Over voltage, Short circuit
International Protection (IP) code	IP66

Weight and Dimensions

Depth	178 mm
Width	425 mm
Height	387 mm
