Danger
Warning
16
15
Inverter wiring 6
6.1 Security
There may be a high voltage in the conductive part of the inverter,
which may cause electric shock.Therefore, when installing the
inverter,make sure that the AC and DC sides of the inverter are
powered off.
Static electricity may damage the electronic components of the
inverter.Anti-static measures should be taken during the
replacement or installation of the inverter.
Moisture and dust penetration can damage the inverter
Ø Make sure that the waterproof cable gland is firmly tightened.
Ø If the cable connector is not installed correctly, the inverter
may be damaged due to the penetration of moisture and dust. All
warranty claims are void
Note
6.2 AC side wiring
Before making electrical connections, please make sure that the
DC switch of the inverter is in the "OFF" state and disconnect the
AC side MCB, otherwise the high voltage of the inverter may
cause death.
Ø Each inverter must be installed with an AC circuit breaker
independently, and it is forbidden to share multiple inverters.
Ø It is forbidden to use single-core wire at the output terminal of
the inverter.
Ø It is forbidden to use aluminum wires as output cables.
Ø Please ensure that the output cable is well connected
before turning on the inverter.Ignoring the above warning
may damage the machine or cause other losses.In this case,
the company reserves the right not to carry out the warranty
and bear any responsibility and related expenses.
Moisture and dust penetration can damage the inverter.
Ø Make sure the cable connector is securely tightened.
Ø If the cable connector is not installed correctly, the inverter
may be damaged by moisture and dust. All warranty claims are
invalid.
Danger
Warning
Note
Residual current protection device (RCMU)
Because the inverter itself has a high-precision residual current detection device,it is
not recommended to install a leakage protection switch in the system.If for some
special reason,it must be installed between the inverter output and the grid.Please
install a type B leakage protection switch above 300mA.When multiple leakage
protection switches are installed in the system,it is forbidden to share the neutral
line,otherwise the leakage protection function may be triggered by mistake and
cause the switch to trip.

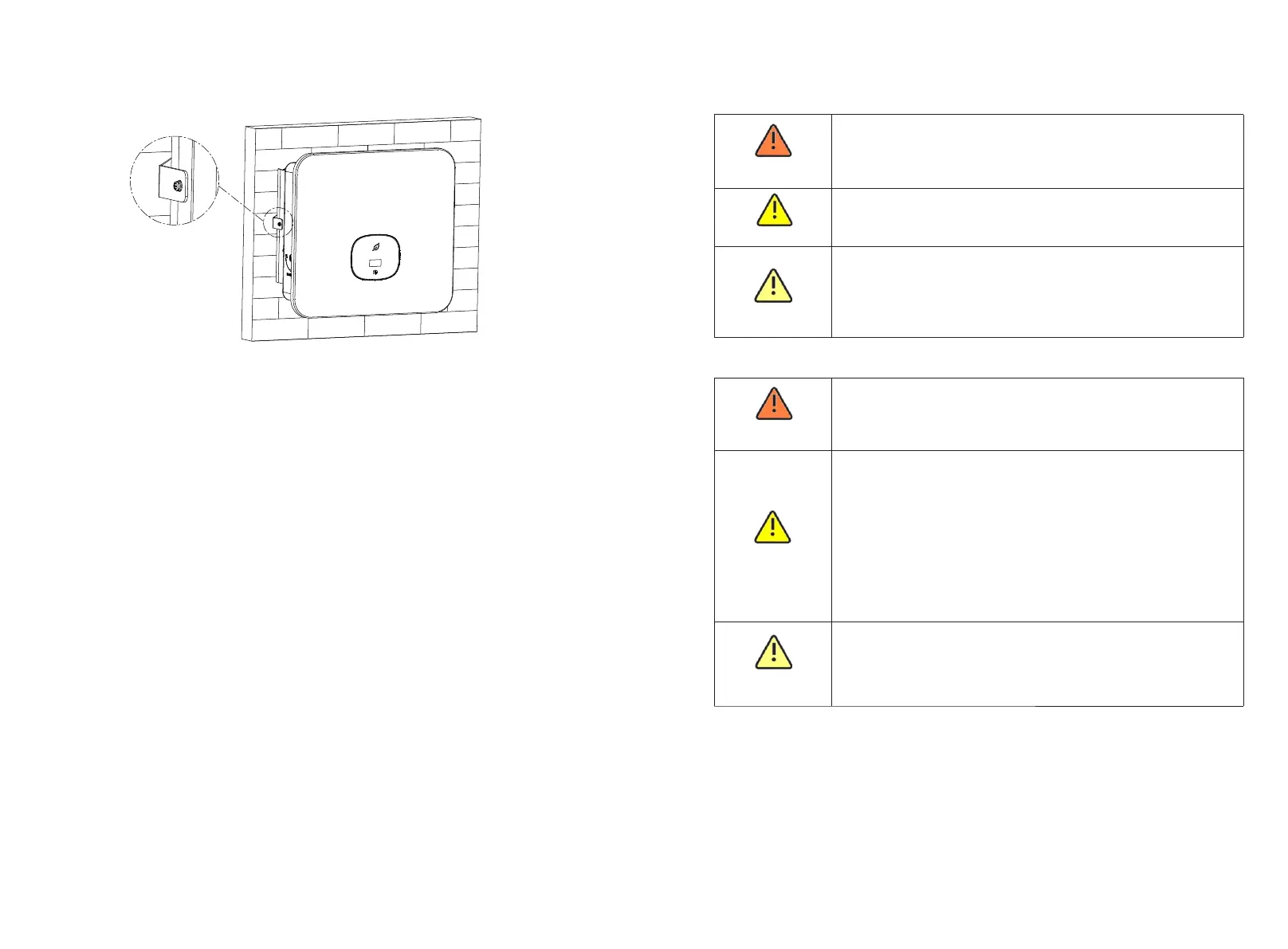

Fig 5.9 Schematic diagram of inverter wall mounting

Other manuals for Growatt MOD 11KTL3-X

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt MOD 11KTL3-X and is the answer not in the manual?

Growatt MOD 11KTL3-X Specifications

General IconGeneral
Product type-
Maximum power11000 W
Output current18.3 A
Output frequency50/60 Hz
MPP voltage range140 - 1000 V
Number of strings per MPPT1
Output power capacity (max)11 kVA
Input operation voltage (max)1100 V
Input operation voltage (min)160 V
Maximum input current per MPPT13 A
Output operation voltage (max)440 V
Output operation voltage (min)340 V
Total Harmonic Distortion (THD)3 %
Number of maximum power point tracking (MPPT)2
Operating temperature (T-T)-25 - 60 °C
Built-in displayYes
Display technologyOLED
Product colorWhite
Overvoltage categoryCAT II
Power protection featuresOver voltage, Short circuit
International Protection (IP) codeIP66
Weight and Dimensions IconWeight and Dimensions
Depth178 mm
Width425 mm
Height387 mm
