Growatt ShineVision User Manual

Figure 9
Figure 10
Note: When pressing ”Ok” after all items are set, the LED light will flash twice to
indicate the setting are verified valid
2.3.1 Currency symbol setting
Press “OK” key to enter the module of currency symbol setting as shown in Figure 10
when the currency symbol flashes. Now symbol flashes.
Press “down” key, symbol flashes, press the “down” key again, $ flashes. Then
press “up” key to convert the order. When a currency symbol flashes, press “OK” key
to select the currency symbol. Then, the currency symbol stops flashing, meanwhile,
you enter the module of income coefficient setting, and “0” in 0.163 flashes.
If setting for currency symbol is not necessarily required, press “down” key to enter
the module of income coefficient setting.
Notes: suppose that $ is selected as the currency symbol, the display of currency
symbol will change to the currency symbol selected at this step.the default currency
symbol of the system is $.
2.3.2 Income coefficient setting
After the currency symbol is selected, press “OK” for a short while to enter the
module of income coefficient setting, as shown in Figure 10. At the time when the
“0” of 0.163 flashes, press “Up” or “Down” to adjust its value, ranging from 0 to 9,
and press “OK” to confirm after adjustment, then the “1” of 0.163 will flash; press
“Up” or “Down” to adjust its value, ranging from 0 to 9, and press “OK” to confirm
Notes: Antenna symbol is not displayed if codes are not matched, vice versa, display
once the codes are successfully matched.

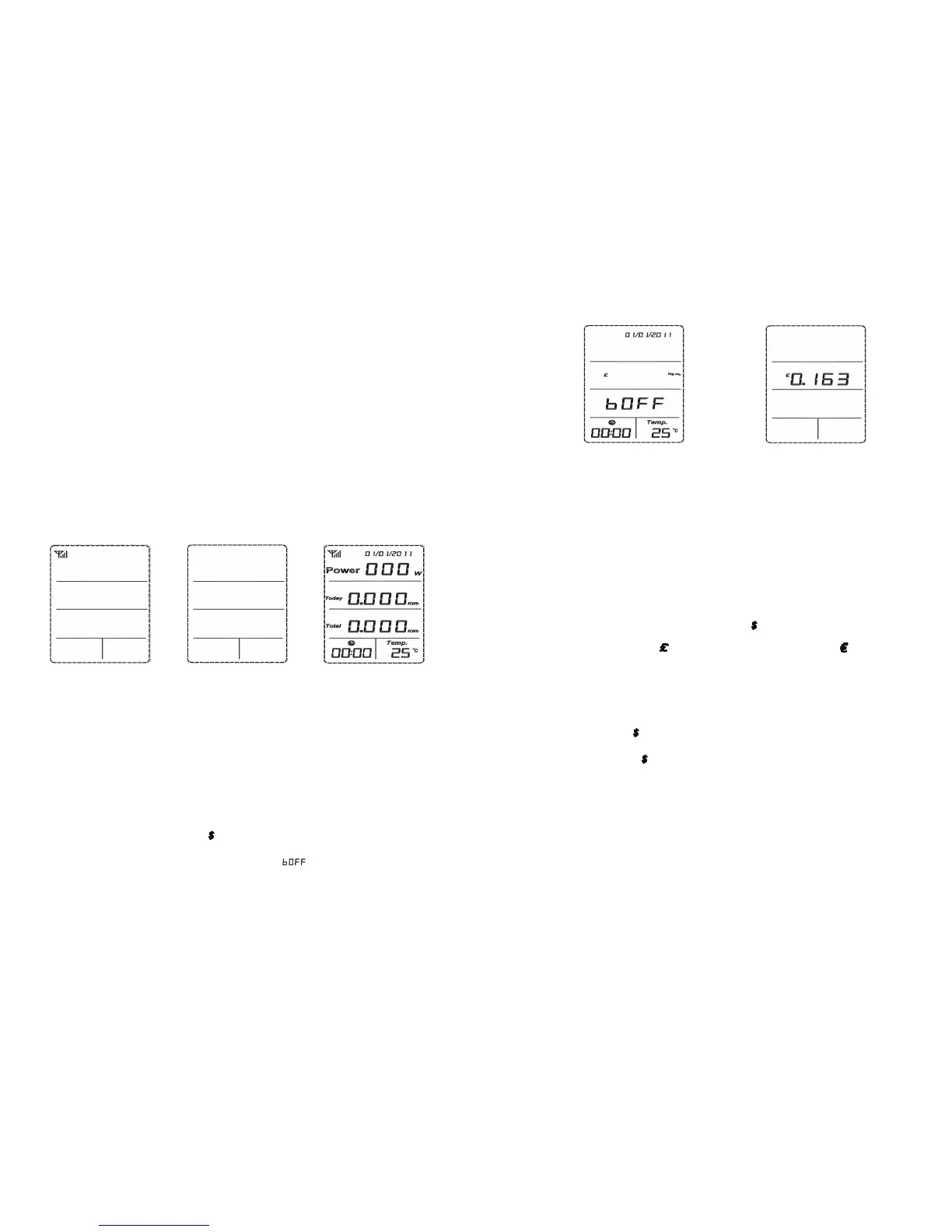

Figure 6 Figure 7 Figure 8
2.3 Basic Setting
In the default interface, press “OK” key for quite a while, 3 seconds later, the red LED
flashes quickly twice and then release the key to enter basic setting, LCD displays as
shown in Figure 9, at this time, the currency symbol will flash, switch over among
various function modules through “down” key. Setting should follow the order of
currency symbol (system default as ), income coefficient (system default as 0.163 ,
emission coefficient (system default as 0.997), date, time, temperature unit (system
default as ℃ ) , buzzer switch (system default as status), press “up” key to
convert the order. Restore to the default interface as shown in Figure 6 if there is no
key operation within 1 minute in the interface of basic settings, or restore as all
options are set.
)
After the power is energized, the default interface displays, press “down” and “up”
keys shortly and select the channel No. (optional from channel No.1 to 6), and press
the “down” key for about 3 seconds until the red LED light quickly flash twice , then
release it. After quite a while, simultaneously press the red button on transmitter for
a while until the red LED light quickly flash twice , you will automatically enter the
code-matching of the channel as shown in Figure 6 . Antenna symbol flashes once
per second, LCD displays as shown in Figure 7 . After releasing the red button on the
transmitter LCD will display as shown in Figure 8. Upon the successful matching of
codes, LCD will displays as shown in Figure 8, in case of code-matching fails in 1
minute, LCD will display the default interface as Figure 4 .
.
