Specifications

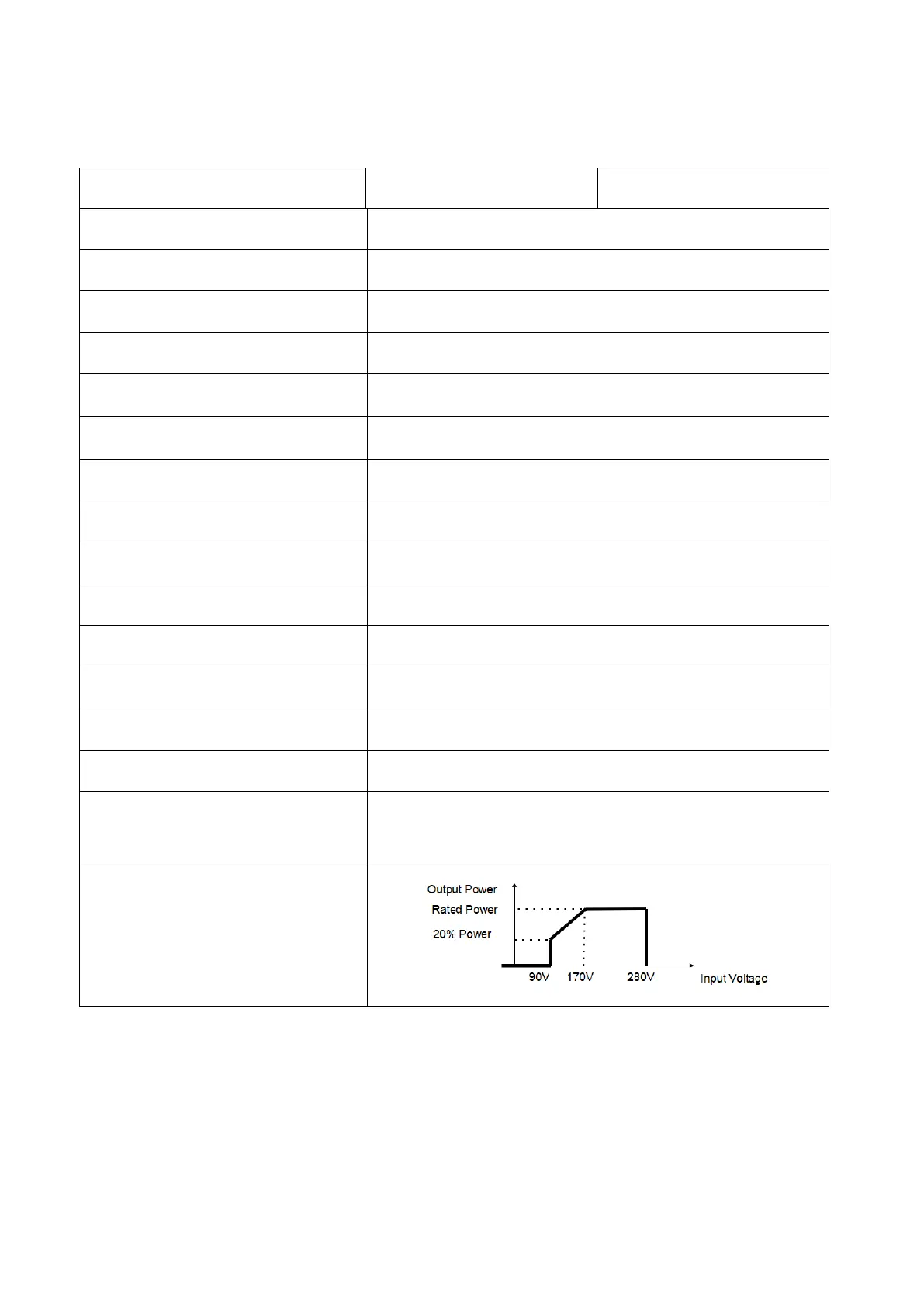

Table 1 Line Mode Specifications
INVERTER MODEL
SPF 3500 ES
SPF 5000 ES
Input Voltage Waveform
Sinusoidal (utility or generator)
Nominal Input Voltage
230Vac
Low Loss Voltage
170Vac±7V (UPS); 90Vac±7V (Appliances)
Low Loss Return Voltage
180Vac±7V (UPS); 100Vac±7V (Appliances)
High Loss Voltage
280Vac±7V
High Loss Return Voltage
270Vac±7V
Max AC Input Voltage
300Vac
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Low Loss Frequency
40±1Hz
Low Loss Return Frequency
42±1Hz
High Loss Frequency
65±1Hz
High Loss Return Frequency
63±1Hz
Output Short Circuit Protection
Circuit Breaker
Efficiency (Line Mode)
>95% ( Rated R load, battery full charged )
Transfer Time
10ms typical, 20ms Max@ Single
<30ms @ Parallel
Output power derating:
When AC input voltage drops to 170V,
the output power will be derated.
