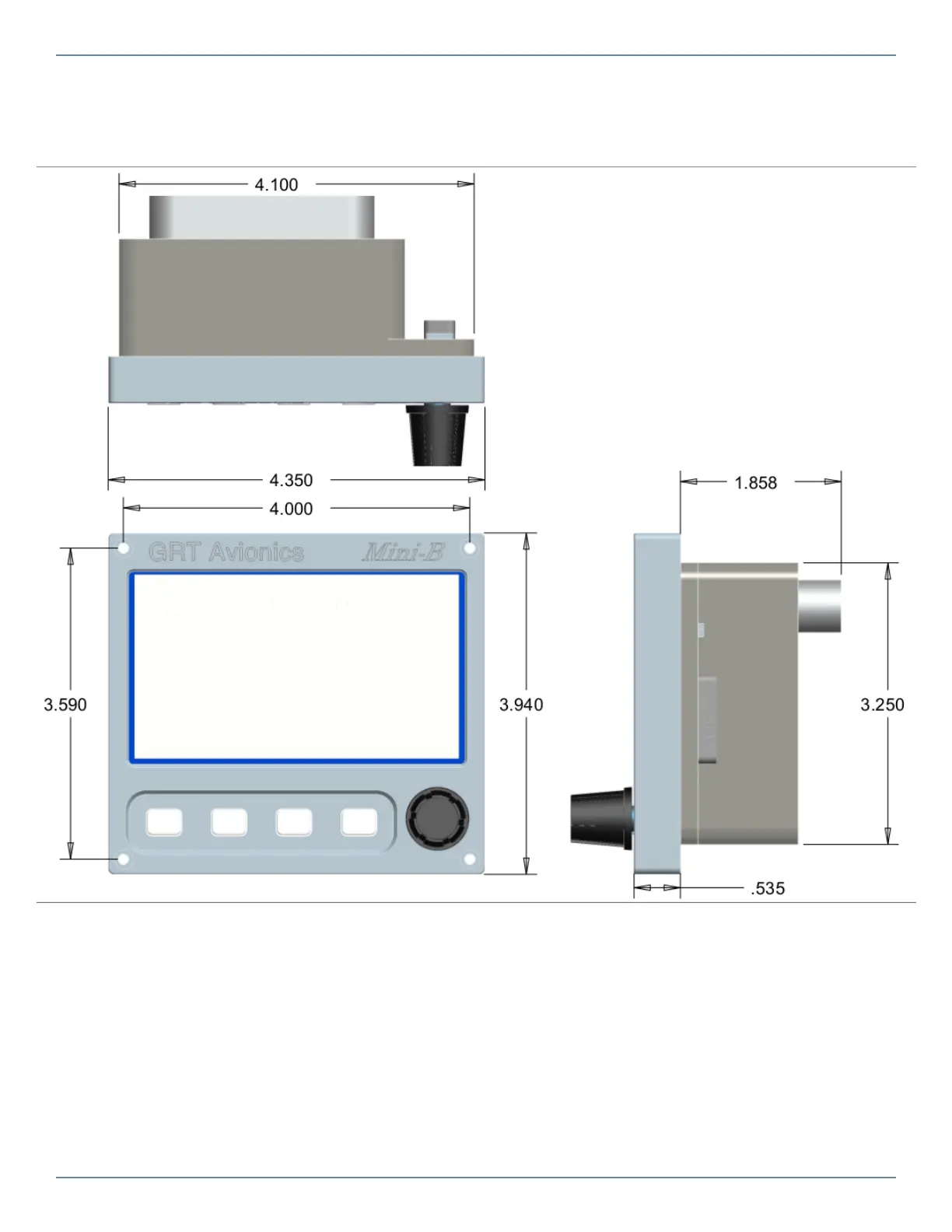

Figure 1-1: Mini Dimensional Drawing (all models)
GRT Mini
01-Mar-2014
Notes:
� Cutout dimensions 4.15” x 3.30”
� Unit is centered within the cutout.
� Mounting screws are #4
� Mounting bolt pattern is centered on
bezel outline.
