Grundfos alpha2l User Manual

25
12.3 Installation dimensions, GRUNDFOS ALPHA2 L XX-40, XX-45, XX-60
For the German market

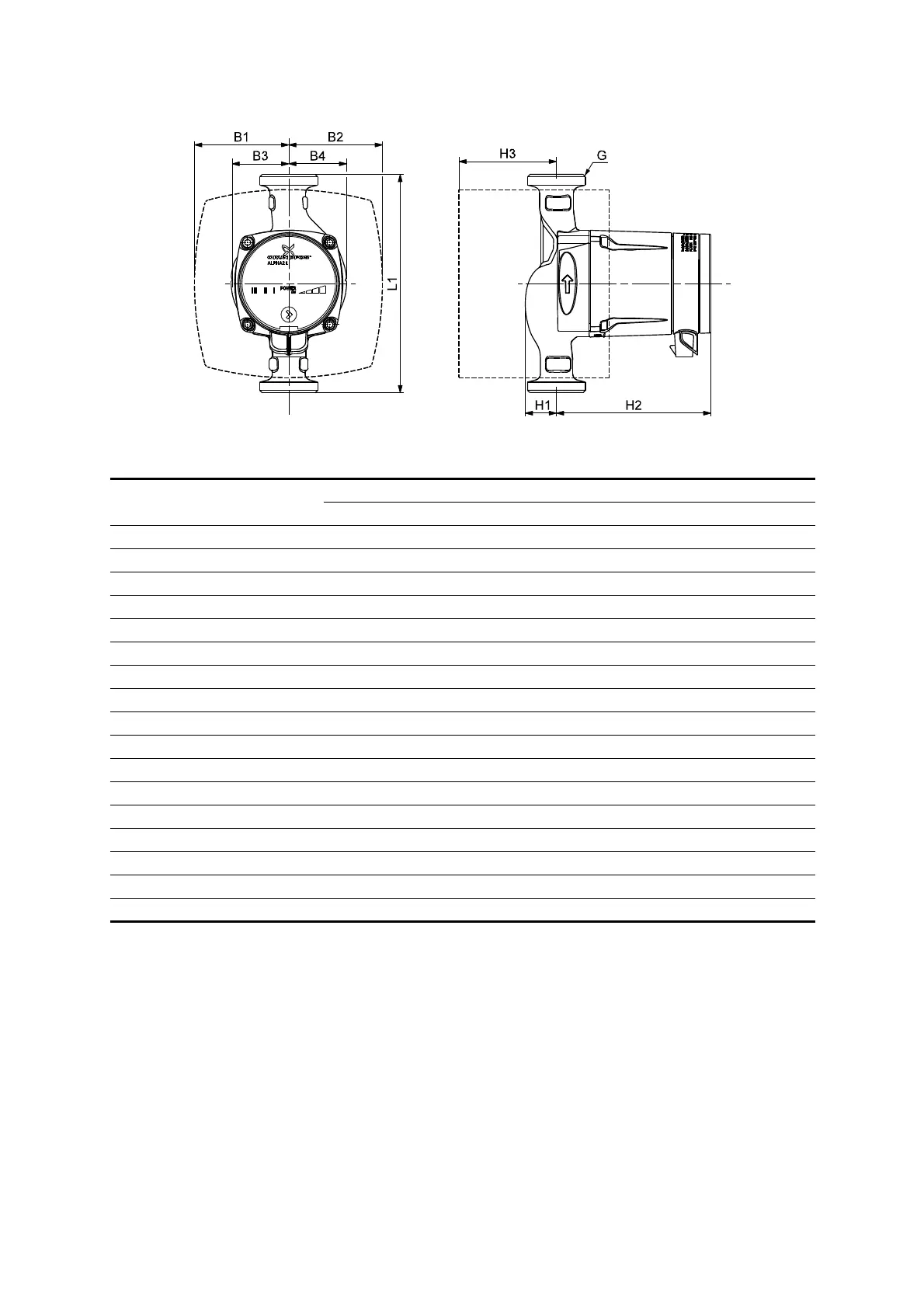

Fig. 15 Dimensional sketches, ALPHA2 L XX-40, XX-45, XX-60
TM04 2533 3912
Pump type
Dimensions
L1 B1 B2 B3 B4 H1 H2 H3 G
ALPHA2 L 15-40 130 DE 130 54 54 46 49 27 129 30 1
ALPHA2 L 20-40 130 DE 130 54 54 46 49 27 129 30 1 1/4
ALPHA2 L 25-40 130 DE 130 54 54 46 49 27 129 30 1 1/2
ALPHA2 L 25-40 180 DE 180 54 54 47 48 26 127 30 1 1/2
ALPHA2 L 25-40 A 180 DE 180 63 93 32 65 50 135 82 1 1/2
ALPHA2 L 32-40 180 DE 180 54 54 47 48 26 127 30 2
ALPHA2 L 15-60 130 DE 130 54 54 46 49 27 129 30 1
ALPHA2 L 20-60 130 DE 130 54 54 46 49 27 129 30 1 1/4
ALPHA2 L 25-60 130 DE 130 54 54 46 49 27 129 30 1 1/2
ALPHA2 L 25-60 180 DE 180 54 54 47 48 26 127 30 1 1/2
ALPHA2 L 25-60 A 180 DE 180 63 93 32 65 50 135 82 1 1/2
ALPHA2 L 32-60 180 DE 180 54 54 47 48 26 127 30 2
ALPHA2 L 20-40 N 150 DE 150 - - 49 49 28 127 - 1 1/4
ALPHA2 L 20-45 N 150 DE 150 - - 43 43 27 127 - 1 1/4
ALPHA2 L 25-40 N 180 DE 180 - - 47 48 26 127 - 1 1/2
ALPHA2 L 20-60 N 150 DE 150 - - 49 49 28 127 - 1 1/4
ALPHA2 L 25-60 N 180 DE 180 - - 47 48 26 127 - 1 1/2

Grundfos alpha2l Specifications

General

Voltage	230 V
Protection Class	IP42
Maximum Operating Pressure	10 bar
Enclosure Class	IP42
Insulation Class	F
Pump Housing	Cast iron
Type	Circulator pump
Frequency	50 Hz
Approvals	CE
Connection	G 1"
Ambient Temperature	Up to 40°C
