6.2 Standard functional module, FM 200
6.2.1 Inputs and outputs
The module has these connections:
• two analog inputs
• two digital inputs or one digital input and one
open-collector output
• Grundfos Digital Sensor input and output
• two signal relay outputs
• GENIbus connection.
All inputs and outputs are internally separated from
the mains-conducting parts by reinforced insulation
and galvanically separated from other circuits. All
control terminals are supplied with protective
extra-low voltage (PELV), ensuring protection
against electric shock.
6.2.2 Signal relay 1
LIVE: You can connect supply voltages up to 250
VAC to the output.
PELV: The output is galvanically separated from
other circuits. Therefore, you can connect the supply
voltage or protective extra-low voltage to the output
as desired.
6.2.3 Signal relay 2
PELV: The output is galvanically separated from
other circuits. Therefore, you can connect the supply
voltage or protective extra-low voltage to the output
as desired.
6.2.4 Connection terminals for the mains supply
6.2.5 Connection terminals for inputs and
outputs

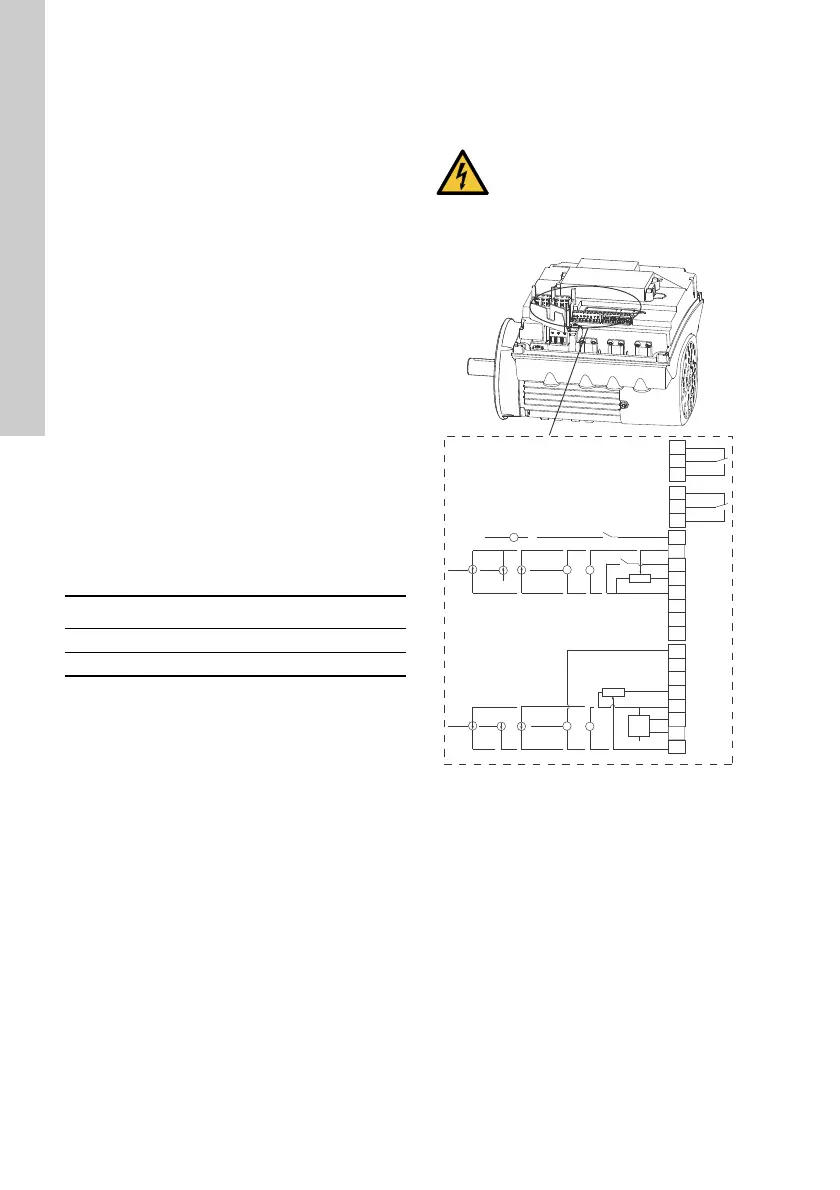

Fig. 2 Connection terminals, FM 200
Phases Terminals
Single-phase N, PE, L
Three-phase L1, L2, L3, PE
DANGER
Electric shock
- Death or serious personal injury
- Make sure that the wires to be
connected to the connection groups
below are separated from each other by
reinforced insulation in their entire
lengths.
