When a control mode is chosen, the corresponding LED is lit. If the LED blinks
in temperature control mode, the pump is in standby.
5.3 COMFORT Digital Timer variants

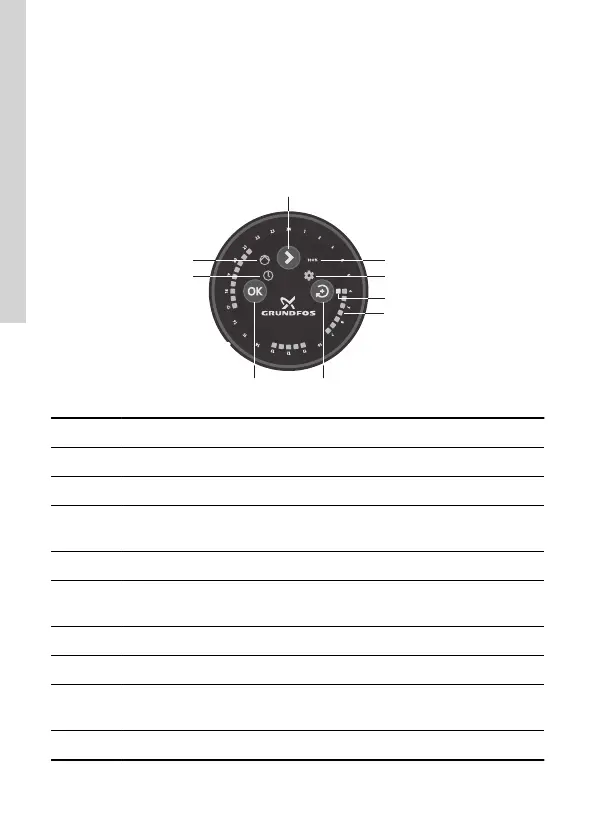

5.3.1 Operating panel
COMFORT PM
1
2
3
4
5
67
8
9
TM076110_
Pos. Description
1 Arrow button for changing mode.
2 100 % LED. When lit, the pump runs continuous 100 % mode.
3
Gear wheel LED. It lights up when the actual time and operating
time can be set.
4 Actual time. One LED equals a time interval of 30 minutes.
5
Timer LEDs showing the pump's operating periods. One LED
equals a time interval of 30 minutes.
6 Change button for toggling the actual time and timer LEDs.
7 OK button for confirming, changing or deleting settings.
8
Activated timer function. When lit, the LED indicates that the timer
function is activated and that operating periods have been set.
9 Pump LED. It indicates that the pump is operating.
16
English (US)

Grundfos COMFORT 10-16 Temperature control Specifications

General

System pressure	10 bar
Pump Type	Circulator pump
Voltage	230 V
Frequency	50 Hz
Max. Liquid Temperature	95 °C
Liquid temperature range	2°C to 95°C
Approvals	CE
