English (GB) Installation and operating instructions
Original installation and operating instructions
CONTENTS
Page
1. Symbols used in this document
2. Handling
When lifting the entire pump with motor, follow these instructions:
• Pump with motor sizes 0.37 - 5.5 kW:
Lift the pump in the motor flange by means of straps or the
like.
• Pump with motor sizes 7.5 - 22 kW:
Lift the pump by means of the motor eyebolts.
• Pump with motor sizes 30-45 kW:
Lift the pump by means of the lifting brackets on the motor
flange.
• Pump with motor sizes 55-75 kW:
Lift the pump by means of the eyebolts on the motor side.

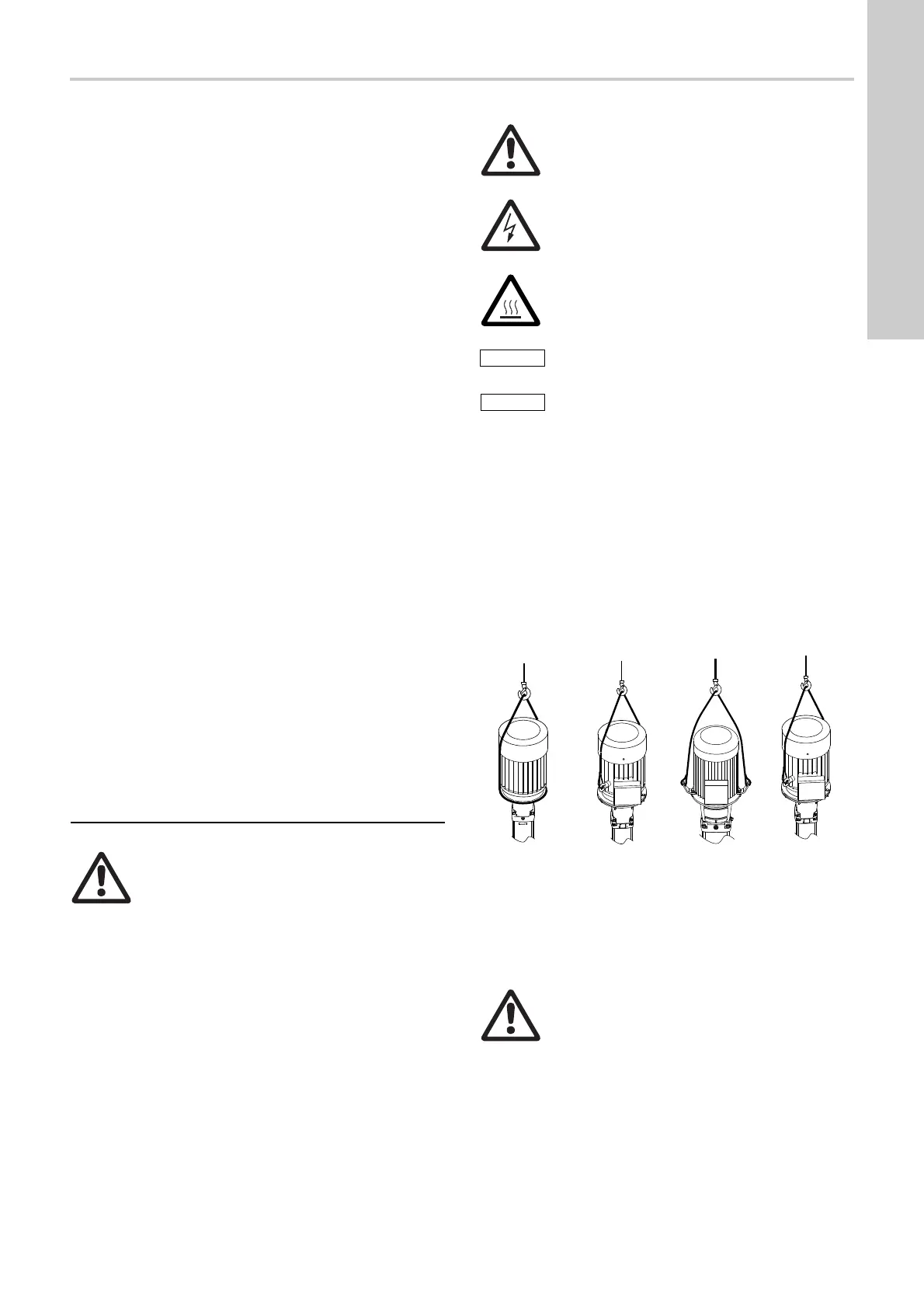

Fig. 1 Correct lifting of a CR pump
In case of CR, CRI and CRN pumps with other motors than MG or
Siemens, we recommend that you to lift the pump by means of
the straps in the motor flange.
1. Symbols used in this document
5
2. Handling
5
3. Type designation
6
3.1 Type key for CR, CRI, CRN 1s, 1, 3, 5, 10, 15 and 20
6
3.2 Type key for CR, CRN 32, 45, 64, 90, 120 and 150
6
4. Applications
6
5. Technical data
6
5.1 Ambient temperature and altitude
6
5.2 Liquid temperature
7
5.3 Maximum permissible operating pressure and liquid
temperature for the shaft seal
7
5.4 Minimum inlet pressure
7
5.5 Minimum inlet pressure
7
5.6 Minimum flow rate
8
5.7 Electrical data
8
5.8 Frequency of starts and stops
8
5.9 Dimensions and weights
8
5.10 Sound pressure level
8
6. Installation
8
6.1 Foundation
9
6.2 Vibration dampening
10
6.3 Outdoor installation
10
6.4 Hot or cold surfaces
10
6.5 Torques
10
6.6 Flange forces and torques
11
7. Electrical connection
12
7.1 Cable entry/screwed connection
12
7.2 Three-phase connection
12
7.3 Single-phase connection
13
7.4 Terminal box positions
13
7.5 Frequency converter operation
13
8. Startup
14
8.1 Shaft seal run-in
14
9. Maintenance
14
10. Frost protection
15
11. Service
15
11.1 Service kits and manuals
15
12. Fault finding
16
13. Disposing of the product
16
Warning
Prior to installation, read these installation and
operating instructions. Installation and operation
must comply with local regulations and accepted
codes of good practice.
Warning
If these safety instructions are not observed, it may
result in personal injury.
Warning
If these instructions are not observed, it may lead to
electric shock with consequent risk of serious
personal injury or death.
Warning
The surface of the product may be so hot that it may
cause burns or personal injury.
Caution
If these safety instructions are not observed, it may
result in malfunction or damage to the equipment.
Note
Notes or instructions that make the job easier and
ensure safe operation.
TM04 0339 0608 TM04 0341 0608 TM05 9564 4113 TM04 0341 0608
0.37 - 5.5 kW 7.5 - 22 kW 30-45 kW 55-75 kW
Warning
Make sure that the pump remains in a stable position
during unpacking and installation by means of the
straps used for lifting the pump.
Note that typically the centre of gravity of the pump is
close to the motor.
