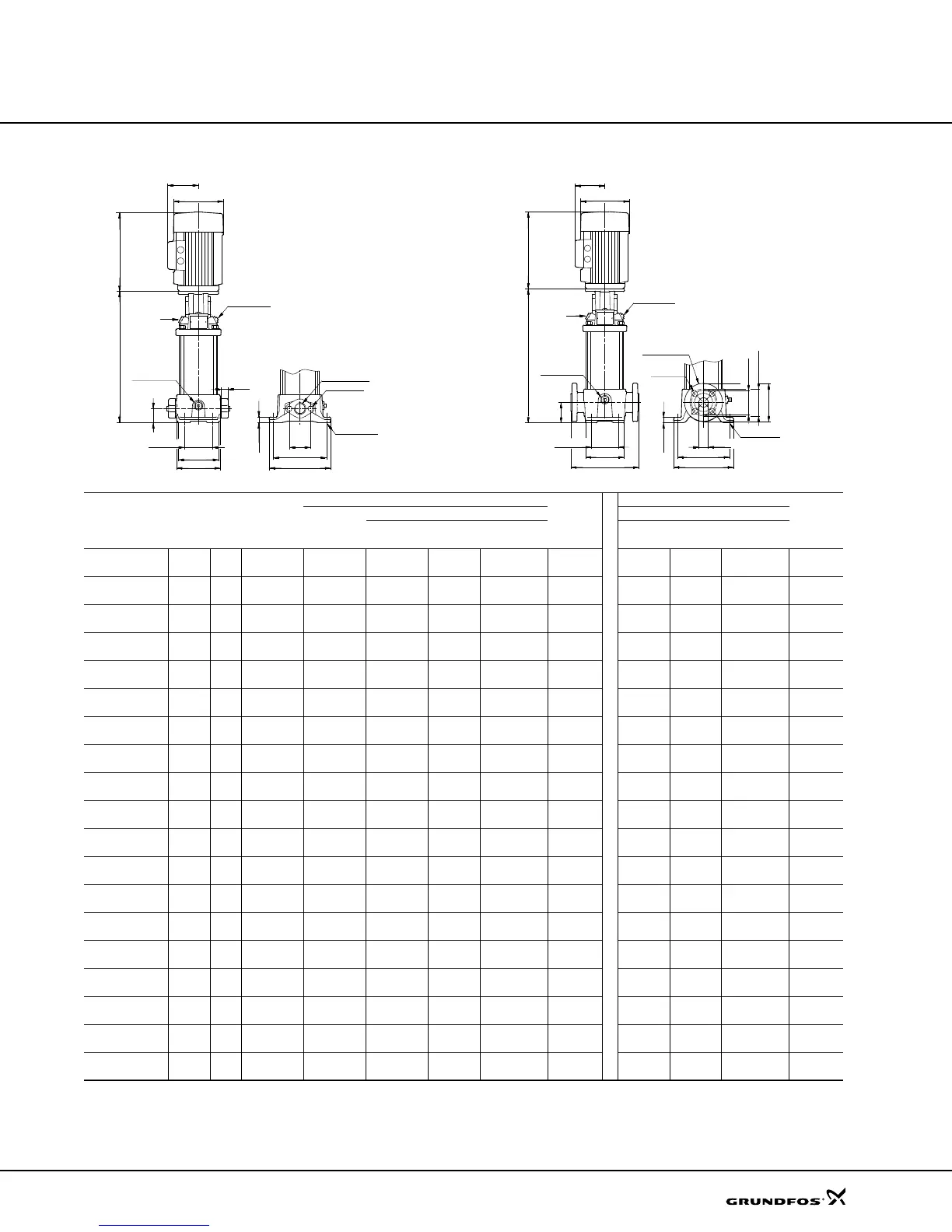

Technical data
39
All dimensions in inches unless otherwise noted.
*Oval flanged pump B1 and B1+B2 dimension is one inch less than ANSI flanged pumps and weight is approximately 9 lbs. less.
• Available.
TM03 1455 2205
7/8"
M10 x 40
G 1/2 PLUG
3"
2"
13/16"
B1
5 11/16"
3 15/16"
6 5/16"
7 1/16"
8 11/16"
4 x ø1/2"
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
1 1/4"NPT (F)
PLUG (G 1/2)
DRAIN
B2
D2
D1
TM03 1451 2205
G 1/2 PLUG
B1
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
1 1/4"250 lb.R.F.
PLUG (G 1/2)
DRAIN
ø1 3/8"
ø5 1/2"
3"
13/16"
5 9/16"
3 15/16"
9 7/8"
ø3 15/16"
ø3 1/2"
7 1/16"
8 11/16"
4 x ø1/2"
3/4"x1"
B2
D2
D1
Pump type
P2
[hp]
Ph. Oval*
ANSI dimensions [inch]
Ship Wt.
[lbs.]
ANSI dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC MLE
D1 D2 B1+B2 D1 D2 B1+B2
CR(E) 5-2 3/4
1•
11.97 6.19 5.18 21.88 77 5.55 5.51 19.39 71
3•
11.97 5.55 4.57 19.41 68 - - - -
CR(E) 5-3 1
1•
13.03 7.19 5.73 24.22 90 - - - -
3•
13.03 5.55 4.57 20.47 69 7.01 6.57 25.83 88
CR(E) 5-4 1 1/2
1•
14.09 7.19 5.73 25.77 94 5.55 5.51 23.07 79
3•
14.09 5.55 4.57 22.71 71 7.01 6.57 26.89 92
CR 5-5 2
1•
15.16 7.19 5.73 27.72 106 - - - -
3•
15.16 7.01 4.33 26.38 93 - - - -
CR(E) 5-6 2
1•
16.22 7.19 5.73 28.78 108 - - - -
3•
16.22 7.01 4.33 27.44 95 7.01 6.57 29.02 111
CR 5-7 3
1•
18.39 8.60 6.87 33.04 143 - - - -
3•
18.39 7.01 4.33 31.62 114 - - - -
CR 5-8 3
1•
19.45 8.60 6.87 34.10 145 - - - -
3•
19.45 7.01 4.33 32.68 116 - - - -
CR(E) 5-9 3
1•
20.51 8.60 6.87 35.16 147 - - - -
3•
20.51 7.01 4.33 33.74 118 7.01 6.57 33.82 126
CR 5-10 5
1•
21.57 10.62 7.46 37.09 170 - - - -
3•
21.57 8.66 5.28 37.08 168 - - - -
CR 5-11 5
1•
22.64 10.62 7.46 38.16 172 - - - -
3•
22.64 8.66 5.28 38.15 169 - - - -
CR 5-12 5
1•
23.70 10.62 7.46 39.22 177 - - - -
3•
23.70 8.66 5.28 39.21 170 - - - -
CR(E) 5-13 5
1•
24.76 10.62 7.46 40.28 178 - - - -
3•
24.76 8.66 5.28 40.27 171 8.66 7.40 40.27 166
CR 5-14 5
1•
25.83 10.62 7.46 41.35 180 - - - -
3•
25.83 8.66 5.28 41.34 176 - - - -
CR(E) 5-15 5
1•
26.89 10.62 7.46 42.41 181 - - - -
3•
26.89 8.66 5.28 42.40 177 8.66 7.40 42.40 169
CR(E) 5-16 5
1•
27.95 10.62 7.46 43.47 182 - - - -
3•
27.95 8.66 5.28 43.46 178 8.66 7.40 43.46 170
CR 5-18 7 1/2
1-
30.59 10.22 7.62 46.12 200 - - - -
3-
30.59 8.66 5.28 46.10 188 - - - -
CR(E) 5-20 7 1/2
1-
32.72 10.22 7.62 48.25 203 - - - -
3-
32.72 8.66 5.28 48.23 190 8.66 7.40 48.23 204
CR 5-22 7 1/2
1-
34.84 10.22 7.62 50.37 300 - - - -
3-
34.84 8.66 5.28 50.35 287 - - - -
CR(E) 5-24 7 1/2
1-
36.97 10.22 7.62 52.50 302 - - - -
3-
36.97 8.66 5.28 52.48 290 8.66 7.40 52.48 303
CR(E) 5
