CR, CRI, CRN, CRE, CRIE, CRNE
72

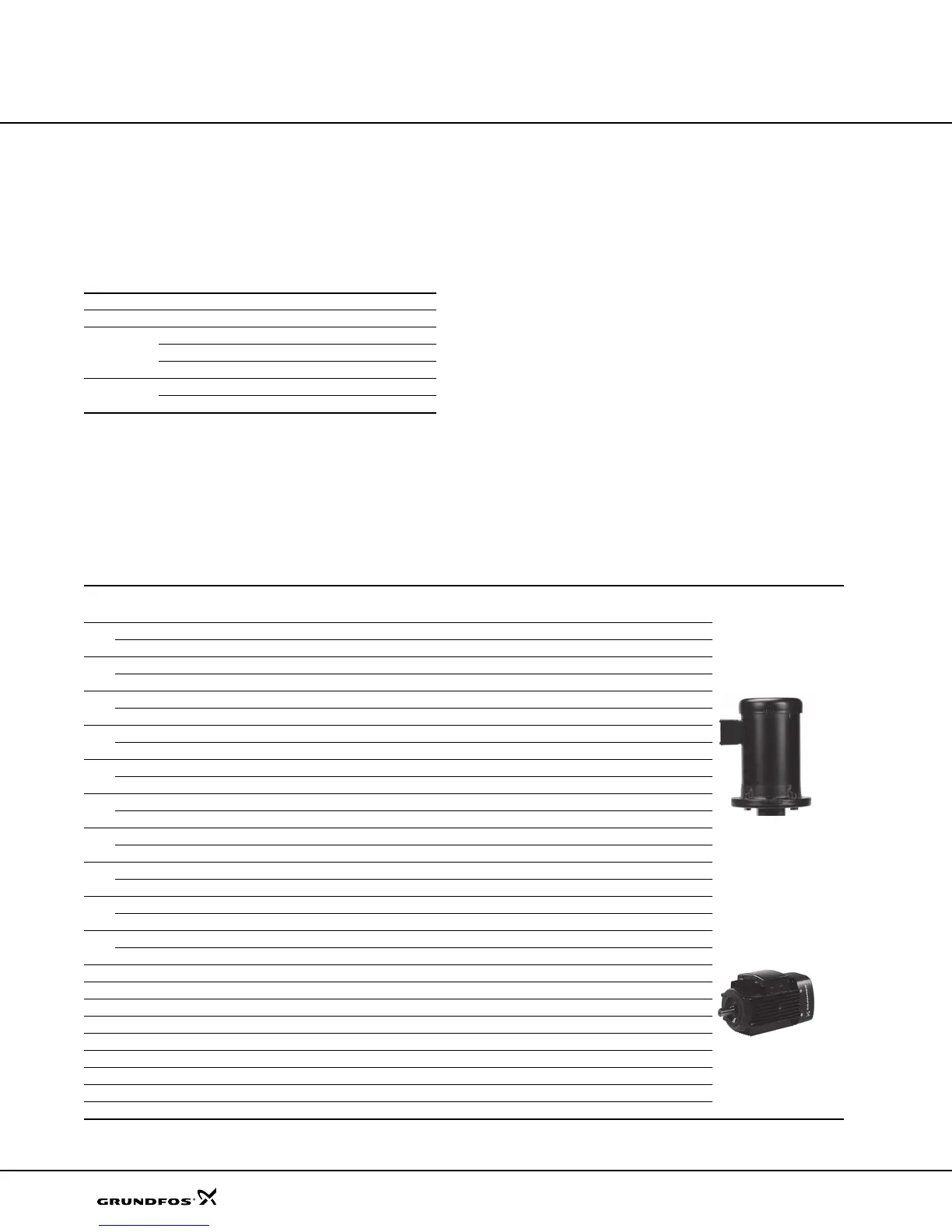

Motor data
Standard motors in the CR range
Motors used in the CR pump range are:
• Grundfos ML or MLE motors
• Grundfos specified Baldor
®
motors
The information in the tables below applies to following
motors type and size:
Grundfos CR pumps are supplied with heavy-duty
2-pole, NEMA energy efficient C-frame motors built or
selected to our rigid specifications. All CR pump motors
have heavy-duty bearings for maximum thrust
requirements.
It is not recommended that an off-the-shelf
standard Baldor motor be used on a Grundfos
pump. Ideally, the best motor choice would be the
Grundfos specified motor.
Single-phase Grundfos specified motors up to 7.5 hp
have a built-in thermal overload switch.
Other motor types are available (i.e., Explosion proof,
Mill and Chem duty, Premium Efficiency, etc.); consult
local Grundfos company for more information.
Pumps supplied by Grundfos Canada are normally
supplied with motors from other manufactures. 575 volt
motors meet NEMA energy efficient standards.
Dimensions and data will vary, contact local Grundfos
company for more information.
All values are subject to change without notice.
TEFC motors
(Totally Enclosed Fan Cooled, constant speed)
Type Phase Motor range [HP] Cooling method
ML 3 1/3 - 10 TEFC
Baldor
11/3 - 10 TEFC
3 15 - 100 TEFC
3 15 - 100 ODP
MLE
1 1/2 - 1 1/2 TEFC
31 - 10 TEFC
HP PH Frame S.F.
Voltage
[V]
Mtr. Eff.
[%]
Insul.
class
KVA
code
Full load current
[A]
Service
Factor current
[A]
Start current
[A]
Motor
type
1/3
1 56C 1.35 115/230 55 B K 6.0/3.0 7.6/3.8 28/14 Baldor
Baldor motor
3 56C 1.35 208-230/460 78.5 F L 1.12-1.1/0.55 1.5-1.45/0.75 7.1-7.7/3.9 ML
TM02 7696 3803
1/2
1 56C 1.6 115/230 62 B K 7.4/3.7 9.8/4.9 39/19.5 Baldor
3 56C 1.25 208-230/460 78.5 F K 1.64-1.55/0.78 2.0-1.9/0.95 9.7-10.1/5.1 ML
3/4
1 56C 1.25 115/230 66 B K 9.6/4.8 11.4/5.7 56/28 Baldor
3 56C 1.25 208-230/460 79 F K 2.4-2.3/1.2 2.9-2.75/1.4 14.2-15/7.8 ML
1
1 56C 1.25 115/230 66 B K 12/6.0 14.4/7.2 77/38.5 Baldor
3 56C 1.25 208-230/460 80 F J 3.25-3.35/1.68 4.0-3.9/1.95 19.2-21.8/10.9 ML
1 1/2
1 56C 1.3 115/208-230 71 B K 17/9.5-8.6 20.4/11.3-10.2 106/58.6-53 Baldor
3 56C 1.15 208-230/460 84 F M 4.7-4.6/2.3 5.2-5.1/2.55 33.8-36.8/18.4 ML
2
1 56C 1.15 115/208-230 74 F K 23/12.7-11.5 25.4/14.0-12.7 156/86-78 Baldor
3 56C 1.15 208-230/460 85.5 F G 5.7-5.4/2.7 6.55-6.1/3.05 46.2-48.6/24.3 ML
3
1 182TC 1.15 115/208-230 75 F H 29/16-14.5 31.8/18-15.9 170/94-85 Baldor
3 182TC 1.15 208-230/460 86.5 F M 8.4-7.7/3.9 9.5-8.6/4.3 79.0-80.1/40.6 ML
5
1 213TCZ 1.15 208-230 80 F J 24-22 27-25 188-170 Baldor
3 182TC 1.15 208-230/460 88.5 F L 13.8-13.0/6.5 15.6-14.6/7.3 124-129/64.4 ML
7 1/2
1 213TC 1.15 208-230 82 F F 33.8-31 38.5-35.5 244-220 Baldor
ML motor
3 213TC 1.15 208-230/460 90 F N 20.4-19.4/9.7 23-21.5/10.8 192-202/101 ML
10
1 213TC 1.15 230 85.5 F F 40 46 284 Baldor
GR 7845
3 213TC 1.15 208-230/460 90.2 F L 26.5-25.5/12.8 30.5-28.5/14.5 239-252/127 ML
15 3 254TCZ 1.15 208-230/460 90.2 F K 37.5-34/17 42.5-39/19.5 270-304/152 Baldor
20 3 254TCZ 1.15 208-230/460 90.2 F K 47-46/23 53-52/26 355-412/206 Baldor
25 3 284TSCZ 1.15 230/460 91 F J 56/28 64/32 498/249 Baldor
30 3 286TSCZ 1.15 230/460 91 F G 70/35 78/39 450/225 Baldor
40 3 286TSC 1.15 230/460 91.7 F G 88/44 102/51 614/307 Baldor
50 3 326TSCZ 1.15 230/460 93 F G 110/55 128/64 746/393 Baldor
60 3 364TSCZ 1.15 230/460 93 F G 134/67 154/77 918/459 Baldor
75 3 365TSCZ 1.15 230/460 93 F G 166/83 188/94 1162/581 Baldor
100 3 405TSCZ 1.15 230/460 93.6 F G 216/108 246/123 1422/711 Baldor
