Technical data
71
1)
Weights are based on pump with TEFC motor (see price list for individual weights).
2)
CR 5" flange is not manufactured to ANSI specification. Gasket contact surface is approximately 0.25". CR 6" ANSI flange adapter is manufactured to
ANSI B16.5 specification.
All dimensions in inches unless otherwise noted.

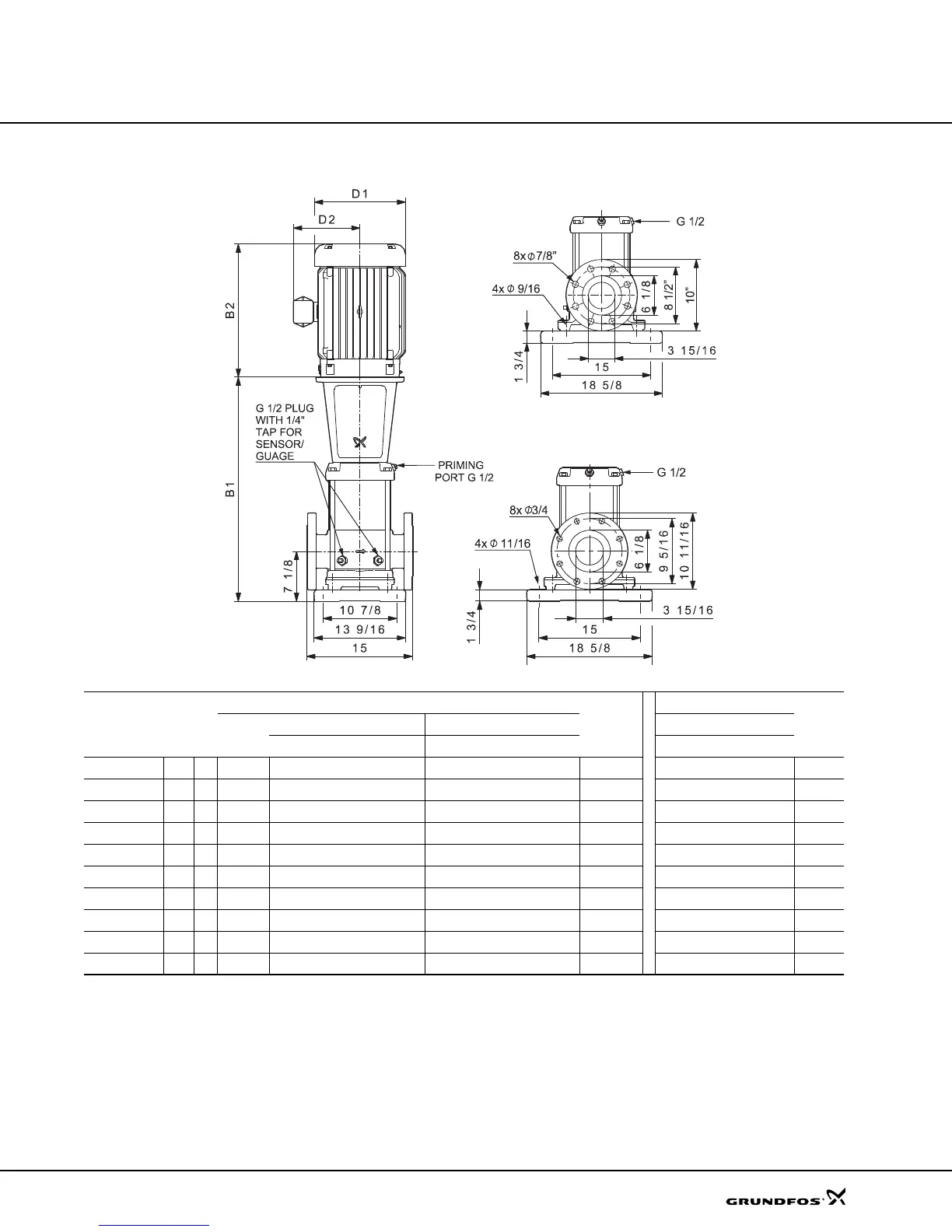

TM04 9633 4810
4-5 STAGES
5" FLANGE
2)
300 LB R.F.
1-3 STAGES
5" FLANGE
2)
150 LB R.F.
Pump type
P2
[hp]
Ph.
Dimensions [inch]
Ship Wt.
1)
[lbs.]
Dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC ODP MLE
D1 D2 B1+B2 D1 D2 B1+B2 D1 D2 B1+B2
CRN(E) 150-1-1 25 3
32.83 12.94 11.52 52.65 11.50 8.94 53.64 514
13.39 12.13 55.55 568
CRN(E) 150-1 30 3
32.83 15.32 13.11 56.02 11.50 8.94 54.64 675
13.39 12.13 55.55 594
CRN 150-2-2 40 3
38.98 15.32 13.11 62.17 13.25 12.21 62.23 711
-- - -
CRN 150-2-1 50 3
38.98 16.88 14.12 66.79 13.25 12.21 61.73 741
-- - -
CRN 150-2 60 3
38.98 19.00 14.90 69.77 15.12 13.19 65.11 922
-- - -
CRN 150-3-2 75 3
45.55 19.00 14.90 76.34 15.18 13.19 71.68 1184
-- - -
CRN 150-3-1 75 3
45.55 19.00 14.90 76.34 15.18 13.19 71.68 1184
-- - -
CRN 150-3 100 3
45.55 19.00 17.38 76.37 15.12 27.38 72.93 1222
-- - -
CRN 150-4-2 100 3
51.69 19.00 17.38 82.51 15.12 27.38 79.07 1243
-- - -
CRN 150-4-1 100 3
51.69 19.00 17.38 82.51 15.12 27.38 79.07 1243
-- - -
CRN 150
