Grundfos CRE Series Product Guide

Technical data
70
D
1)
Weights are based on pump with TEFC motor (see price list for individual weights).
2)
CR 5" flange is not manufactured to ANSI specification. Gasket contact surface is approximately 0.25". CR 6" ANSI flange adapter is manufactured to
ANSI B16.5 specification.
All dimensions in inches unless otherwise noted.

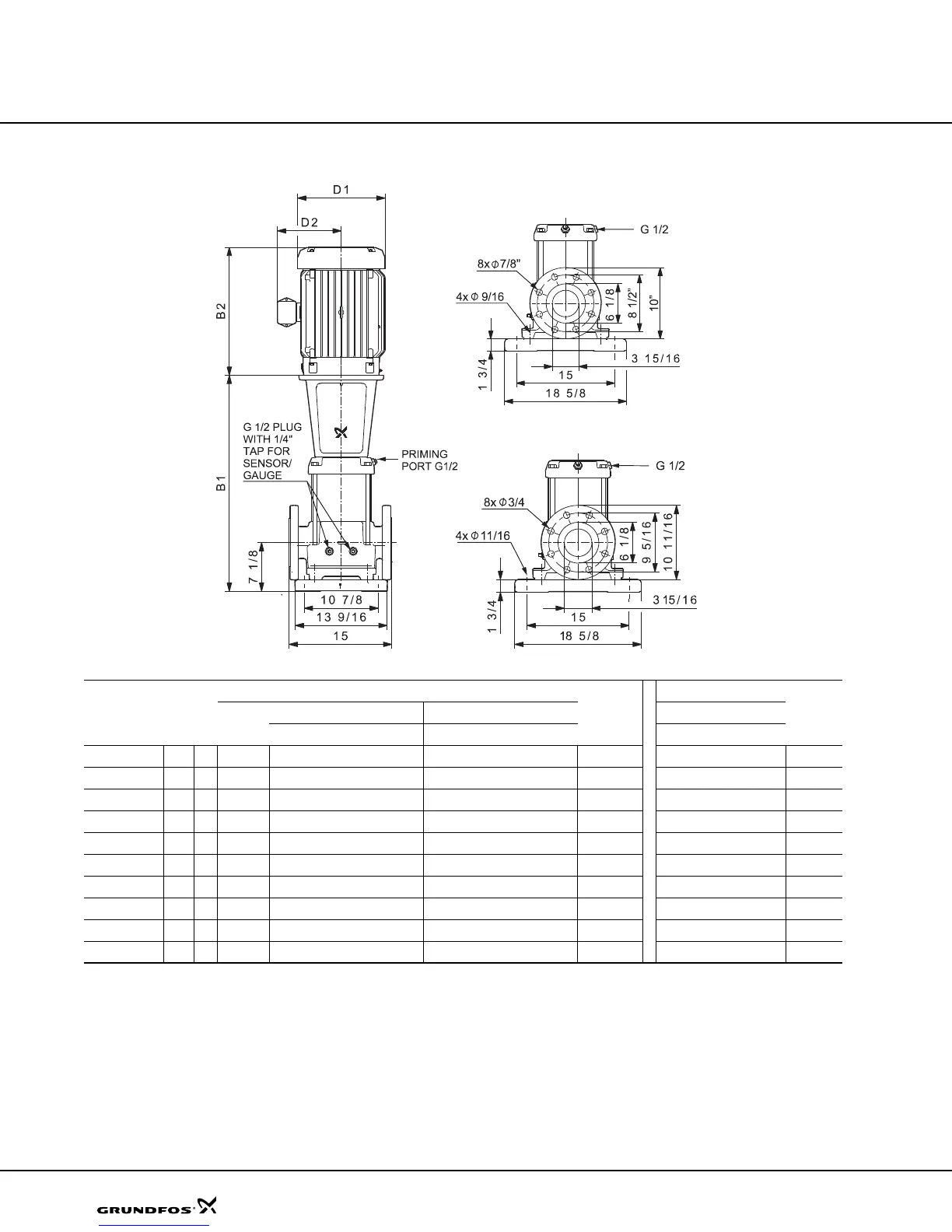

TM04 9632 4810
4-5 STAGES
5" FLANGE
2)
250 LB R.F.
1-3 STAGES
5" FLANGE
2)
125 LB R.F.
Pump type
P2
[hp]
Ph.
Dimensions [inch]
Ship Wt.
1)
[lbs.]
Dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC ODP MLE
D1 D2 B1+B2 D1 D2 B1+B2 D1 D2 B1+B2
CR(E) 150-1-1 25 3
32.83 12.94 11.52 52.65 11.50 8.94 53.64 507
13.39 12.13 55.55 561
CR(E) 150-1 30 3
32.83 15.32 13.11 56.02 11.50 8.94 54.64 669
13.39 12.13 55.55 587
CR 150-2-2 40 3
38.98 15.32 13.11 62.17 13.25 12.21 62.23 705
--- -
CR 150-2-1 50 3
38.98 16.88 14.12 66.79 13.25 12.21 61.73 735
--- -
CR 150-2 60 3
38.98 19.00 14.90 69.77 15.12 13.19 65.11 915
--- -
CR 150-3-2 75 3
45.55 19.00 14.90 76.34 15.18 13.19 71.68 1178
--- -
CR 150-3-1 75 3
45.55 19.00 14.90 76.34 15.18 13.19 71.68 1178
--- -
CR 150-3 100 3
45.55 19.00 17.38 76.37 15.12 13.19 72.93 1215
--- -
CR 150-4-2 100 3
51.69 19.00 17.38 82.51 15.12 13.19 79.07 1234
--- -
CR 150-4-1 100 3
51.69 19.00 17.38 82.51 15.12 13.19 79.07 1234
--- -
CR 150

Grundfos CRE Series Specifications

General

Motor Type	Asynchronous
Enclosure Class	IP55
Insulation Class	F
Series	CRE
Protection Class	IP55
Material	Stainless Steel
Applications	Water Supply, Pressure Boosting, Irrigation
Pumped liquid	Clean liquids
Approvals	CE
Voltage	380-415V
Connection Size	DN 32 to DN 100
Efficiency	IE3 Premium Efficiency
Power Supply	3-phase
Liquid Temperature Range	-10°C to +120°C
Temperature Range	-10°C to +120°C
