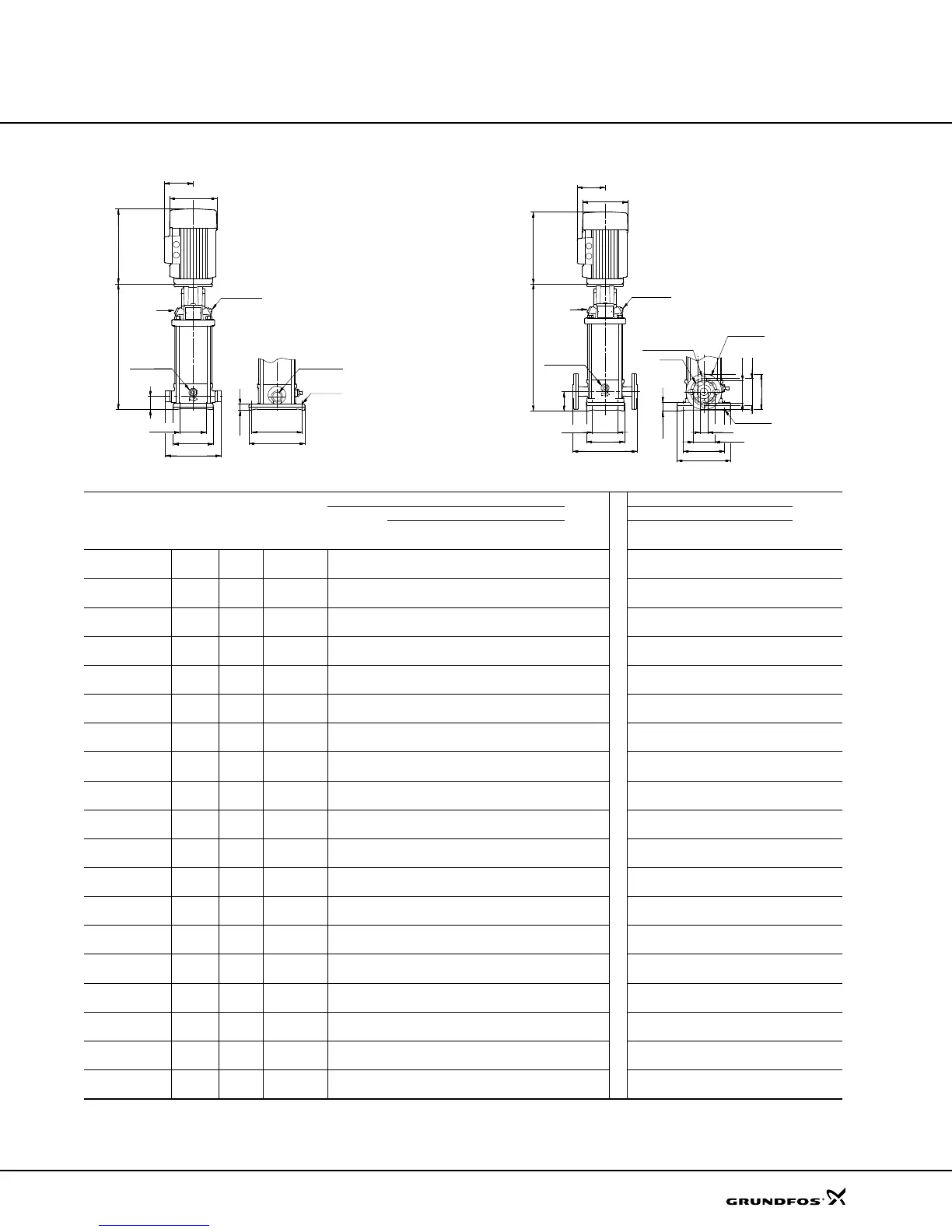

Technical data
41
All dimensions in inches unless otherwise noted. • Available.
*PJE flanged pump B1 and B1+B2 dimension is one inch less than ANSI flanged pumps and weight is approximately 9 lbs. less.
TM03 1454 2205
G 1/2 PLUG
B1
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
1 1/4" Victaulic-type
PLUG (G 1/2)
DRAIN
4 x 1/2"
2"
13/16"
5 15/16"
3 15/16"
8 1/4"
7 1/16"
8 5/16"
B2
D2
D1
TM03 1453 2205
G 1/2 PLUG
B1
WITH 1/4"TAP
FOR GAUGE/
SENSOR
PRIMING
PORT (G 1/2)
DISCHARGE
SUCTION AND
1 1/4"300 lb.R.F.
PLUG (G 1/2)
DRAIN
3"
3/4 x 1 1/16"
ø1 1/4"
ø5 1/2"
1 3/8"
5 15/16"
3 15/16"
9 7/8"
ø4 1/8"
ø3 1/2"
7 1/16
8 1/4"
4 x ø1/2"
ø1/2"
ø3 3/8"
B2
D2
D1
Pump type
P2
[hp]
Ph. PJE*
ANSI dimensions [inch]
Ship Wt.
[lbs.]
ANSI dimensions [inch]
Ship Wt.
[lbs.]
B1
TEFC MLE
D1 D2 B1+B2 D1 D2 B1+B2
CRN(E) 5-2 3/4
1 • 12.09 6.19 5.18 22.00 71 5.55 5.51 19.51 66
3 • 12.09 5.55 4.57 19.53 62 - - - -
CRN(E) 5-3 1
1 • 13.15 7.19 5.73 24.34 85 - - - -
3 • 13.15 5.55 4.57 20.59 64 7.01 6.57 25.95 83
CRN(E) 5-4 1 1/2
1 • 14.21 7.19 5.73 25.89 89 5.55 5.51 23.19 74
3 • 14.21 5.55 4.57 22.83 65 7.01 6.57 27.01 87
CRN 5-5 2
1 • 15.28 7.19 5.73 27.84 101 - - - -
3 • 15.28 7.01 4.33 26.50 88 - - - -
CRN(E) 5-6 2
1 • 16.34 7.19 5.73 28.90 103 - - - -
3 • 16.34 7.01 4.33 27.56 90 7.01 6.57 29.14 106
CRN 5-7 3
1 • 18.51 8.60 6.87 33.16 136 - - - -
3 • 18.51 7.01 4.33 31.74 107 - - - -
CRN 5-8 3
1 • 19.57 8.60 6.87 34.22 138 - - - -
3 • 19.57 7.01 4.33 32.80 109 - - - -
CRN(E) 5-9 3
1 • 20.63 8.60 6.87 35.28 139 - - - -
3 • 20.63 7.01 4.33 33.86 110 7.01 6.57 33.94 120
CRN 5-10 5
1 • 21.69 10.62 7.46 37.21 163 - - - -
3 • 21.69 8.66 5.28 37.20 160 - - - -
CRN 5-11 5
1 • 22.76 10.62 7.46 38.28 165 - - - -
3 • 22.76 8.66 5.28 38.27 161 - - - -
CRN 5-12 5
1 • 23.82 10.62 7.46 39.34 170 - - - -
3 • 23.82 8.66 5.28 39.33 163 - - - -
CRN(E) 5-13 5
1 • 24.88 10.62 7.46 40.40 171 - - - -
3 • 24.88 8.66 5.28 40.39 164 8.66 7.40 40.39 159
CRN 5-14 5
1 • 25.94 10.62 7.46 41.46 172 - - - -
3 • 25.94 8.66 5.28 41.45 169 - - - -
CRN(E) 5-15 5
1 • 27.01 10.62 7.46 42.53 173 - - - -
3 • 27.01 8.66 5.28 42.52 170 8.66 7.40 42.52 161
CRN(E) 5-16 5
1 • 28.07 10.62 7.46 43.59 175 - - - -
3 • 28.07 8.66 5.28 43.58 171 8.66 7.40 43.58 163
CRN 5-18 7 1/2
1 • 30.71 10.22 7.62 46.24 193 - - - -
3 • 30.71 8.66 5.28 46.22 180 - - - -
CRN(E) 5-20 7 1/2
1 • 32.83 10.22 7.62 48.36 196 - - - -
3 • 32.83 8.66 5.28 48.34 183 8.66 7.40 48.34 196
CRN 5-22 7 1/2
1 • 34.96 10.22 7.62 50.49 292 - - - -
3 • 34.96 8.66 5.28 50.47 279 - - - -
CRN(E) 5-24 7 1/2
1 • 37.09 10.22 7.62 52.62 295 - - - -
3 • 37.09 8.66 5.28 52.60 282 8.66 7.40 52.60 295
CRN(E) 5
