English (GB)
12

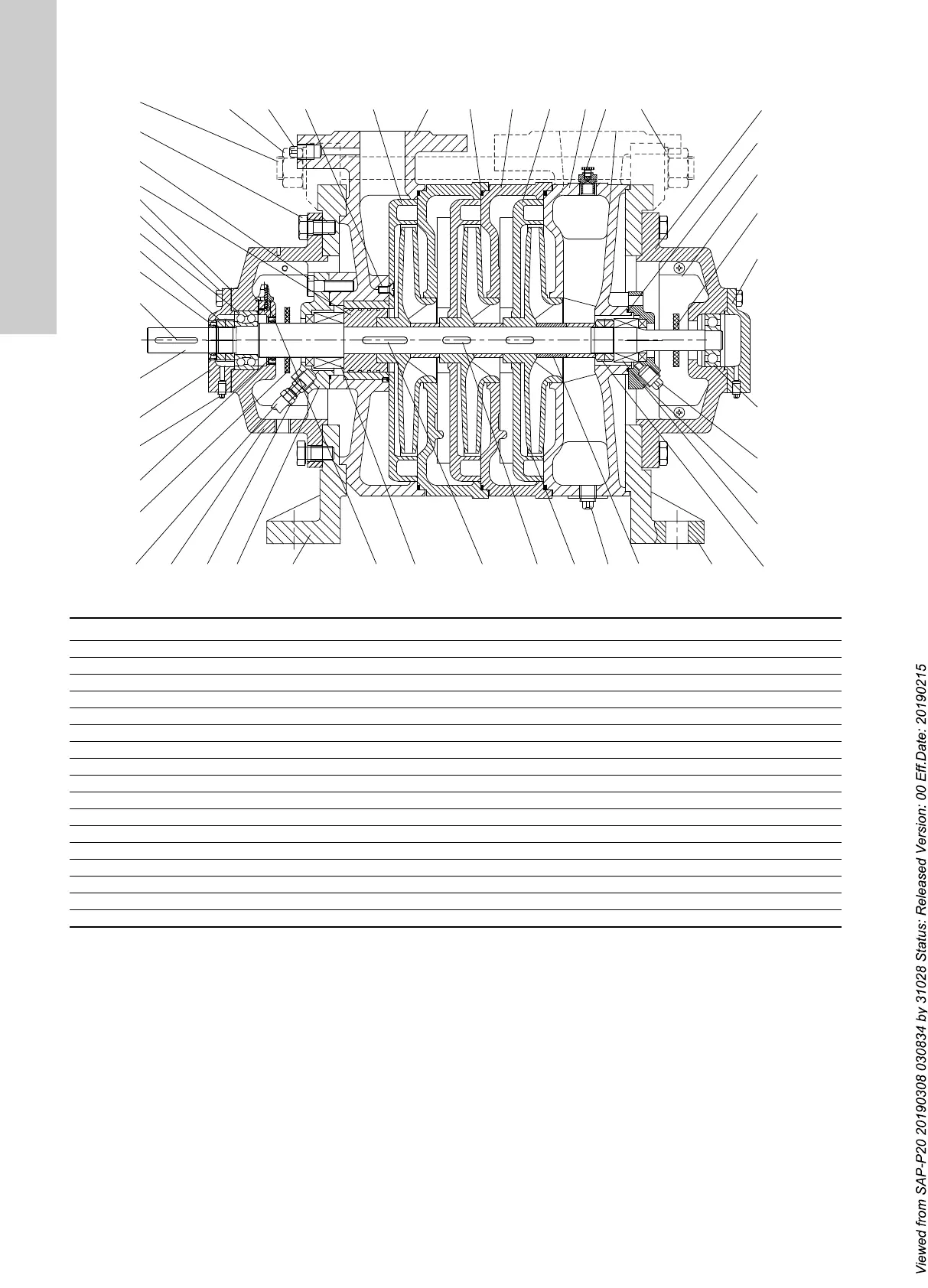

7.5 CHM, sectional drawing and parts list
Fig. 8 CHM pump construction
TM07 1182 1018
f2
a2
a3
a8
f1
a4
a1
a22
b4
c10
a22
f5
f3 b5 b2 d1 d2
d1
b7
f4
a21
a12
a13
a17
a20
a19
c9
a10
c2 c1 b6 d3 c4
c7
c5
c6
a23a16 f7f8 c8 a11
a6
b8
b9a7
b1
c11
b3
a9
Pos. Description Pos. Description Pos. Description
a1 Plug pipe a20 Slinger c6 O-ring
a2 Lip seal a21 Bearing frame c7 Seal assembly
a3 Round nut a22 Bolt c8 Connector
a4 Bearing cover a23 Connection seat c9 Seal cap
a5 Bearing sleeve b1 Plug pipe c10 Bolt
a6 Paper gasket b2 Outlet casing c11 Plug pipe
a7 Bearing frame b3 End-stage guide-vane d1 Guide vane
a8 Bearing b4 Balance hub d2 Middle casing
a9 Lip seal b5 Bolt d3 Key
a10 Slinger b6 Key f1 Shaft
a11 Grease b7 Inlet casing f2 Key
a12 Guard b8 Vent Screw f3 Nut
a13 Guard c1 Seal assembly f4 Washer
a16 Connection seat c2 Seal cap f5 Stud
a17 Bearing cover c3 Washer f6 O-ring
a18 Bolt c4 Middle sleeve f7 Impeller
a19 Bearing c5 Round nut f8 Tubing
