5.4 Installation example

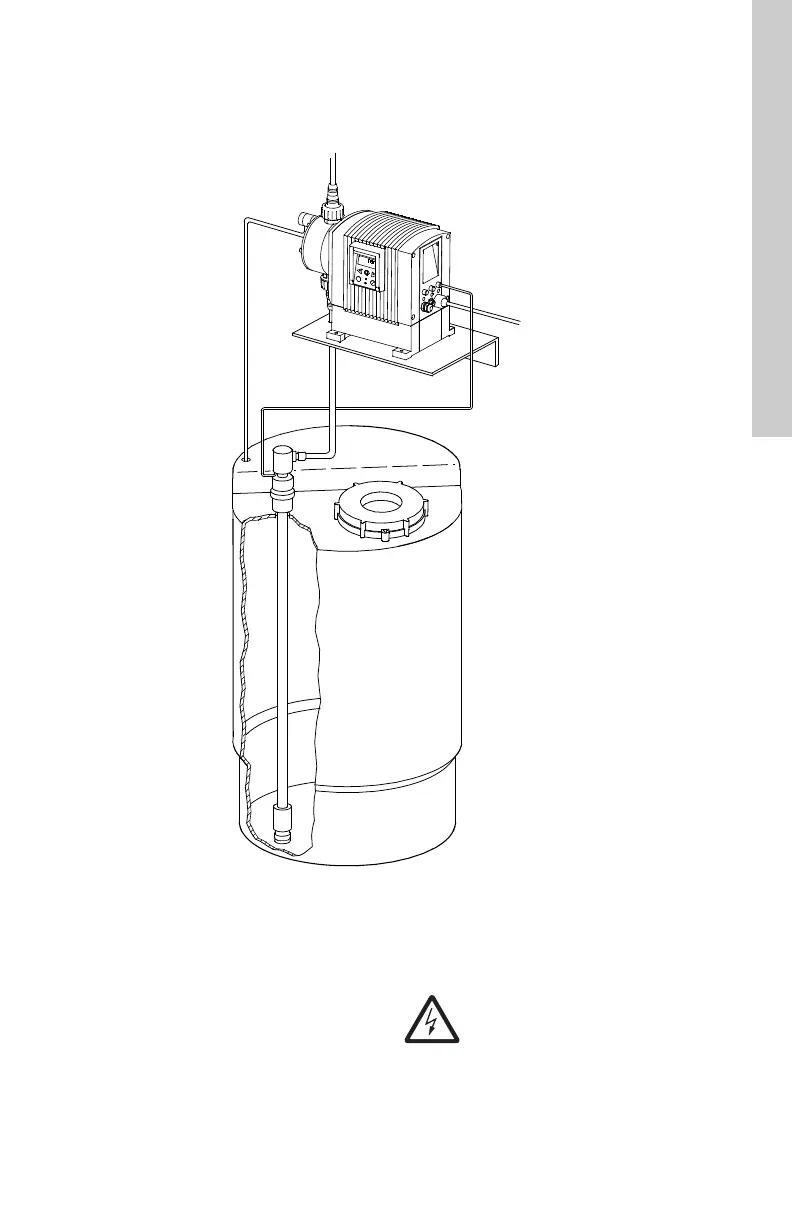

The drawing in fig. 3 shows an installation example.
The DME pump can be installed in many different ways. The sketch below shows an example with side-fitted
control panel. The tank is a Grundfos chemical tank with a Grundfos level control unit.
Fig. 3
5.5 Electrical connection
The electrical connection of the pump should be
carried out by qualified persons in accordance
with local regulations.
For electrical data of the pump, see section
4.2 Electrical data.
Do not lay signal cables, if any, together with
power cables.
Do not plug DME 375 or 940 pumps into a GFCI
outlet or GFCI breaker.
TM02 7065 0604
Warning
Danger to life due to non-tripping of the
residual current device (RCD)!
If the pump is connected to an electric
installation where a residual current
device (RCD) is used as an additional
protection, this RCD must trip when
ground fault currents with DC content
(pulsating DC) and smooth DC ground
fault currents occur. This means that a
RCD type B, sensitive to universal current,
must be used.
