20
English (US)

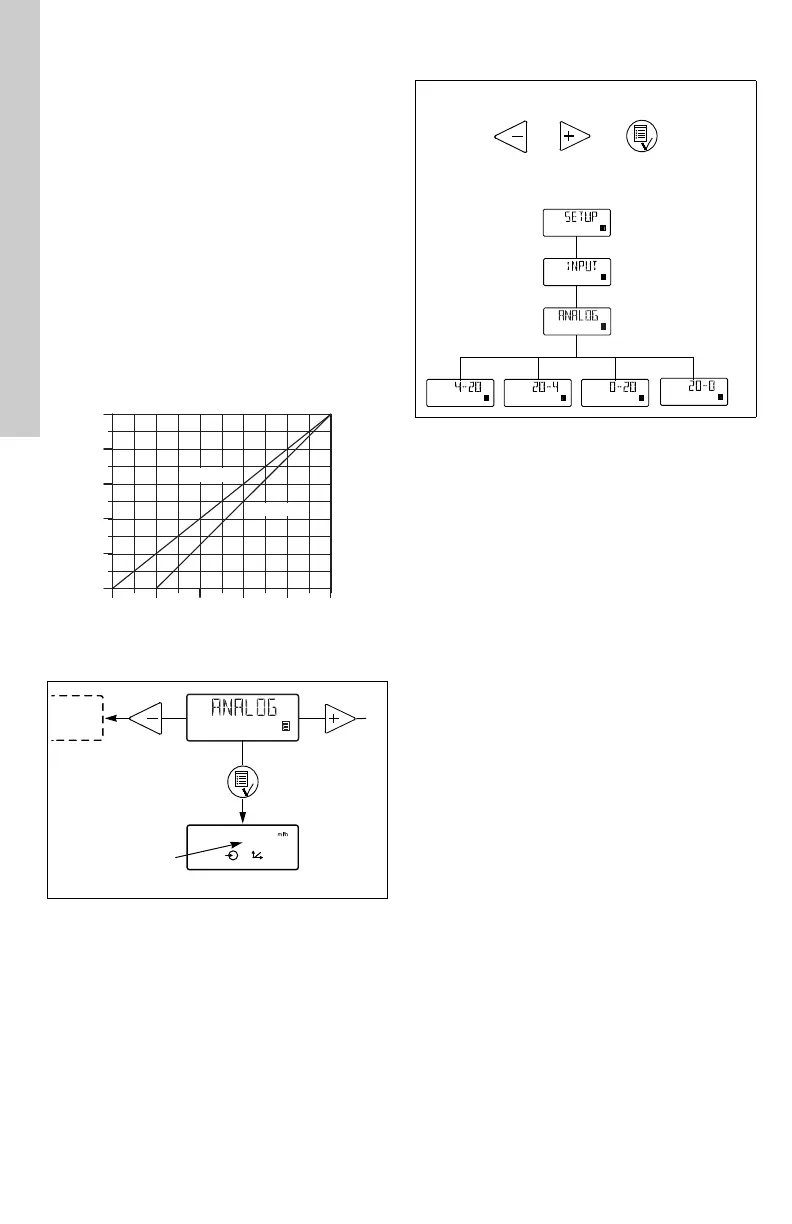

6.12 Analog
The pump is dosing according to an external analog
signal. The dosed quantity is proportional to the input
value in mA.
4-20 (default): 4 mA = 0 %.
20 mA = 100 %.
20-4: 4 mA = 100 %.
20 mA = 0 %.
0-20: 0 mA = 0 %.
20 mA = 100 %.
20-0: 0 mA = 100 %.
20 mA = 0 %.
See fig. 10.
The capacity limitation will influence the capacity.
100 % corresponds to the maximum capacity of the
pump or the set maximum capacity, see section
6.16 Capacity limitation.
The analog input requires a signal which is isolated
from frame. Min. resistance to frame: 50 kΩ
Fig. 10
Fig. 11
If 4-20 mA or 20-4 mA is selected and the signal falls
below 2 mA, the pump will indicate a fault.
This situation occurs if the connection is interrupted,
for instance if the wire is damaged.
Change the analog mode as illustrated in fig. 12:
Fig. 12
TM02 4498 1102
0 4 8 12 16 20
0
20
40
60
80
100
Value according to
analog signal
