Application examples
SQFlex
SQFlex Solar

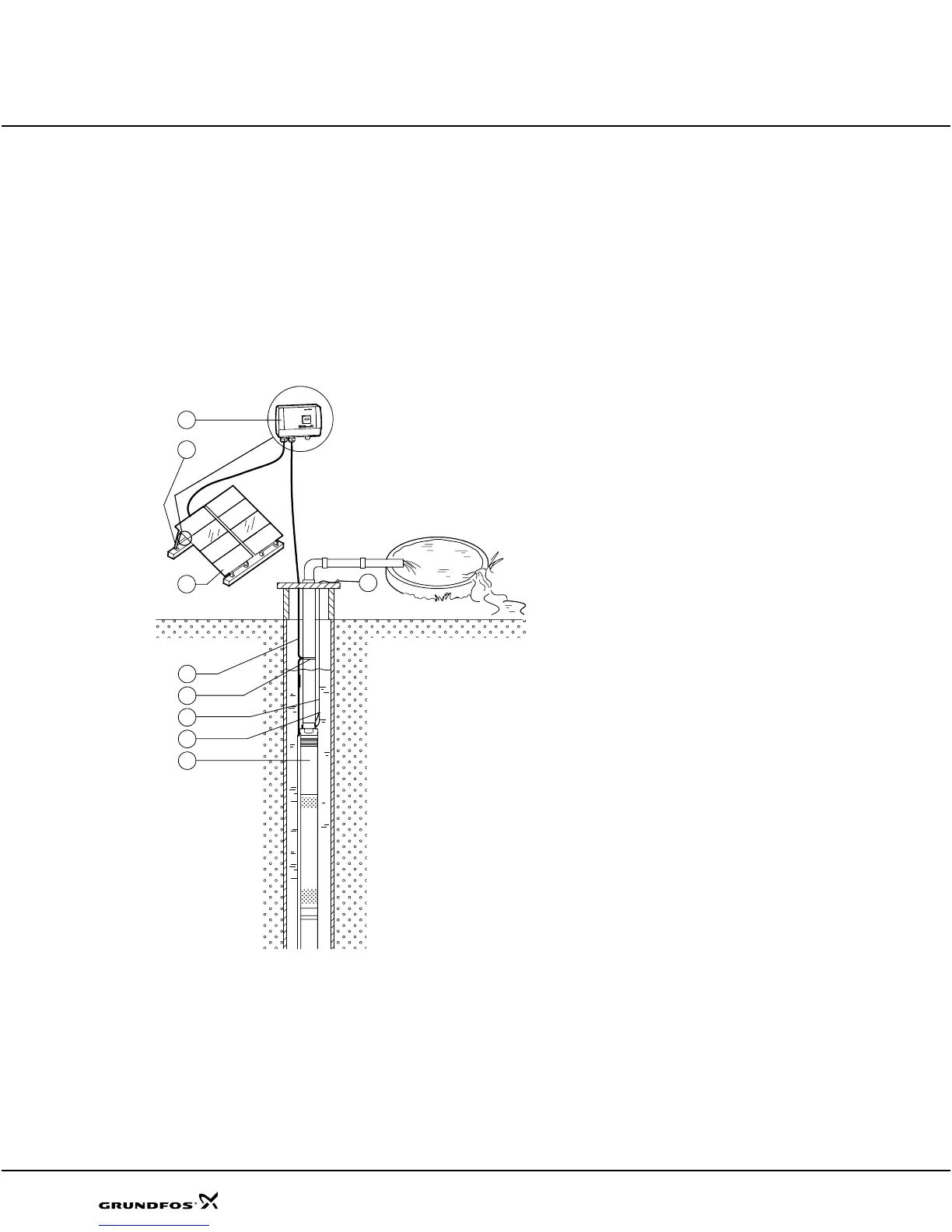

The SQFlex Solar system is the simplest of the range
of SQFlex systems.
Benefits
• Easy to install
• Maintenance confined to periodic cleaning of the
solar panels
• Few and simple components.
The protective circuit incorporated in the motor elec-
tronic unit cuts out the pump in case of dry running or
similar situations.
By using the IO 100 switch box, the voltage supply to
the pump can be closed manually, e.g. when ...
• there is no need for water supply
• the system requires service.
TM02 2304 4101
2
3
4
5
1
6
7
12
5
1 SQF pump
2Cable
3Cable clips
4 Straining wire
5 Wire clamp
6 Solar panels
7 Support structure
12 IO 100 switch box
Note: For the number of solar modules
required, please consult the Sizing tool.
