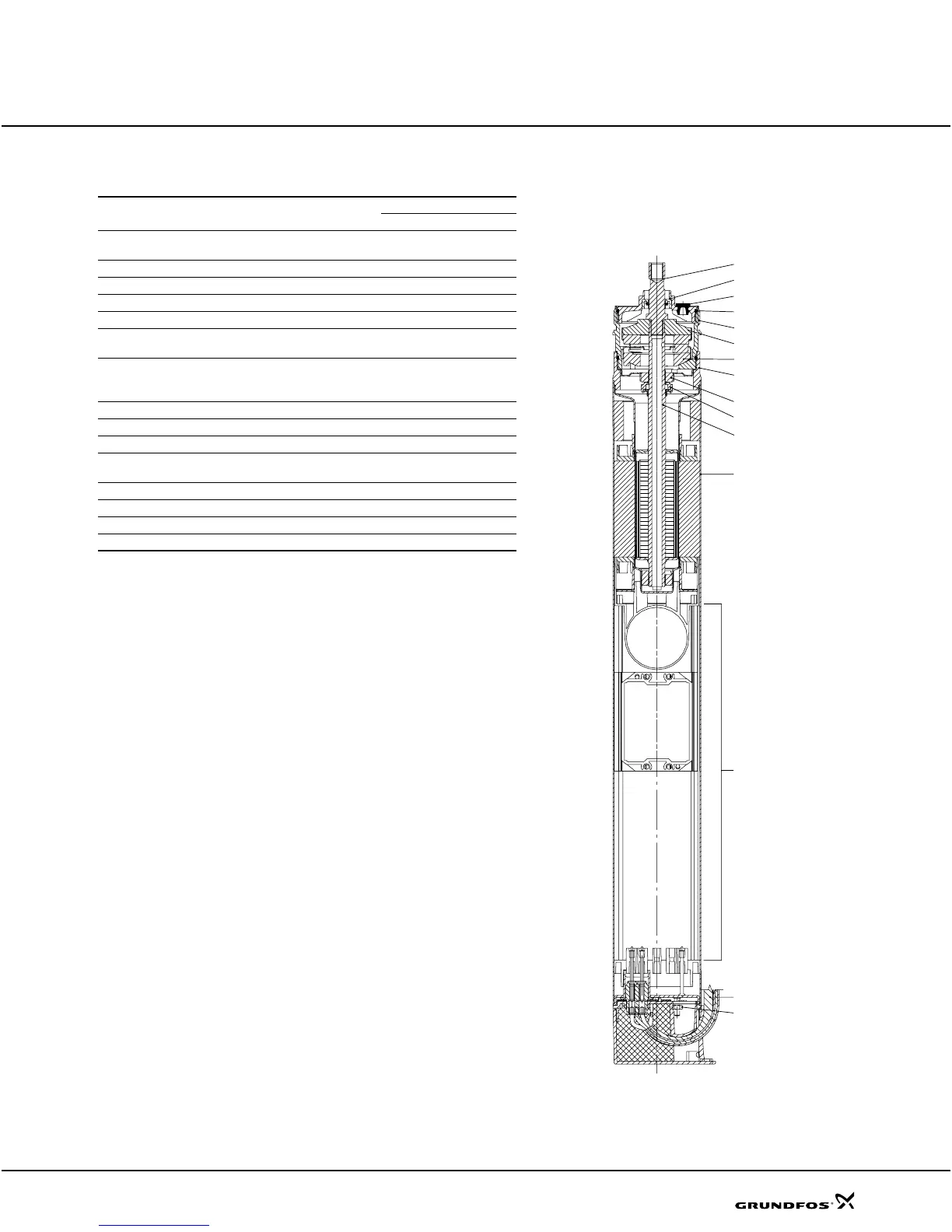

Technical data
SQFlex
Material specification - motor
Pos. Description Material
MFS 3
MFS 3
TM02 2215 3901
EN/DIN AISI
201
Stator with sleeve,
complete
Stainless steel 1.4301 304
202 Rotor Stainless steel 1.4301 304
202a Stop ring PP
202c Shaft end Stainless steel 1.4401 316
203 Thrust bearing, stationary Stainless steel/carbon 1.4401 316
205
Bearing plate with radial
bearing
Silicon carbide 1.4301 304
206 Thrust bearing, rotating
Stainless steel/
aluminium oxide
Al
2
O
3
1.4401 316
220 Motor cable with plug
222a Filling plug NBR
223 Electronic unit
224 O-ring
Standard version:
NBR.
225 Top cover PPS
232 Shaft seal MFS 3: NBR.
243 Thrust-bearing housing Stainless steel 1.4408 316
250 Nut (M4) Stainless steel 1.4401 316
232
222a
224
225
201
202
205
202a
223
220
250
202c
206
203
243
