System components
SQFlex
IO 102
The IO 102 breaker box is designed specifically for
wind powered SQFlex systems.
The IO 102 enables manual starting and stopping of the
pump in an SQFlex Wind system and an SQFlex
Combo system.
The on/off switch has a built-in electrical brake for the
turbine. When the switch is in the "off" position, the
turbine stops or slows down.
The IO 102 rectifies the three-phase AC voltage from
the wind turbine into DC voltage. Furthermore, the IO
102 enables the combination of wind energy from the
wind turbine and solar energy from the solar panel.
At the same time, the IO 102 also functions as a
connection box joining all necessary cables.

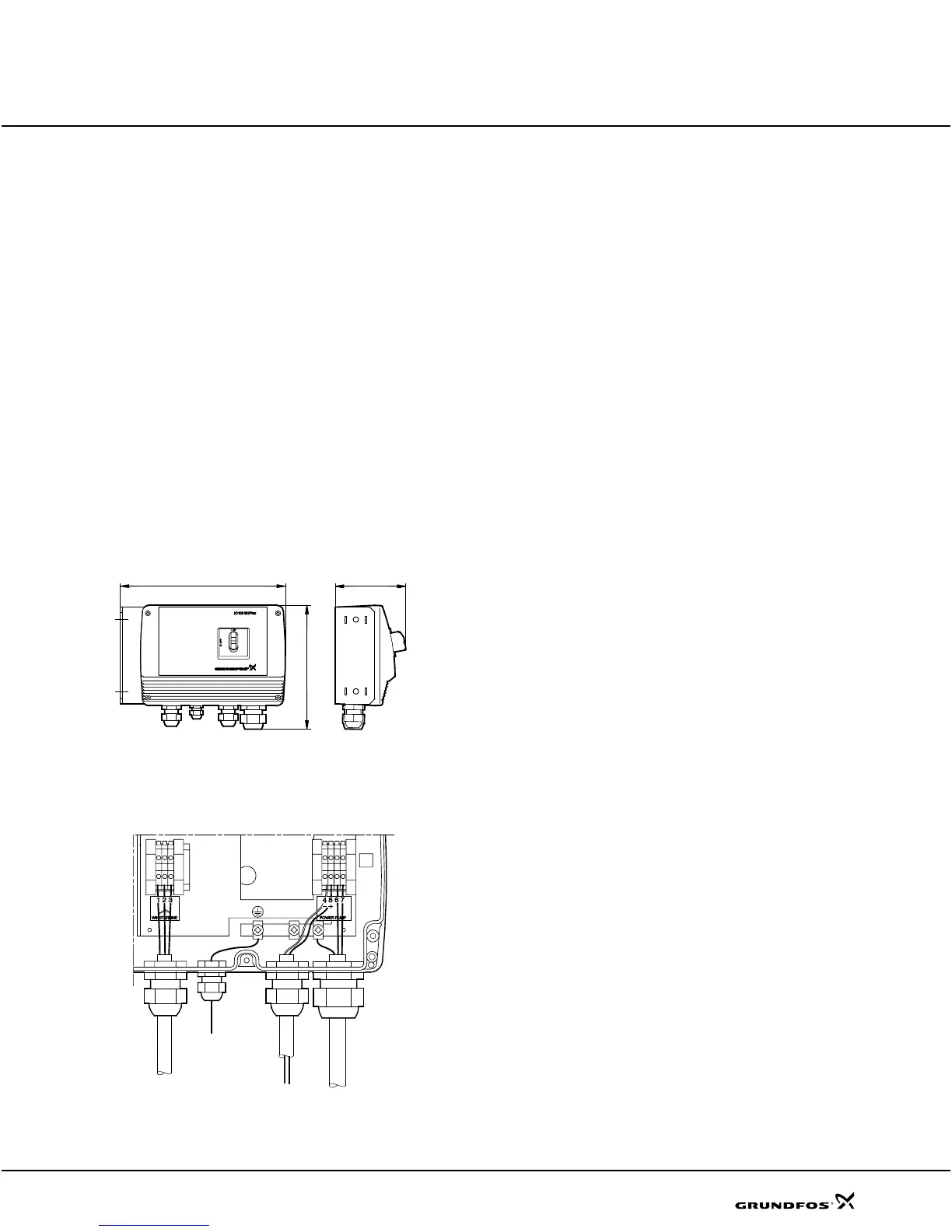

Dimensions and wiring diagram of the IO 102 are
shown below.
Dimensions, IO 102
Dimensions stated in inches.
Electrical connections, IO 102
Generator
The generator can be either diesel or gasoline driven.
The generator must be running steadily before the
pump is cut in.
TM02 8733 0804TM02 4312 0502
7.75"
10.5"
4.5"
PumpPower
PE
Wind turbine
PE
_
+
