6.3 Identification
6.3.1 Nameplate example for JP PS
TM074087

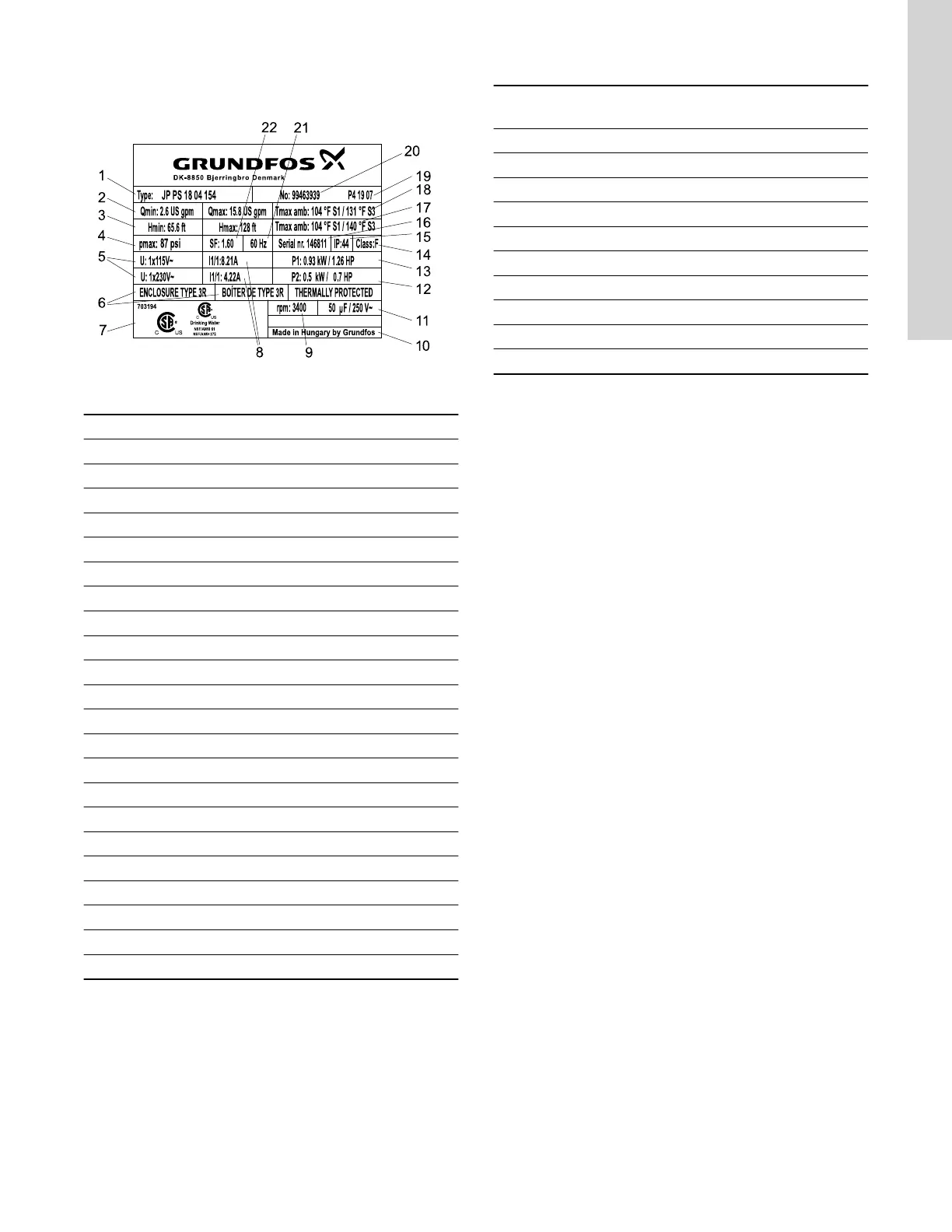

Fig. Nameplate, JP PS
Pos. Description
1 Type (see the type key)
2 Min. flow rate and max. flow rate [gpm]
3 Min. head and max. head [ft]
4 Max. pressure [psi]
5 Supply voltage [V]
6 Enclosure type
7 Approvals
8 Full-load current [A]
9 Speed of rotation [rpm]
10 Country of origin
11 Capacitor data
12 Power consumption [Hp]
13 Rated power [Hp]
14 Insulation class
15 Enclosure class
16 Serial number
17 Max. liquid temperature [°F]
18 Max. ambient temperature [°F]
19 Factory, production code, year and week
20 Product number
21 Frequency
22 Service factor
Related information
3.1 Inspecting the product
6.3.2 Type key, JP PS
Example:
JP PS 18-05-154 1x115/230V 60 Hz Conduit XX
Type designation Description
JP Jet pump
PS Pressure switch
18 Nominal flow rate [US gpm]
05 Horsepower [Hp]
154 Max. head [ft]
1x115/230V Dual voltage (115 or 230 V)
60 Hz Frequency [Hz]
Conduit Type of power connection
XX Country of origin (Example: HU (Hungary)
