4.2.3 Installation examples
We recommend that you follow the installation examples.
Valves are not supplied with the pump.

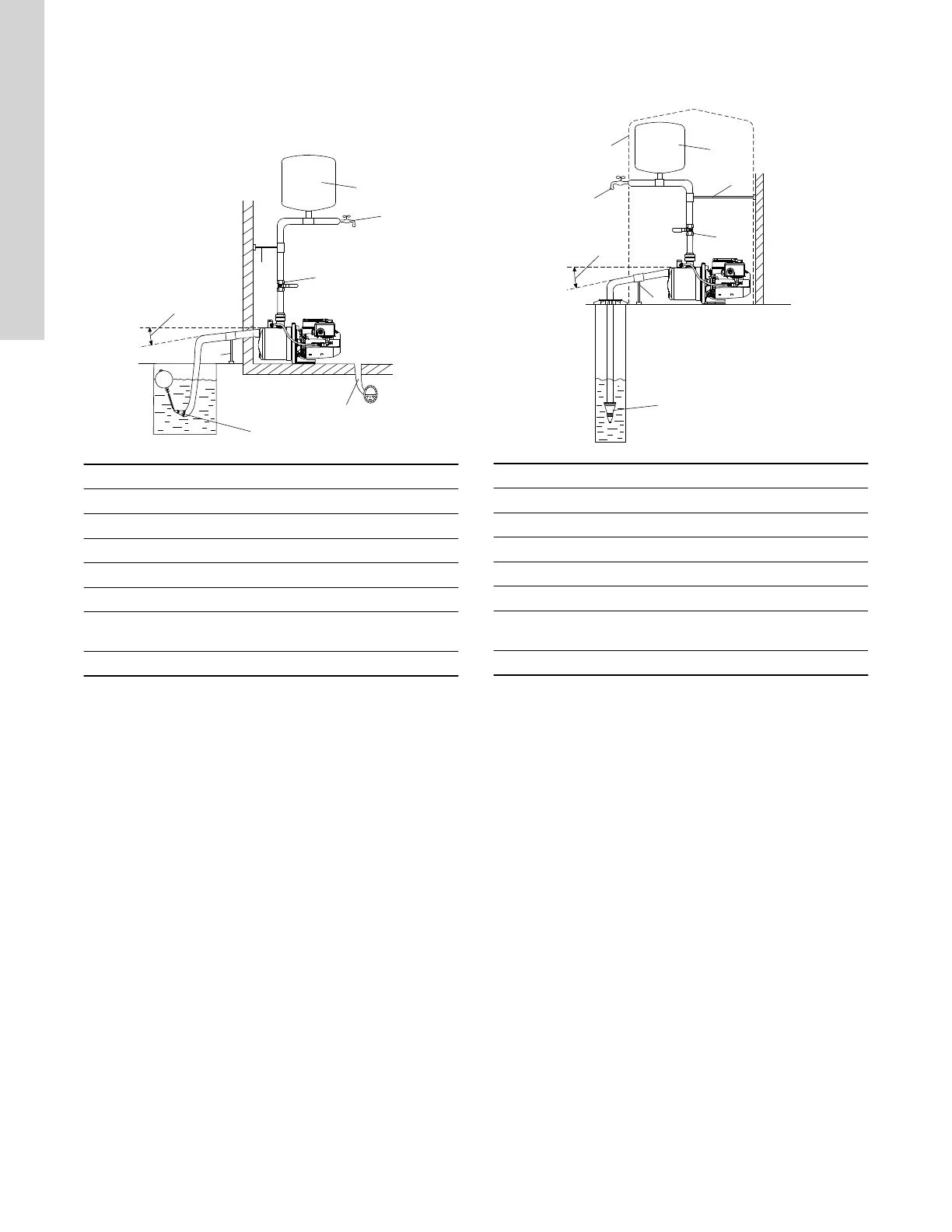

4.2.3.1 Suction from a tank
1
2
3
3
6
5
7
4
TM073986
Pos. Description
1 Highest faucet
2 Isolating valve
3 Pipe support
4 Pressure tank
5 Drain to sewer
6
Strainer. A foot valve is optional. We recommend using a
foot valve together with JP PS.
7 Slight downward slope
4.2.3.2 Suction from a well (outdoor installation)
6
1
7
2
3
3
5
4
TM073984
Pos. Description
1 Highest faucet
2 Isolating valve
3 Pipe support
4 Pressure tank
5 Slight downward slope
6
Foot valve with strainer. The foot valve is optional. We
recommend using a foot valve with a JP PS installation.
7 Pump and tank cover
