2. Downloading the firmware package
The firmware package is downloaded from Grundfos Technical
Information (GTI) which is found on Insite under "Toolbox", "LC
Controller (LC 231/241/232/242) Firmware Upgrade".
In GTI, there are two files that contain firmware:
• "LCLCD.zip" contains firmware for both LC 231 and LC 241 (CU
241), including IO 241 and IO 242.
• "SPC.zip" contains firmware for both LC 232 and LC 242 (CU
242), including IO 241 and IO 242.
1. Go to Grundfos Insite and select "Toolbox".
2. Select "GTI - Grundfos Technical information".
3. Select "LC Controller (LC 231/241/232/242) Firmware Upgrade".
4. Select either "LCLCD.zip" for LC 231/LC 241 or "SPC.zip" for
LC 232/242.
5. Download the file to your PC and unzip the folder.
6. Copy the folders you need (LCLCD or SPC) to a USB stick.
The firmware package consists of one ZIP file which should
be unzipped and copied to a USB stick. The USB stick should
contain one folder called "LCLCD" or "SPC", which contains all
the binary files for updating. The .cbin and .xcbin files are the
firmware files, and the autorun.txt file contains information
about hardware and software.

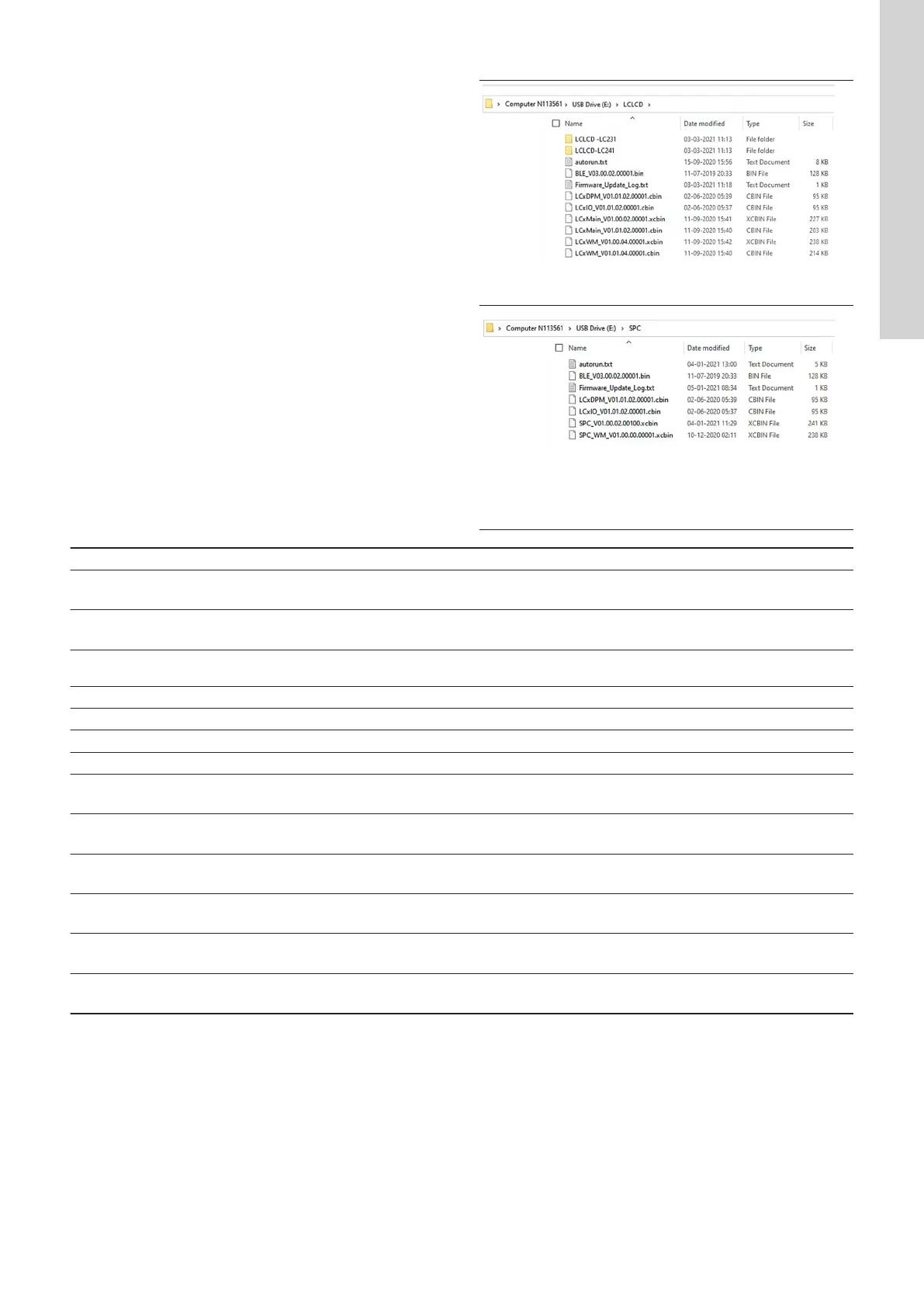

Example of the available files for LCLCD and SPC
LCLCD
SPC
Folder or file name Description
LCLCD-LC231
LCLCD only.
Folder for LC 231 if the software version is older than V01.00.05.00001.
LCLCD-LC241
LCLCD only.
Folder for LC 241 if the software version is older than V01.00.04.00001.
autorun.txt
Contains information about the hardware versions with references to the related
software versions.
BLE_V03.00.02.0001.bin Bluetooth software.
Firmware_Update_Log.txt Logfile for the update process including error codes if the update is not successful.
LCxDPM_V01.01.02.00001.cbin Software for the IO 242 module.
LCxIO_V01.01.02.00001.cbin Software for the IO 241 module.
LCxMain_V01.00.02.00001.xcbin
LCLCD only.
Software for the LC 24X cabinet solution.
LCxMain_V01.01.02.00001.cbin
LCLCD only.
Software for the LC 24X cabinet solution.
LCxWM_V01.00.04.00001.xcbin
LCLCD only.
Software for the LC 23X compact solution.
LCxWM_V01.01.04.00001.cbin
LCLCD only.
Software for the LC 23X compact solution.
SPC_V01.00.02.00100.xcbin
SPC only.
Software for the LC 24X cabinet solution.
SPC_WM_V01.00.00.00001.xcbin
SPC only.
Software for the LC 23X compact solution.
