Grundfos LC 241 User Manual

4.6 Identification

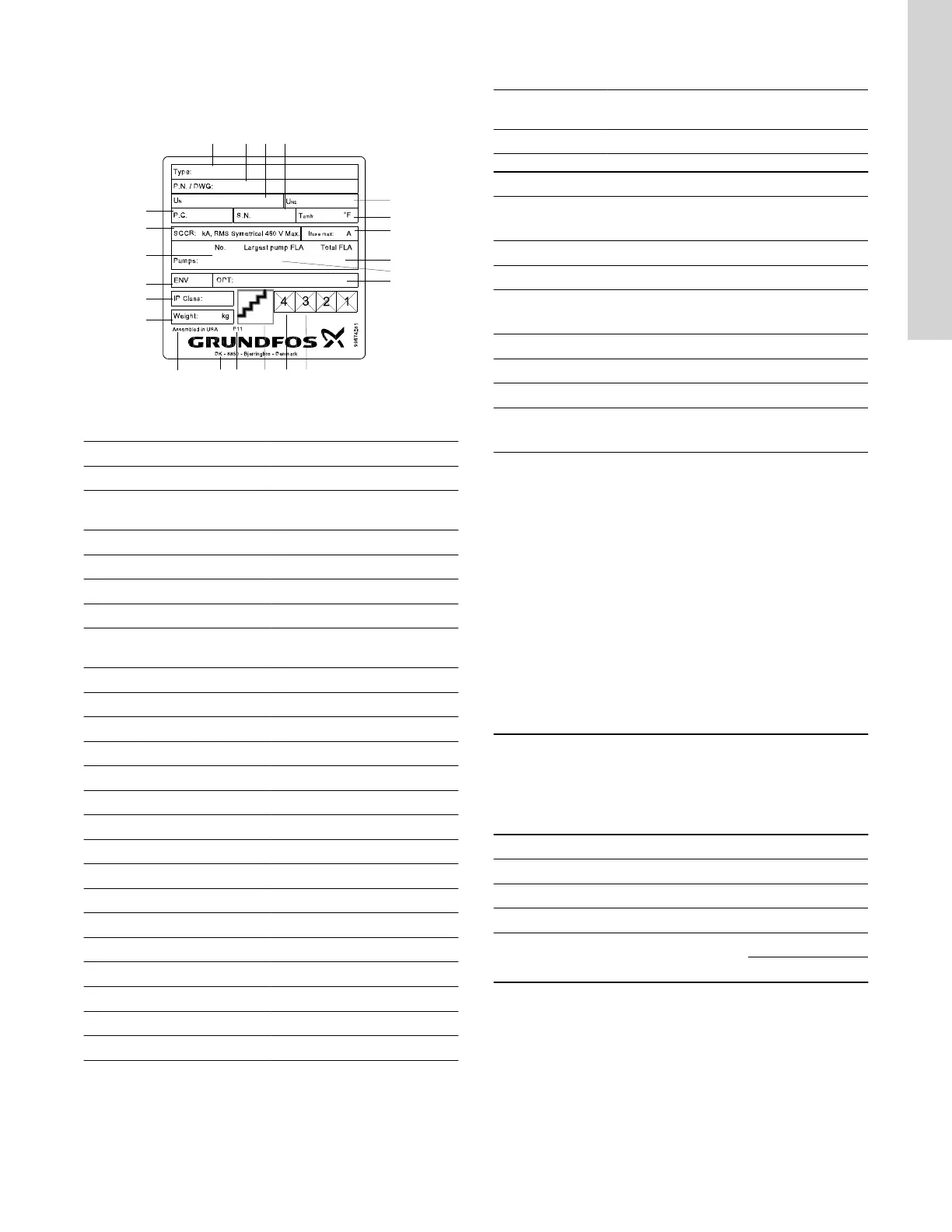

4.6.1 Nameplate
1
2 3
6
4
7
9
5
8
10
12
11
13
15
16
14
17
18
19
21
20
23
TM075056
Pos. Description
1 Product name
2
Material number and Version
number
3 Supply voltage
4 Control power supply voltage
5 Production code, year and week
6 Serial number
7
Minimum to maximum ambient
temperature
8 Short-circuit current rating [kA]
9 Maximum fuse size
10 Number of pumps
11 Largest pump FLA
12 Total FLA
13 Enclosure class
14 Options
15 IP Class
16 Weight
17 WEEE mark
18 Markings and approvals
19 Country of origin
20 Production site
21 Company address
22 Nameplate number
23 QR code
Related information
2.3.1 Protection of control panel
2.3.2 Protection of control power transformer circuit
4.6.2
Type key
Example
LC
241
1x 1-5 DOL 30 150
3 x
208/230/460
PO OPT
Pos. 1 2 3 4 5 6 7 8 9
Pos. Description
1
Type:
• LC 241: panel version
2 Number of pumps supported
3 Current range of pump(s) [A]
4
Starting method:
• DOL: direct-on-line
5 Operating capacitor [µF]
6 Starting capacitor [µF]
7 Supply voltage [V]
8
Panel type:
• PO: Thermoplastic enclosure
9
OPT: Options.
• A: Intrinsically safe, 2 digital, 1 analog
• B: Intrinsically safe, 4 digital
• C: Intrinsically safe, 5 digital, dual pump only
• E: Main disconnect switch
• G: Anti-condensation heater
• M: IO 241
• R: Elapsed time meter, single pump only
• S: Elapsed time meter, dual pump only
• T: Yeomans seal failure relay, single pump only
• W: Yeomans seal failure relay, dual pump only
• X: Lightning arrestor
• Y: 575 V phase monitor, Canada only
• ETO: 304 Stainless steel enclosure
4.7 Supported communication interface modules and
protocols
The following Grundfos communication interface modules can be
added to the product.
Communication interface module
Protocol
CIM 050 GENIbus
CIM 150 PROFIBUS DP
CIM 200 Modbus RTU
CIM 500
Modbus TCP
PROFINET IO
15
English (US)
