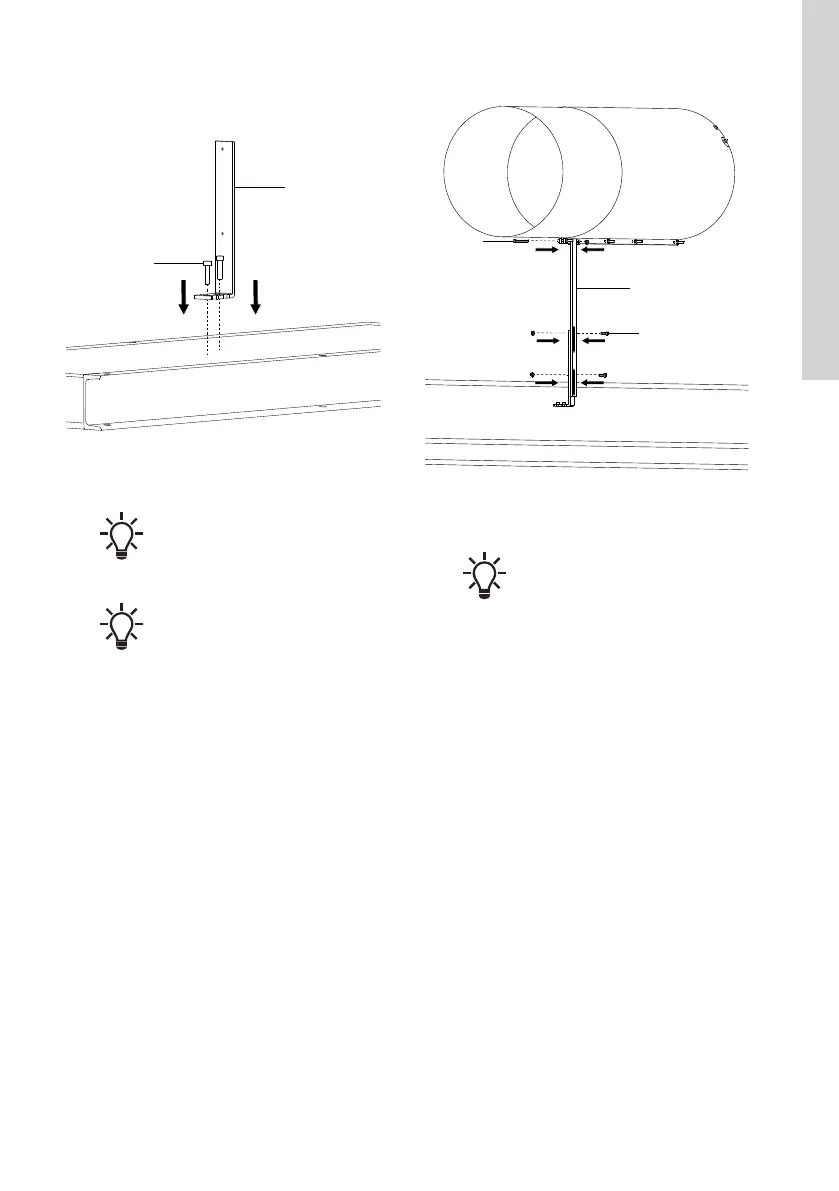

3. Pre-install the supporting foot (7) on the base
frame via bolts (11).
TM081967
Pre-installing the supporting foot
The purpose of pre-installation is to
provide space for adjustment in the
following steps.
Normally, the base frame is a common
base frame for motor and pump. For
separated base frame, install the
supporting foot directly to the concrete
foundation.
4. Pre-install supporting bracket (8) to coupling
guard (4) and supporting foot (7) via bolts (9) (10).
TM081968
Pre-installing supporting bracket
The purpose of pre-installation is to
provide space for adjustment in the
following steps.
5. Adjust the axial position of coupling guard and the
height of supporting bracket. Then fasten the bolts
(9) (10) (11).
6. Adjust the location of coupling guard spacer.
Make sure it can match properly with coupling
guard and motor cover.
1)
The fixing ring of pre-installation is only used in LS
1000-700-X. Align the the notch of fixing ring with
lubricating nipple and install the coupling guard to fixing
ring, then tighten the fasteners.
13
English (GB)
