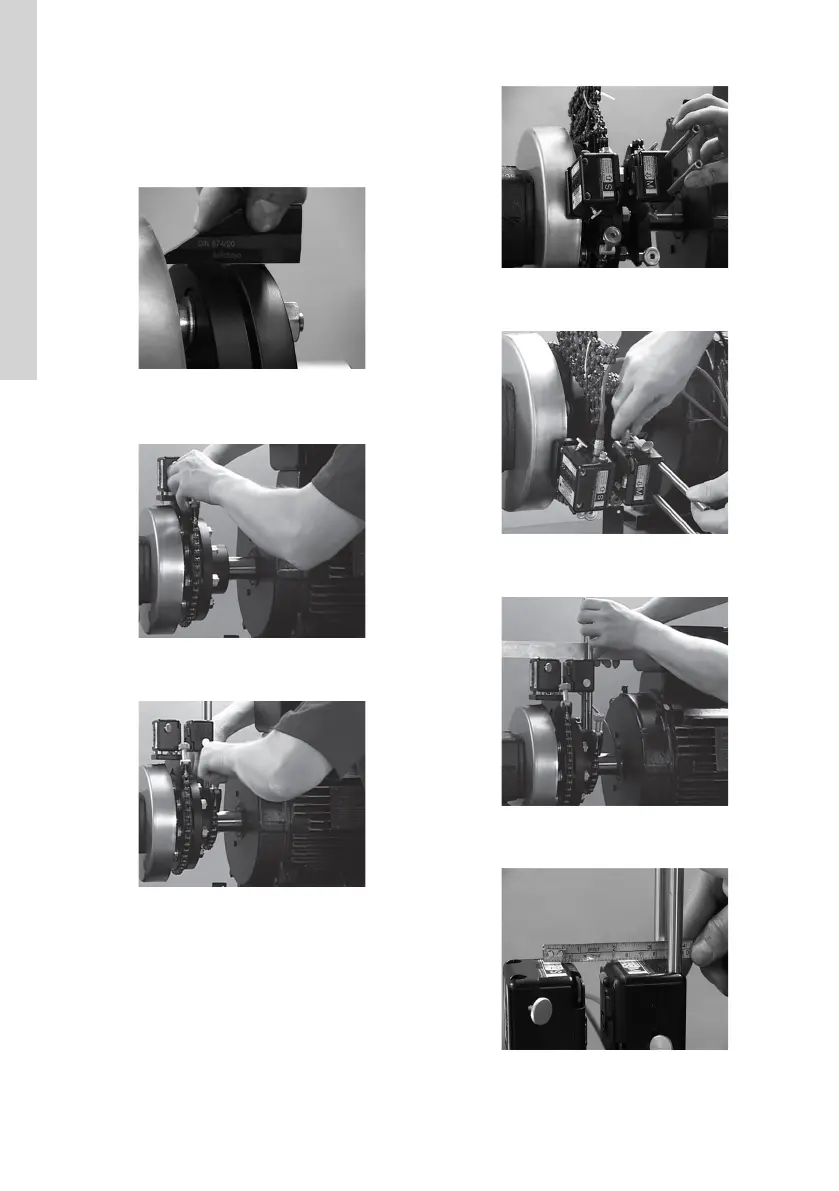

4.5.3 Aligning the pump and motor with a laser
equipment
1. Make a rough alignment of pump and motor, and
tighten the screws in the base frame to the correct
torque.
TM038340
See the table Tightening torques.
2. Fasten one laser bracket to the pump coupling.
TM082478
3. Fasten the other laser bracket to the motor
coupling.
TM082479
4. Place laser unit S, stationary, on the stationary
part and laser unit M, movable, on the movable
part.
TM038305
5. Interconnect the laser units, and connect one
laser unit to the control box.
TM082480
6. Make sure that the laser units are at the same
height.
TM082481
7. Measure the distance between the white lines on
the laser units.
TM038309
