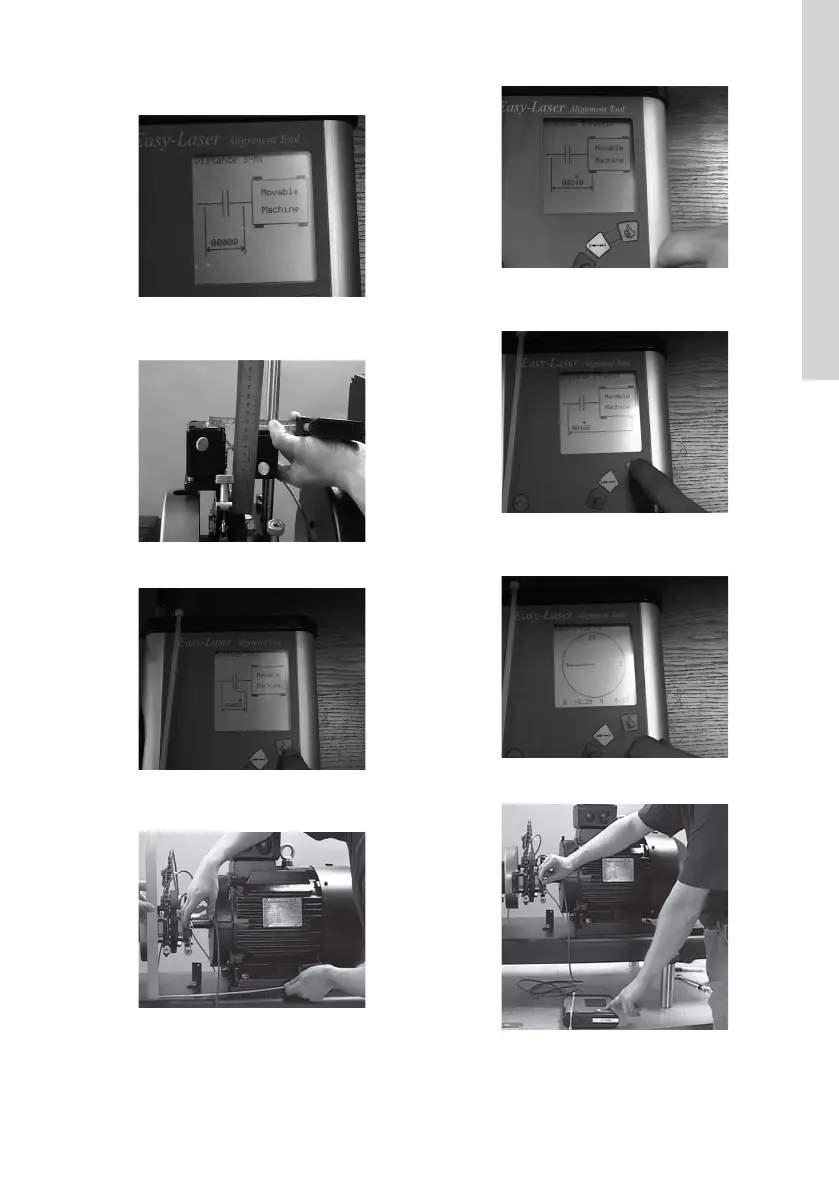

8. Enter the distance.
TM038308
9. Measure the distance between the S unit and the
centre of the gap between the couplings.
TM038310
10. Enter the distance.
TM038311
11. Measure the distance from the S unit to the first
screw on the motor.
TM082482
12.
Enter the distance.
TM038313
13. Measure the distance from the S unit to the rear
screw on the motor.
TM038314
14. The control box shows that the laser units must be
turned to position 9 o'clock.
TM038315
15. Turn the laser units to position 9 o'clock.
TM082483
27
English (GB)

Grundfos LS Specifications

General

Type	Submersible Pump
Protection class	IP68
Frequency	50 Hz
Application	Drainage
Liquid Temperature	0 °C to 40 °C
Seal Type	Mechanical seal
