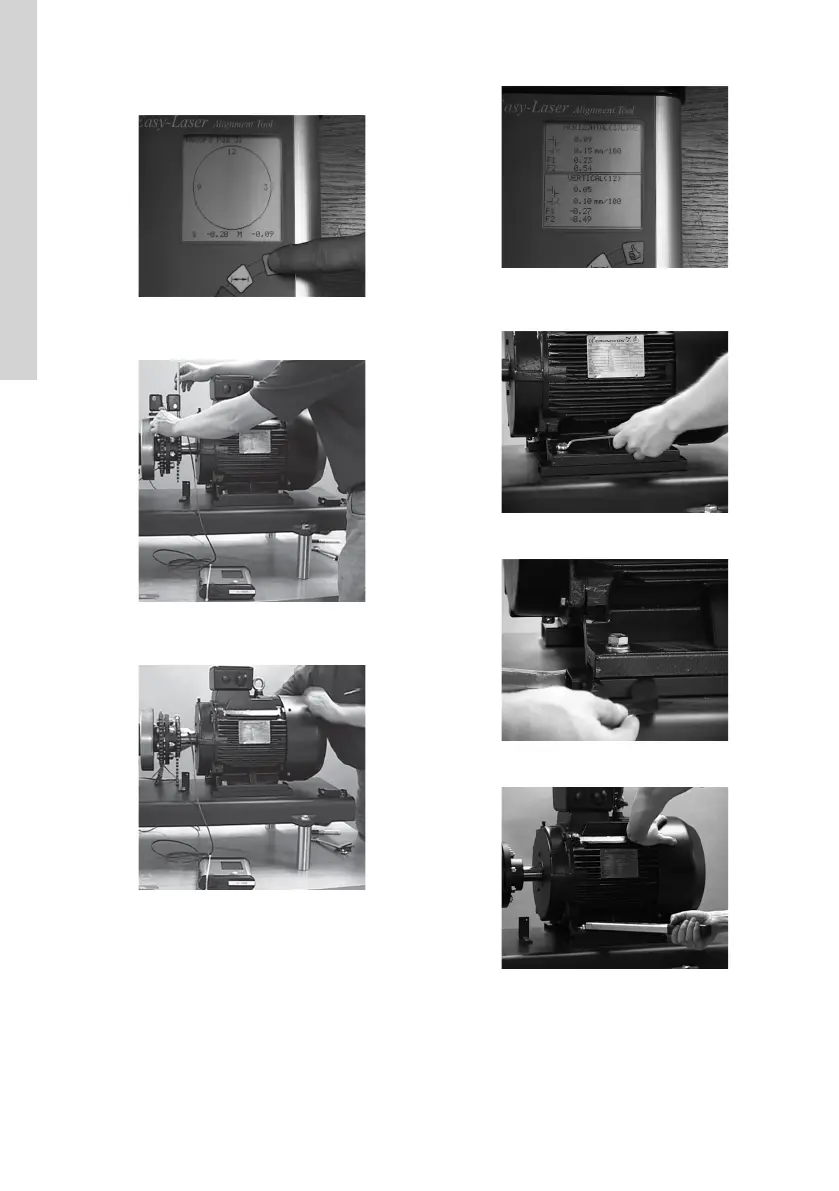

16. Confirm on the control box.
TM038319
17. Turn the laser units to position 12 o'clock. Confirm
on the control box.
TM082484
18. Turn the laser units to position 3 o'clock. Confirm
on the control box.
TM082485
19. If the measured values are less than 0.13 mm, the
alignment is complete. Go to step 24.
TM038320
20. Loosen the screws that hold the motor in
place. Adjust the position of the motor.
TM038321
21. Insert shims with the required thickness.
TM038322
22. Tighten the screws to the correct torque again.
TM038324
